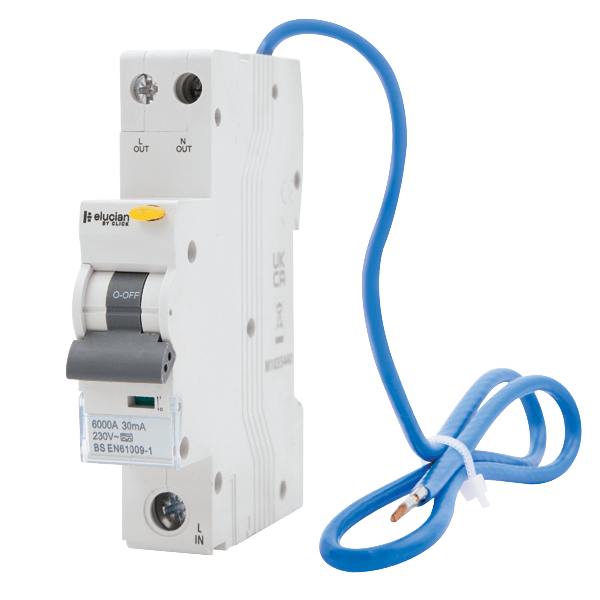

Elucian 1 Pole + Unswitched Neutral True 6Ka B Curve 6-40A 30Ma RCBO (Type A)

Dimensions (mm) 17.8 (W) x 91.8 (H) x 76.6 (D)
Colour Light Grey
Rated Operational Voltage (AC) (Ue) 240
Frequency (Hz) 50/60
Maximum Rated Current (A) (In) 6-40
Rated Breaking Capacity (True kA) (Ics) 6-40
Impulse Withstand Voltage (Uimp) 4000
Endurance Mechanical Operations 20000
Endurance Electrical Operations 5000
Type A
Trip Curve B
Rated Making & Breaking Capacity (A) (lm) 500
Tripping Current (mA) (in) 30
Residual Non-Operating Current (I∆n) 0.5
Trip Type Ground Fault: Electronic/Electromagnetic
Over Current: Thermal/Magnetic
Device Terminals Screwed Lug & Pin
Number Of Poles 1P + Unswitched Neutral
Input Terminal Capacity - Flexible (mm²) 25
Input Terminal Capacity - Rigid (mm²) 32
Input Terminal Torque (Nm) 2
Output Terminal Capacity - Flexible (mm²) 16
Output Terminal Capacity - Rigid (mm²) 25
Output Terminal Torque (Nm) 1.2
Circuit Protection Earth fault, overcurrent & short-circuit
Neutral Tail Length (mm) 450
Ingress Protection IP20
Operational Temperature (°C) -25 to +40
Warranty (Years) 3
Standards BS EN 61009-1
