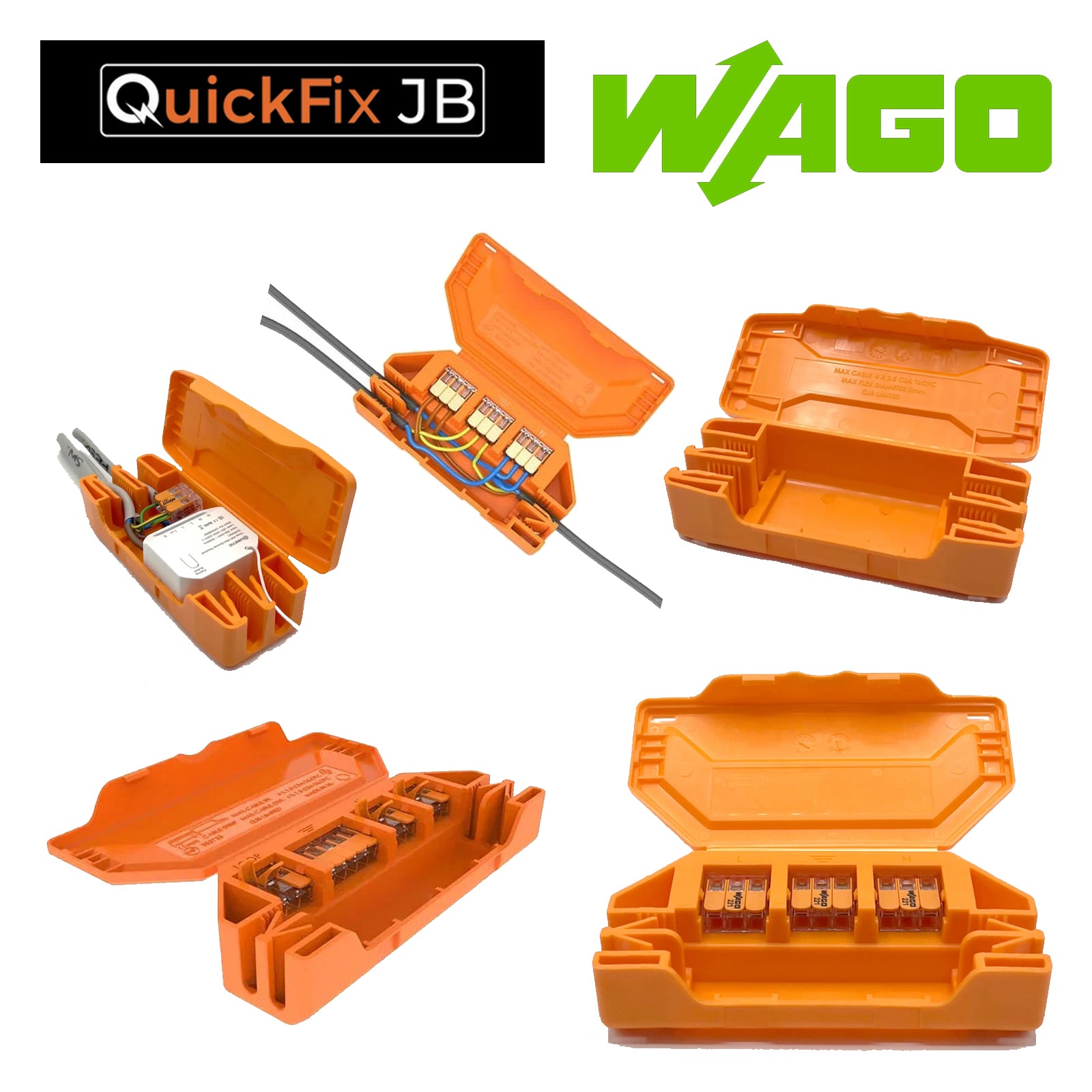

Quickfix Maintenance Free Junction Boxes with 221 Series Wago Connectors

3-5 Days Delivery

Next day option available at check-out (If ordered before 2pm, excludes weekends)

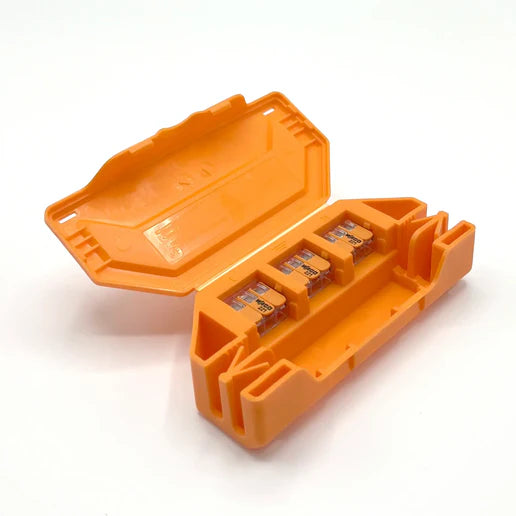

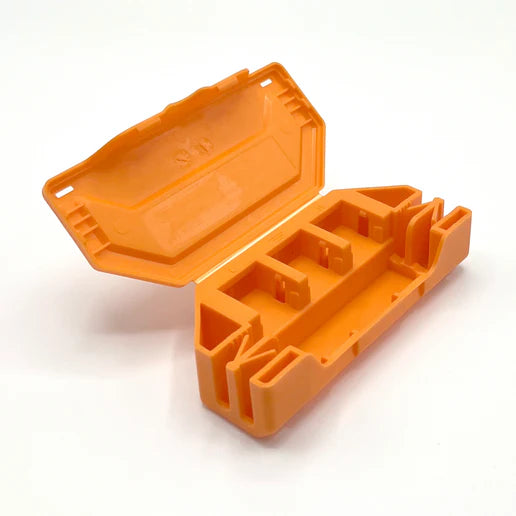

The QUICKFIX JB-3 is designed for use with Wago 221 series connectors.

Quickfix JB-3 16A Junction Box with 221 Series Wago Connectors Features & Benefits:

• Designed for WAGO 221 series connectors, cable sizes 1.0MM, 1.5MM & 2.5MM T&E, and 0.75MM & 1MM Flex cable.
• Can handle up to 16 amps.
• Complies with BS5733 & 18th Edition Wiring Regulations.
• High-Quality Polypropylene Material.
• Flame Retardant EN60598.
• Designed for Loop IN system.
• Internal Space to Retain Excess Cable Length.
• Quick & Secure Cable Slot.
• Complies with IP20 Standards.
• No Screwdriver Required.
• Easy Multi meter Probe Access to Connector Terminals.
• Dimensions: L 113.5mm, W 60mm, Depth 28mm

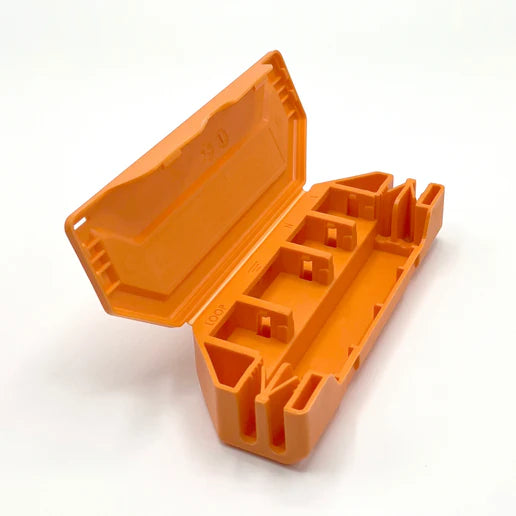

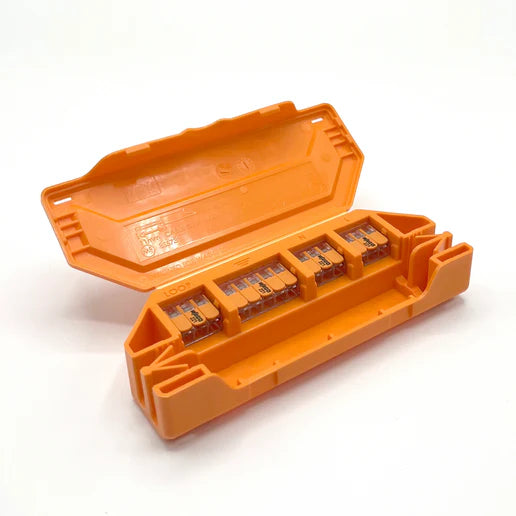

Quickfix JB-4 16A Junction Box with 221 Series Wago Connectors Features & Benefits:

• Designed for WAGO 221 series connectors, cable sizes 1.0MM, 1.5MM & 2.5MM T&E, and 0.75MM & 1MM Flex cable.
• Can handle up to 16 amps.

• Complies with BS5733 & 18th Edition Wiring Regulations
• High-Quality Polypropylene Material:
• Flame Retardant EN60598:
• Designed for Loop IN & 3 Plate Wiring:
• Designed for Use with WAGO 221 Series Connectors.
• Maintenance-Free Junction Box.
• Internal Space to Retain Excess Cable Length.
• Quick & Secure Cable Slot.
• Complies with IP20 Standards.
• No Screwdriver Required.
• Easy Multimeter Probe Access to Connector Terminals.
• Made in UK.
• Dimensions: L 113.5mm, W 58mm, Depth 28mm

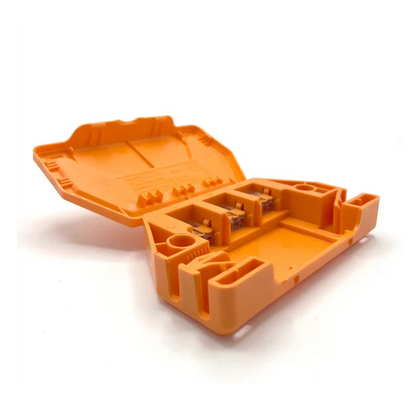

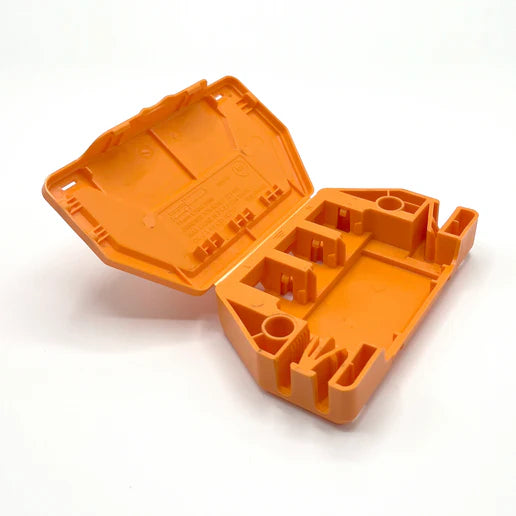

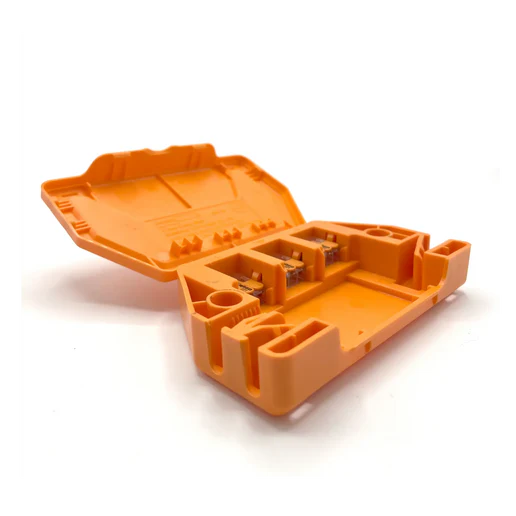

Quickfix JB-32 32A Junction Box For Use With 221 Series Wago Connectors Features & Benefits:

• Designed for WAGO 221 series connectors, cable sizes 1.0MM, 1.5MM & 2.5MM T&E, and 0.75MM & 1MM Flex cable.
• Can handle up to 32 amps.
• Meets BS5733 & 18th Edition Wiring Regulations.
• High-quality polypropylene for durability.
• Flame retardant to EN60598 standards.
• Quick & secure cable slot, unrestricted access to connector terminals, space for optional zip tie safety tabs, and designed for Loop IN System wiring.
• No screwdriver required; easy multi-meter probe access.
• IP20 compliant for indoor use.
• Provides easy multi-meter probe access to connector terminals.
• Unrestricted access to the connector terminal for wire installation
• Space for zip-ties safety tabs! (Optional)
• Designed & Manufactured in the UK
• Dimensions: L 132mm, W 80mm, Depth 30mm.
• Origin: Designed and manufactured in the UK.

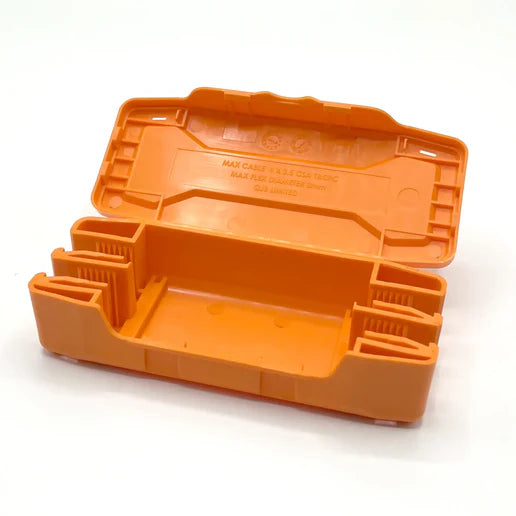

Quickfix JB-U 20A Universal Junction Box Features & Benefits:

•  Designed for use with multi connectors, cable sizes 1.0MM, 1.5MM & 2.5MM T&E, and 0.75MM & 1MM Flex cable.
•  Can handle up to 20 amps.
•  Meets BS5733 & 18th Edition Wiring Regulations.
•  High-quality polypropylene for durability.
•  Flame retardant to EN60598 standards.
• Quick & secure cable slot, unrestricted access to connector terminals, and optional zip tie safety tabs.
• No screwdriver required.

• IP20 compliant for indoor use.
• L 130mm, W 55mm, Depth 32mm.
• Designed and manufactured in the UK.
