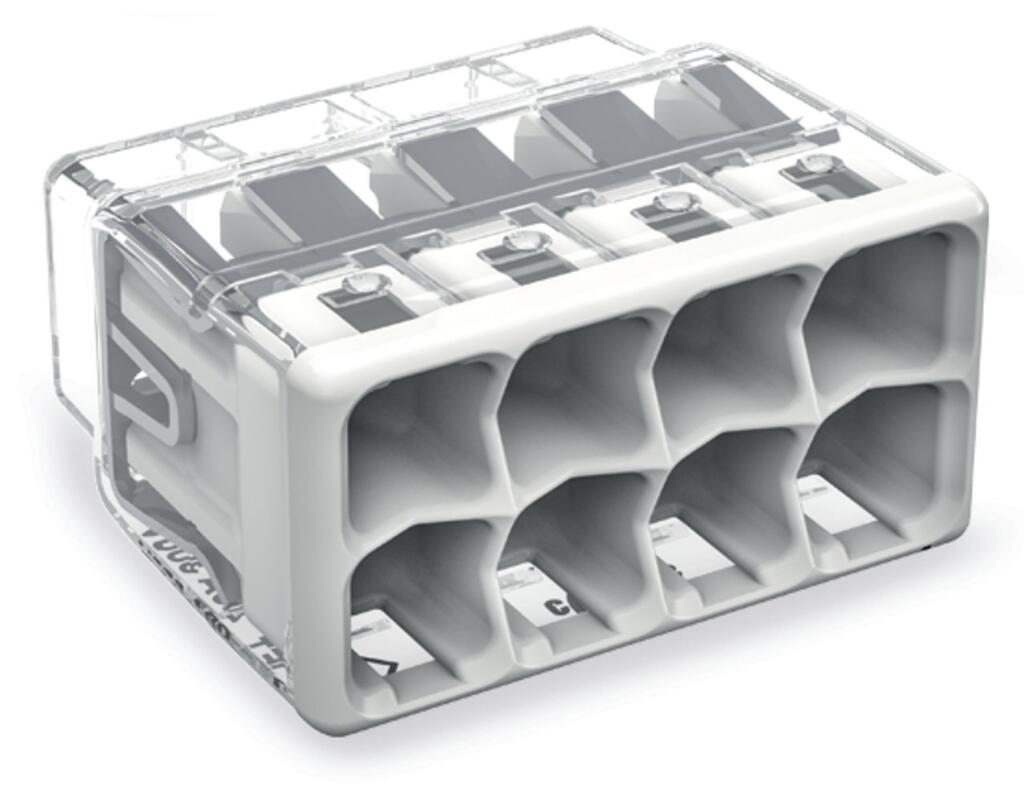

Wago 2773-408 32A 4mm² 8-Conductor Push Wire Splicing Connectors (Pack of 40)

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Wago 2773-408 32A 4mm² 8-Conductor Push Wire Splicing Connector Features & Benefits:

• Convenient wiring via extremely compact design
• Push-in termination of up to eight solid and stranded conductors
• Conductor range: 0.75 … 4 mm² “s“ and 1.5 … 4 mm² “st“
• Any combination of conductor sizes is possible
• PUSH WIRE® connection terminates solid (“s+str”) copper conductors

Wago 2773-408 32A 4mm² 8-Conductor Push Wire Splicing Connector Specifications:

Clamping units 8
Total number of potentials 1

Connection technology PUSH WIRE®
Actuation type Push-in
Connectable conductor materials Copper
Solid conductor 0.75 … 4 mm² / 20 … 12 AWG
Stranded conductor 1.5 … 4 mm² / 18 … 12 AWG
Conductor diameter 1.6 … 2 mm / 20 … 12 AWG
Strip length 13 mm / 0.51 inches
Wiring direction Side-entry wiring

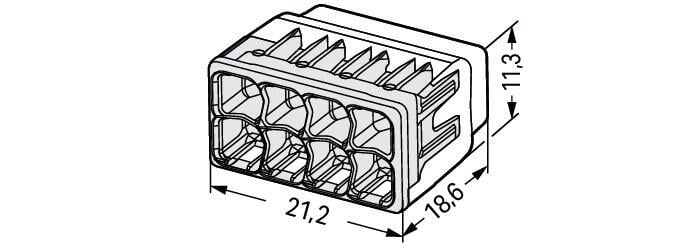

Width 21.2 mm / 0.835 inches
Height 11.3 mm / 0.445 inches
Depth 18.6 mm / 0.732 inches

Colour transparent
Cover color white
Material group IIIa
Insulation material (main housing) Polycarbonate (PC)
Flammability class per UL94 V2
Clamping spring material Chrome-nickel spring steel (CrNi)
Contact material Electrolytic copper
Contact Plating Tin
Fire load 0.071 MJ
Weight 3.4 g

Ambient temperature (operation) +85 °C
Processing temperature -35 … +60 °C
Continuous operating temperature -40 … +105 °C
Temperature marking per EN 60998 T85

ETIM 9.0 EC000446
ETIM 8.0 EC000446
PU (SPU) 400 (40) pcs
Packaging type Box
Country of origin DE
GTIN 4055143927192
Customs tariff number 85369010000

RoHS Compliance Status Compliant, No Exemption
