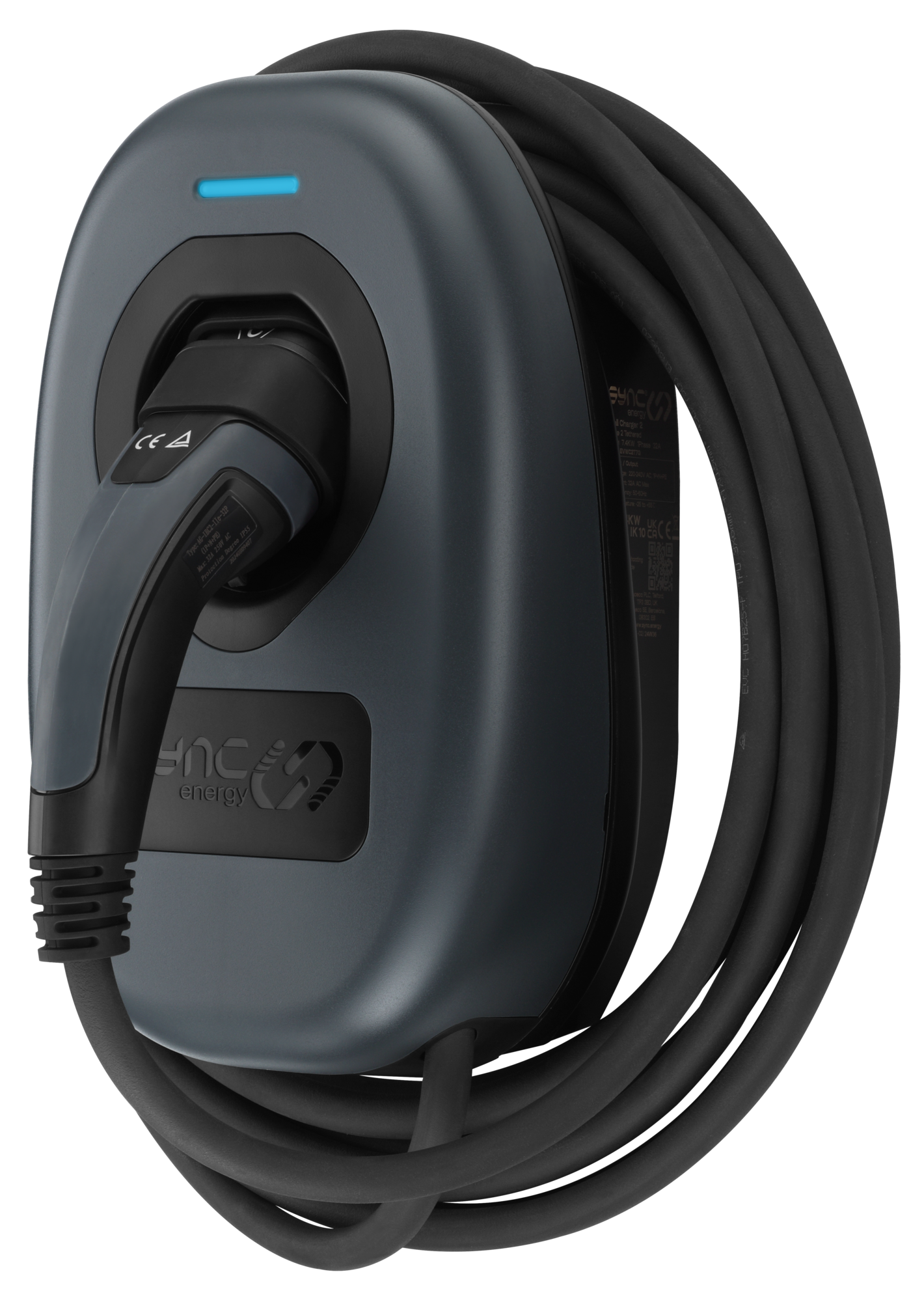

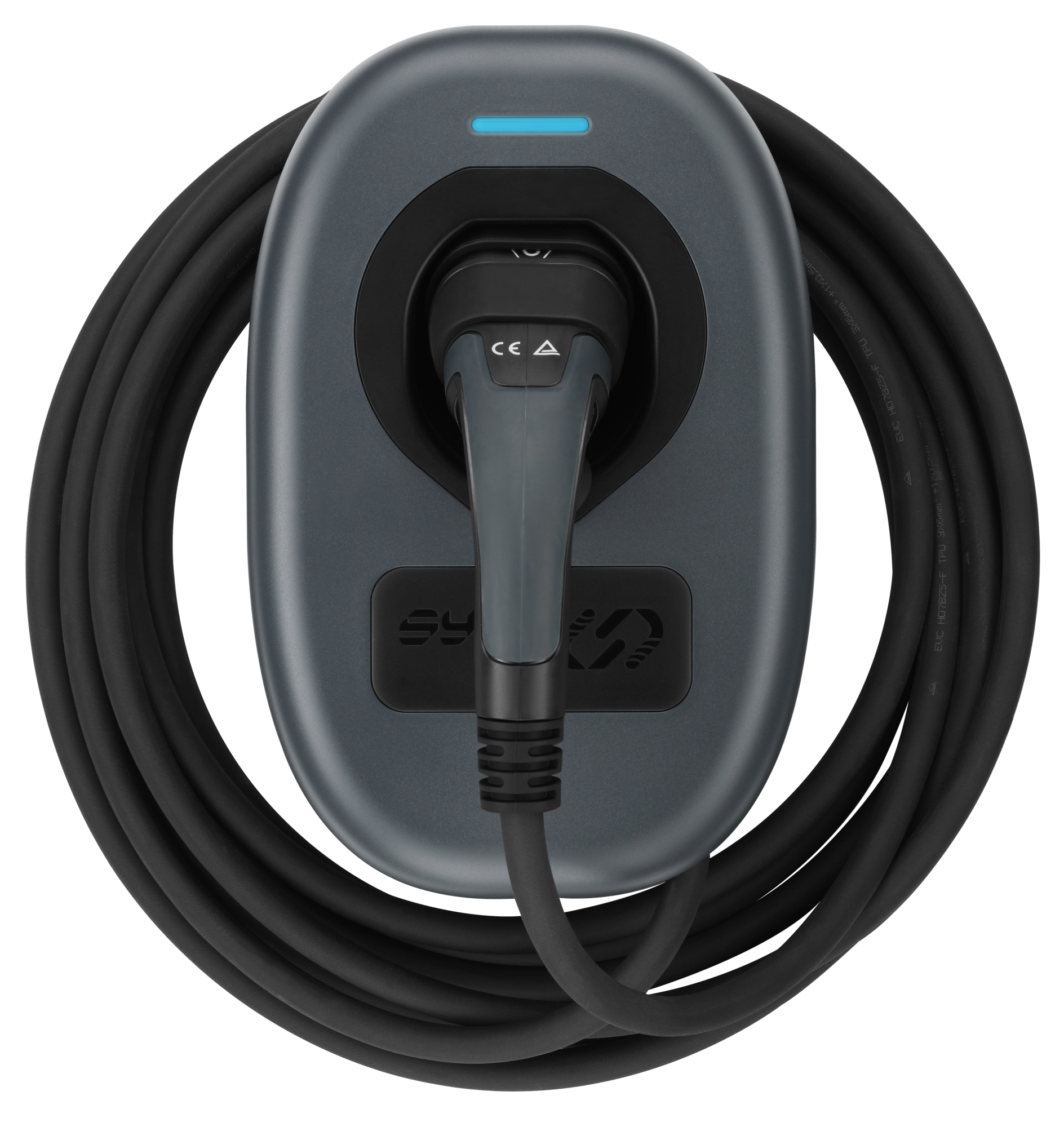

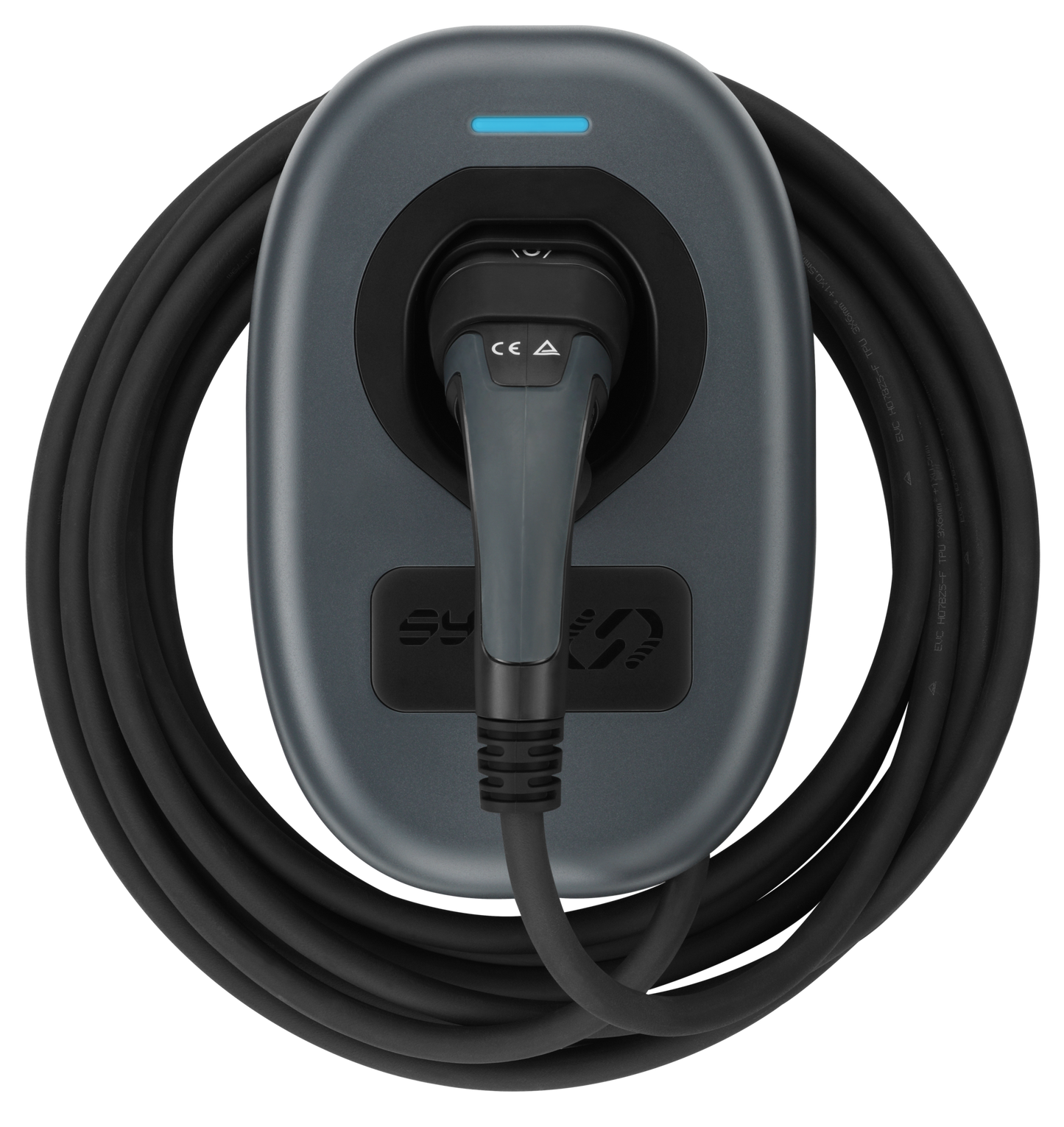

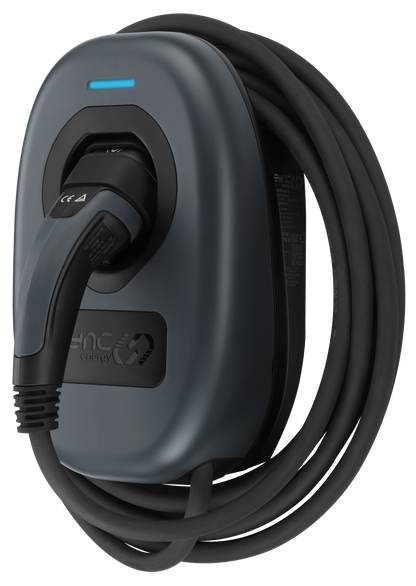

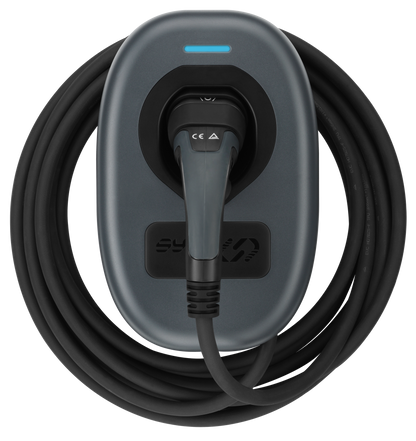

BG SyncEV 7.4kW Single Phase EV Charger Type 2 Tethered with Wi-Fi and LAN

BG SyncEV 7.4kW Single Phase EV Charger Type 2 Tethered with Wi-Fi and LAN

£358.49 GBP
£358.49 GBP
Sale Sold out
Tax included.

*Free next day delivery*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

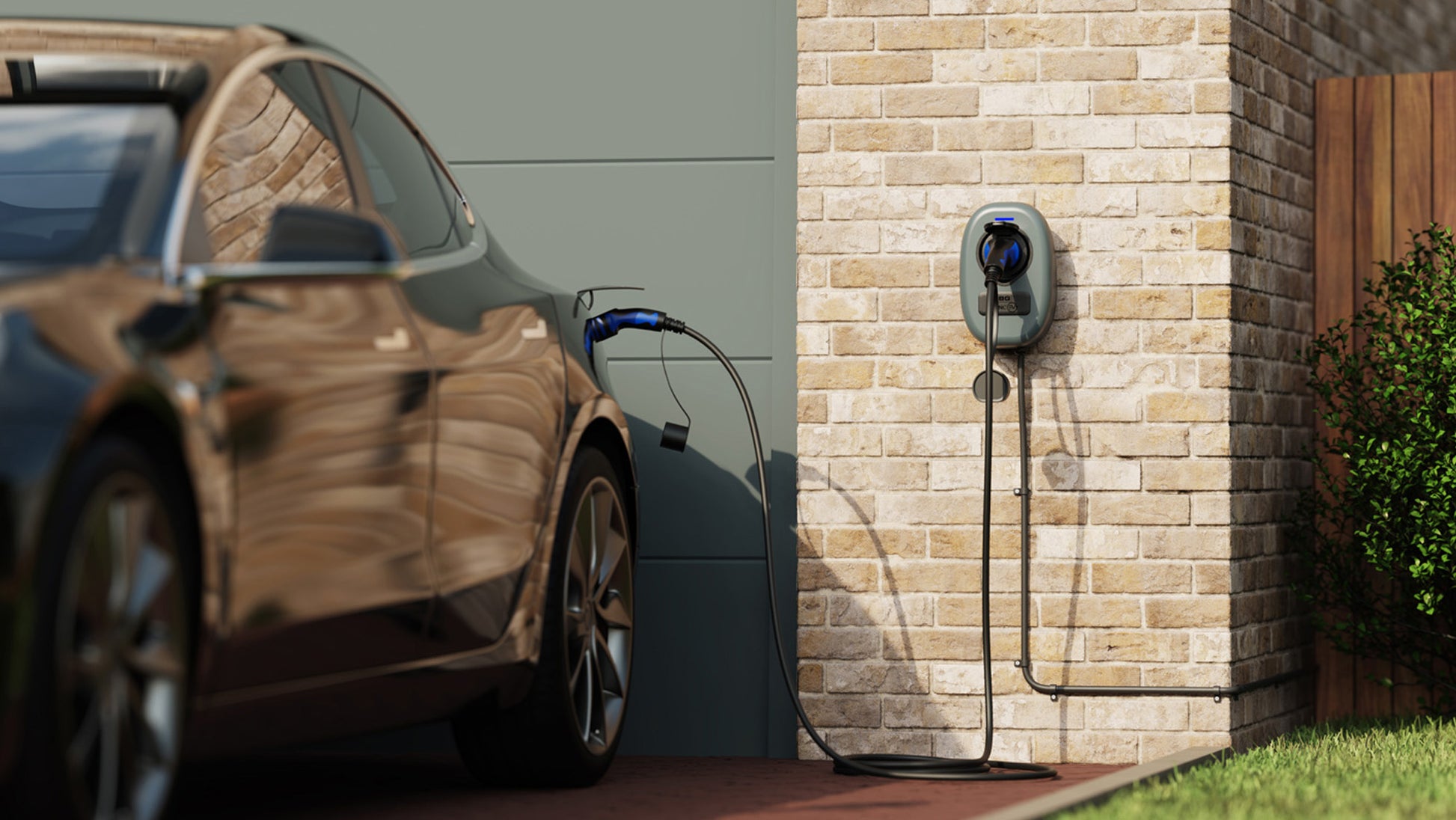

The smart way to charge at home

Packed with Smart technology, Sync Energy charging stations perfectly complement your electric vehicle (EV).



BG SyncEV 7.4kW Single Phase EV Charger Type 2 Tethered with Wi-Fi and LAN Features & Benefits:

  • Compatible with all electric and hybrid plug-in vehicles
  • Auto Solar Charging allowing you to utilise excess solar power to charge your EV, maximising the benefits of clean, renewable energy while reducing your energy bills.
  • Tariff Sense – Our energy management feature.
    Tariff Sense connects to any UK tariff*, giving real-time insights and control over charging costs.
  • Models with Wi-Fi/LAN, Wi-Fi/LAN/4G, Wi-Fi/LAN/4G+RFID
  • Fully compliant with The Electric Vehicles (Smart Charge Points) Regulations 2021, including Schedule 1
  • Full Smart functionality via Sync Energy App and OCPP 1.6J connectivity
  • Dynamic charging – up to 7.4 (32A)
  • No earth rod required – integrated open PEN conductor protection
  • Safe – integrated 30mA Type A RCD with 6mA DC
  • OCPP 1.6J connectivity – free lifetime over-the-air updates
  • Type 2 socket with auto-lock
  • Socketed version also available

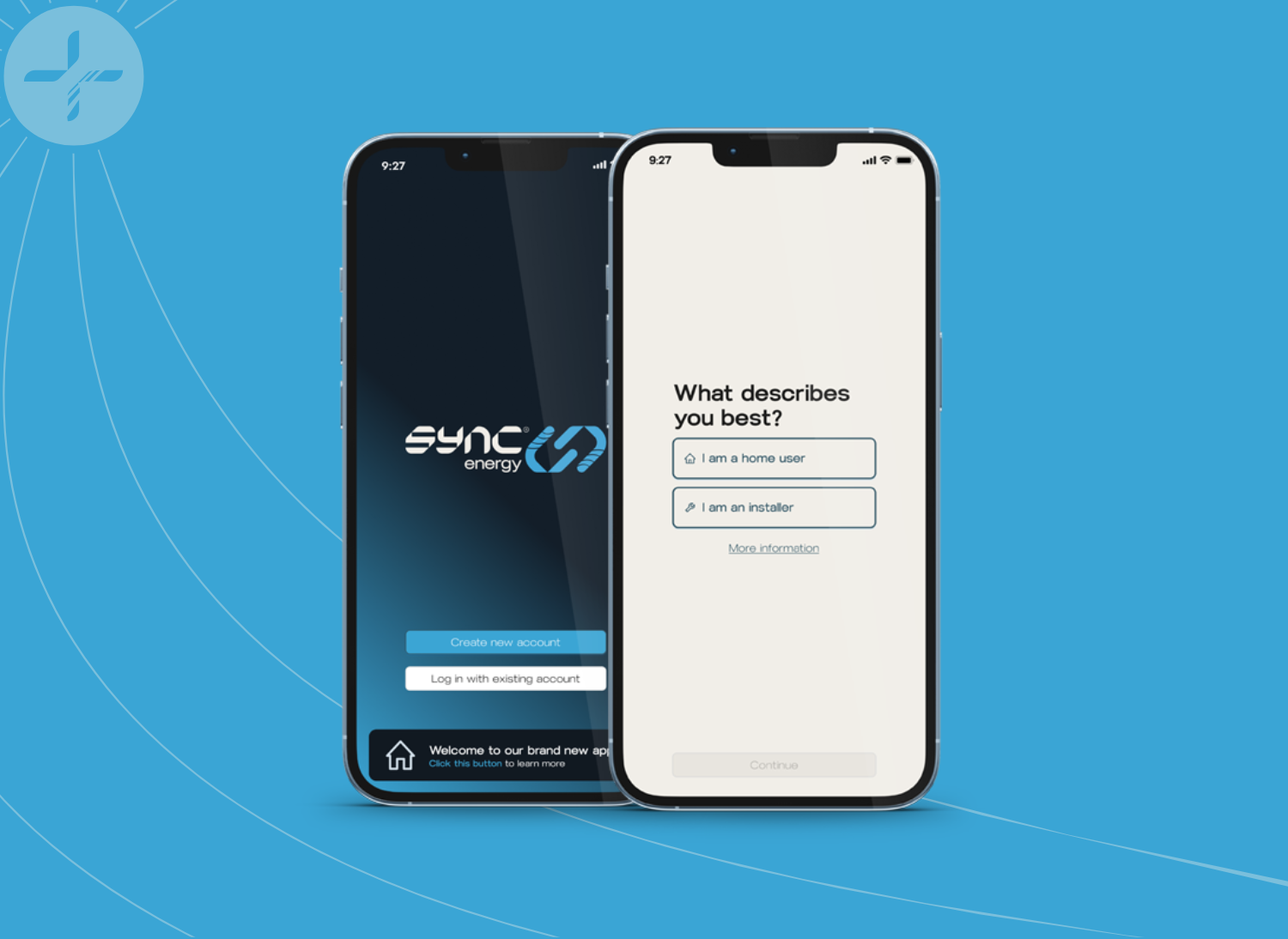

The Sync Energy app

Delivering a smarter, more efficient EV charging experience.

Intuitive App for Complete Control Easily start, stop, or schedule charging sessions from your smartphone with just a few taps, managing your charging has never been more convenient.

Streamlined Installation A single app from installation to day-to-day use with a smooth handover from the installer to end-user, ensures that you'll be up and running in no time.

Auto Solar Charging Make the most of your renewable energy by utilising excess solar power to charge your EV, ensuring you maximise the benefits of clean, renewable energy while reducing your energy bills.

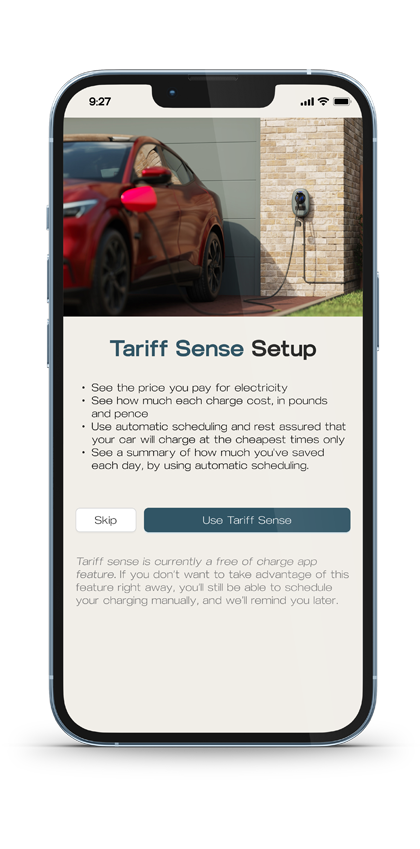

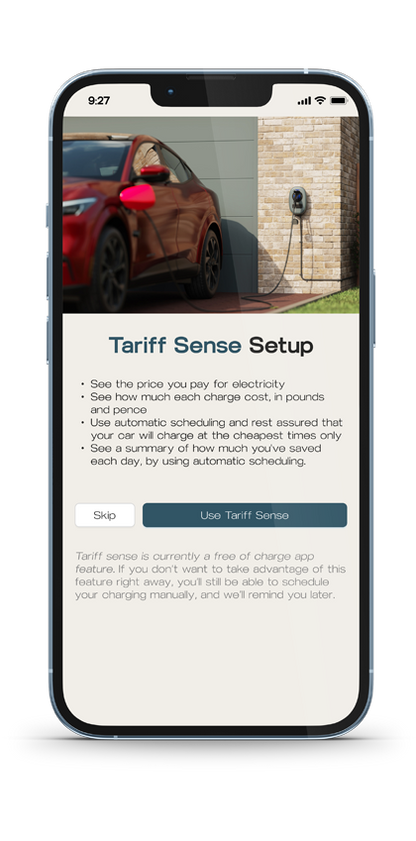

Tariff Sense

Unlock the full potential of intelligent charging with our premium energy management feature. Tariff Sense connects to any UK tariff*, giving you real-time insights and control over your charging costs.

  •  See the price you pay for electricity, even if it changes throughout the day
  •  Let Tariff Sense automatically choose the cheapest times to charge.
  •  See the cost of each charge and the savings

*excludes Tariffs where you grant your energy supplier explicit control over your device



BG SyncEV 7.4kW Single Phase EV Charger Type 2 Tethered with Wi-Fi and LAN Specifications:

CODES :

EVWC2T7G (7.4KW / WI-FI / LAN)

TYPE :

TETHERED

PLUG / CABLE:

TYPE 2 PLUG, 7.5 METRE, BLACK

KW :

7.4KW 32A MODE 3

MIN CHARGE CURRENT :

CONFIGURABLE, 6 - 32A

ELECTRICAL INPUT :

220-240V, 50-60Hz, SINGLE PHASE

COLOUR :

BASE & TRIM - RAL 9005 (BLACK)

BODY - RAL 7016 (ANTHRACITE GREY)

OPTIONAL COLOURED TRIMS AVAILABLE AS ACCESSORIES

CABLE MANAGEMENT :

BUILT IN CABLE WRAP & GUN HOLSTER

PEN PROTECTION :

YES, IN-BUILT EARTH DISCONNECTION

EARTH ROD :

NOT REQUIRED

RCD PROTECTION :

YES, 6mA DC, 30mA AC TYPE-A, IN-BUILT

OVERLOAD AND FAULT PROTECTION :

OVER CURRENT AND FAULT PROTECTION

ELECTRICAL CLASS :

CLASS 1, HOUSING CLASS 2

LOAD BALANCING :

SUPPLIED WITH LOAD MANAGEMENT KIT

METER ACCURACY :

2% CLASS C EQUIVALENT INTERNAL METER WITH OPTION FOR CONNECTION TO EXTERNAL RS485 MODBUS METER

CONSUMER UNIT REQUIREMENTS :

40A MCB OR 30mA TYPE-A RCD (DEPENDENT ON CABLE TYPE &/OR ROUTE)

TERMINALS :

COMBI SCREW FIRST FIX PLUG CONNECTOR

INDICATOR :

RGB LED AND BUZZER

INDICATOR MODES :

BLUE - STANDBY, FLASHING BLUE - PREPARING, GREEN - CHARGING, YELLOW - NO NETWORK, RED - ERROR

HOUSING :

UV STABILISED POLYCARBONATE

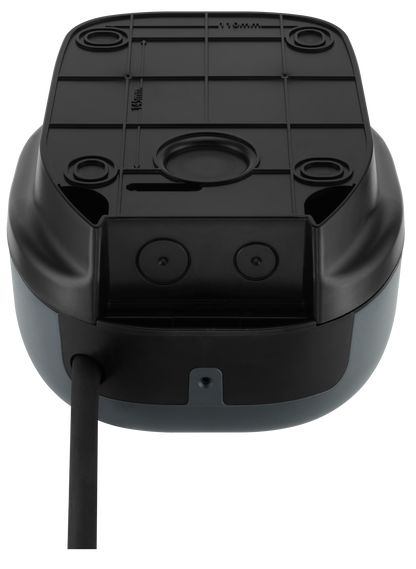

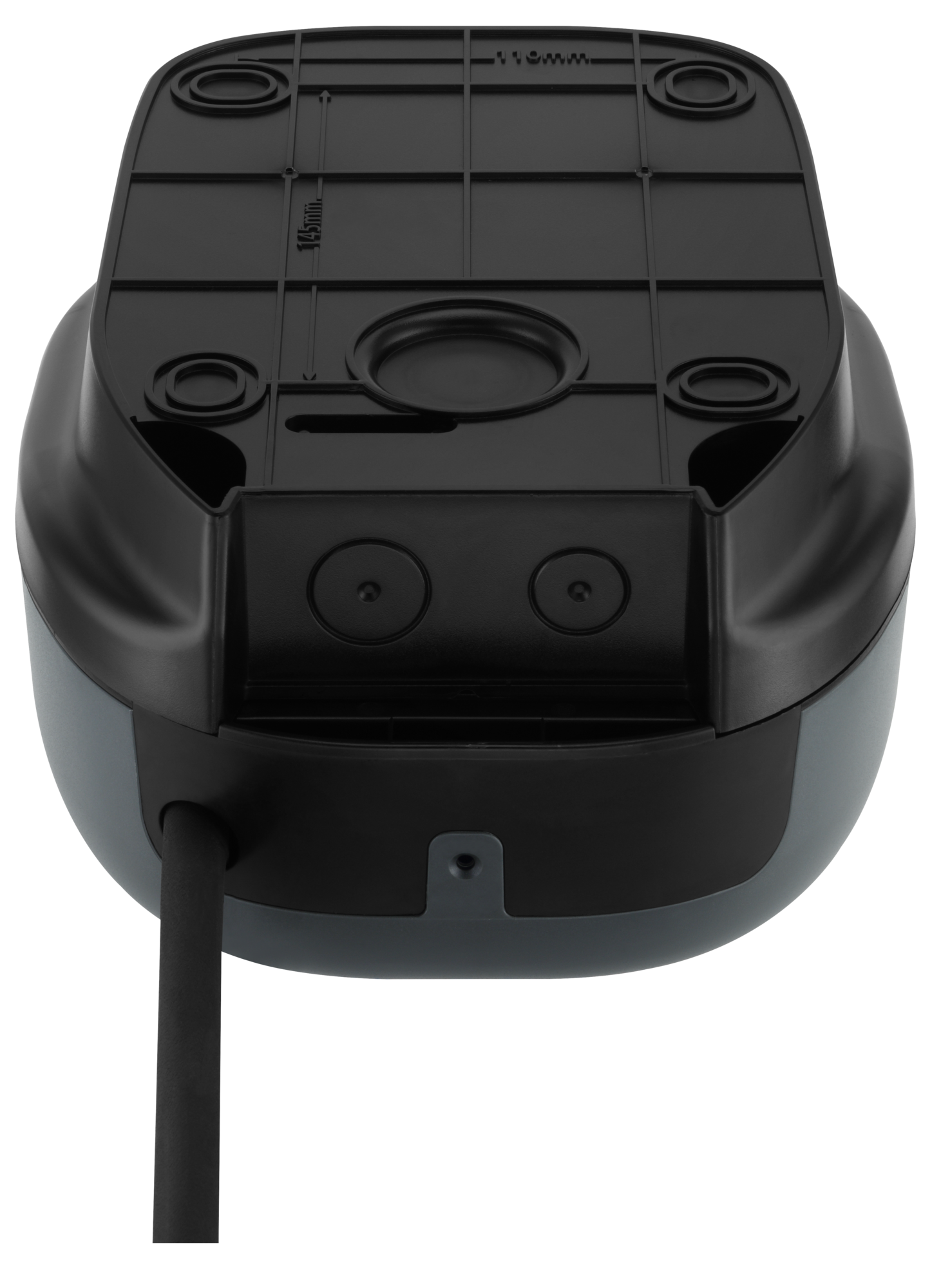

WALL FIXING :

4 POINT WITH HORIZONTAL AND VERTICAL ADJUSTMENT, SUPPLIED FIXING HOLE TEMPLATE. FIXING HOLE CENTRES :110 HORIZONTAL, 145 VERTICAL (MM)

IP / IK RATING :

IP65 / IK10

SOC MODULE :

AI ESP32-S SOC

WI-FI & ETHERNET :

2.4Ghz 802.11 B/G/N & RJ45

WI-FI SECURITY :

WPA/WPA2/WPA2-ENTERPRISE/WPS

BLUETOOTH :

4.2 BR/EDR and BLE

CONNECTION PROTOCOL :

OCPP 1.6J

4G DATA :

N/A

APP :

SYNC ENERGY

OPERATING TEMP :

-25 TO +40°C

SOFTWARE & FIRMWARE UPDATE :

OVER-THE-AIR

WARRANTY :

3 YEARS

STANDARDS & APPROVALS :

IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, CE, UKCA, THE ELECTRIC VEHICLES (SMART CHARGE POINTS) REGULATIONS 2021 INCLUDING SCHEDULE 1

SUPPLIED ACCESSORIES :

5x BASE FIXING WASHERS,5x ASSEMBLY LID BOLTS, 1x BLANKING PLUG AND 1x 25MM COMPRESSION GLAND, USER-SIDE CONNECTOR, CORD GRIP AND 2x CORD GRIP ASSEMBLY SCREWS

DIMENSIONS (MM) :

305 (H) x 201 (W) x 115 (D)

ADDITIONAL :

ANTI TAMPER DETECTION - 2 LAYER PROTECTION, BLUETOOTH TO BLUETOOTH COMMISSIONING

ACCESSORIES :

SINGLE CHARGER STAND(EVASTAND12S)

TWIN CHARGER STAND(EVASTAND12T)

COMPATIBLE WITH EV-TOWER STANDS WITH BG SYNCEV MOUNTING PLATE

LOAD MANAGEMENT KIT(EVA120CT1)

CHARGING CABLES

COLOURED TRIMS(VARIOUS OPTIONS)
