Click Flow CT101C 250V 20A 3 Pole Complete Connector

3-5 Days Delivery.

Click CT101C 250V 20A 3 Pole Complete Pull Apart Flow Connector Specifications:

CT100F Dimensions (mm) 68 (W) x 40 (D) x 22 (H)
CT101M Dimensions (mm) 52 (W) x 30 (D) x 22 (H)
Minimum Aperture Diameter (mm) 46
Materials Cover: Polycarbonate Base, Terminals: Silver Plated Brass
Operating Voltage (AC) 250

Frequency (Hz) 50
Resistive Load Rating (A) 20
Rated Impulse Voltage (kV) 4
Recommended Inner Core Strip Length (mm) Male: L&N: 20; E: 28; Female: L&N: 35; E: 43
Recommended Conductor Strip Length (mm) 10
Termination Type Screw
Terminal Size (mm) Ø4.2

Terminal Torque Value (Nm) 0.8
Terminal Capacity - Solid (mm²) 3 x 2.5
Terminal Capacity - Flex (mm²) 3 x 1.5

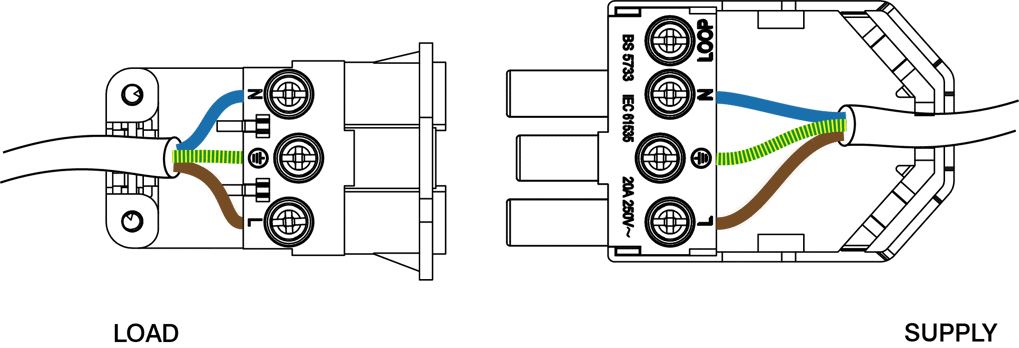

Termination Layout (Male) (CT101M) N - E - L
Termination Layout (Female) (CT100F) L - E - N - Loop
Cable Restraint Supplied On Male Only
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 20

Standards BS 5733
