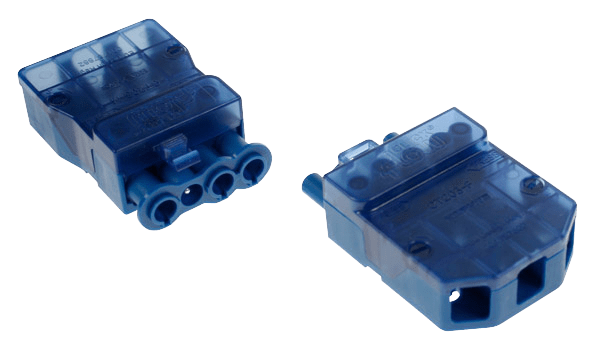

Click Flow CT203C 250V 20A 4 Pole Complete Connector (Fast-Fit Cable Clamps)

3-5 Days Delivery.

Click CT203C 250V 20A 4 Pole Complete Pull Apart Flow Connector (Fast-Fit Cable Clamps) Specifications:

CT203F Dimensions (mm) 75 (W) x 50 (D) x 25 (H)
CT203M Dimensions (mm) 73 (W) x 50 (D) x 25 (H)
Minimum Aperture Diameter (mm) 55
Materials Cover: Polycarbonate, Terminals: Silver Plated Brass
Operating Voltage (AC) 250

Frequency (Hz) 50
Resistive Load Rating (A) 20
Rated Impulse Voltage (kV) 4
Recommended Inner Core Strip Length (mm) L & N: 35; E: 43
Recommended Conductor Strip Length (mm) 10
Termination Type Screw
Terminal Size (mm) Ø4.2

Terminal Torque Value (Nm) 0.8
Terminal Capacity - Solid (mm²) 3 x 2.5
Terminal Capacity - Flex (mm²) 3 x 1.5

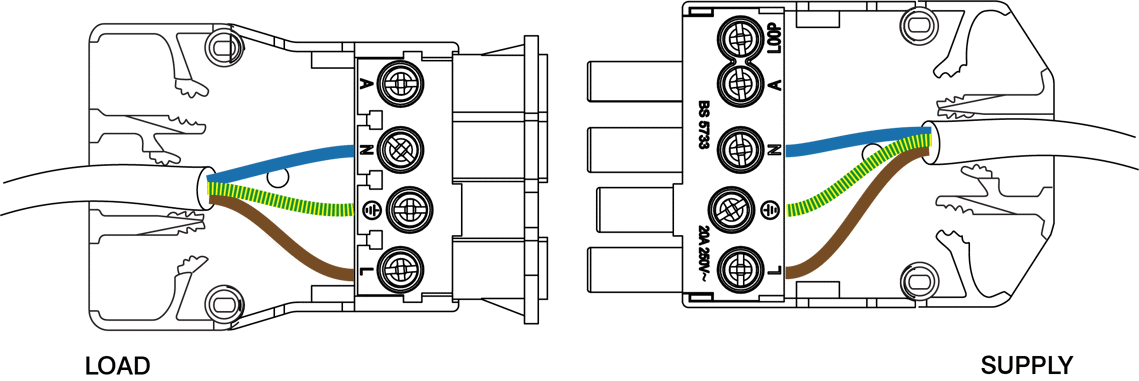

Termination Layout (Male) (CT203M) A - N - E - L
Termination Layout (Female) (CT203F) L - E - N - A - Loop
Cable Restraint Supplied Yes
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 20
Standards BS EN 61535, BS 5733
