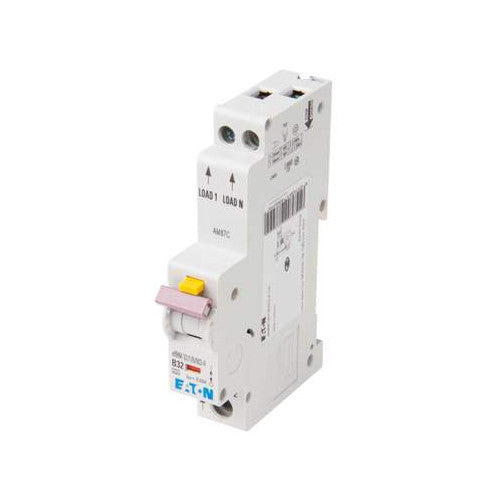

Eaton EMBH132R30C Moeller series xPole 32A 30mA SP B Curve Type A RCBO
Eaton EMBH132R30C Moeller series xPole 32A 30mA SP B Curve Type A RCBO
Regular price
£39.00 GBP
Regular price
Sale price
£39.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
*Free next day delivery for orders over £200*
(Orders must be placed before 2pm, excludes weekends)
The EMBH132R30C is an Eaton Moeller series xPole - eRB6/M RCBO - residual-current circuit breaker with overcurrent protection..
Eaton EMBH132R30C Moeller series xPole 32A 30mA SP B Curve RCBO Features & Benefits:
- Designed for Memshield 3 Distribution Boards.
- Allows for both overcurrent protection and earth fault current protection in a single unit.
- Includes 'On' and 'Off' indicators.
Eaton EMBH132R30C Moeller series xPole 32A 30mA SP B Curve RCBO Specifications:
-
Product Name Eaton Moeller series xPole - eRB6/M RCBO - residual-current circuit breaker with overcurrent protection
Catalog Number EMBH132R30C
Model Code eRBM-32/1/B/003-A
EAN 4015081489398
Product Length/Depth 216 mm
Product Height 72 mm
Product Width 17.5 mm
Product Weight 0.205 kg
Compliances CE Marked
RoHS conform Certifications CE -
Type RCBO
Application Switchgear for residential and commercial applications
Voltage rating 240 V - 240 V
Surge current capacity 0.25 kA
Voltage type AC
Width in number of modular spacings 1 -
Operating ambient temperature - max 40 °C
Operating ambient temperature - min -25 °C
Product application Switchgear for residential and commercial applications
Rated current 32 A
Built-in depth 69.5 mm
Current limiting class 3
Rated short-circuit breaking capacity (EN 60947-2) 0 kA
Ambient operating temperature - max 40 °C
Ambient operating temperature - min -25 °C
Fault current rating 0.03 A
Number of poles (protected) 1
Number of poles (total) 1
Rated operational voltage (Ue) - max 240 V
Rated short-circuit breaking capacity (IEC 60947-2) 0 kA
Basic function Combined RCD/MCB devices
Rated impulse withstand voltage (Uimp) 4 kV
Degree of protection IP20
Overvoltage category III
Pollution degree 2
Leakage current type A
Release characteristic B
Frequency rating 50/60 Hz
Rated insulation voltage (Ui) 500 V
Connectable conductor cross section (solid-core) - min 1 mm²
Connectable conductor cross section (solid-core) - max 25 mm²
Connectable conductor cross section (multi-wired) - min 1 mm²
Connectable conductor cross section (multi-wired) - max 25 mm²
Rated short-circuit breaking capacity (EN 61009) 10 kA
Rated short-circuit breaking capacity (EN 61009-1) 10 kA
Number of poles Single-pole
Disconnection characteristic Undelayed
