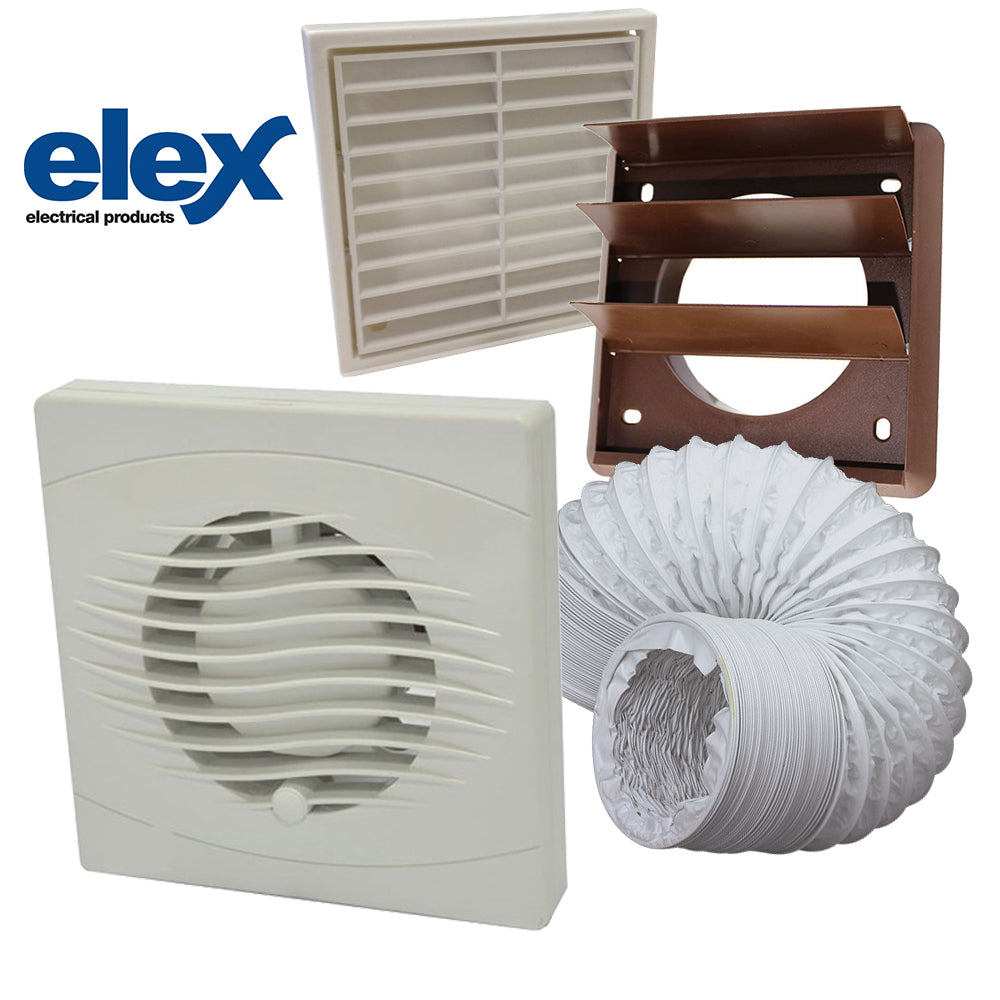

ELEX/Manrose 4"(100mm)/6"(150mm), Standard Timer Pullcord & Humidistat Fan Kits

These products are made by Manrose, based on original XF range and rebranded as Elex.

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends)

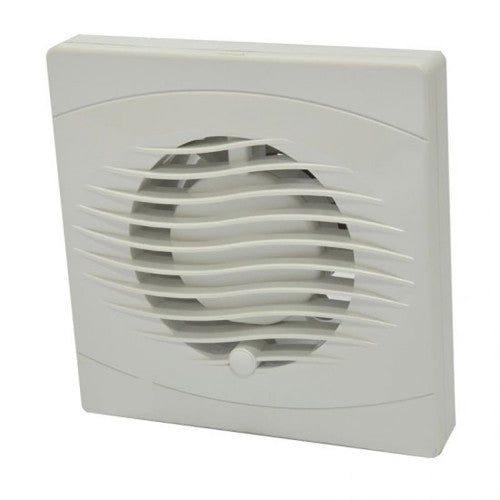

Elex ECF100 (Manrose XF100) 4"/100mm Domestic Fan Range Features & Benefits:

• Designed for wall, ceiling or window mounting, this comprehensive range offers a wide selection of models for use in bathrooms and toilets.
• Quiet and efficient, the 100mm (4″) series has an impressive extract rate of 85m³/hr, 23 litres per second, and is available in the eleven options detailed opposite.
• The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
• Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance- free life.
• Designed to comply with the Building Regulations on Ventilation (F1).

Elex ECF100 (Manrose XF100) 4"/100mm Domestic Fan Range Specifications:

• Product Type: Axial Fans
• Room Type: Bathroom, Entrance, Utility
• Warranty: 3 year
• Adjustable Timer: No, Yes
• Grille Type: Open
• Speed 1 (I/s): 23.6
• Control Type: ECF100S: Remote Switching, ECF100T: Run-on Timer (1-20mins), ECF100P: Pullcord, ECF100H: Humidity control which is adjustable between 40% RH and 95% RH and Run-on Timer (1-20 mins)
• Installation Type: Wall or Ceiling Mounting.
• Running Mode: Intermittent
• IP Rating: IP44
• Sound dB(A) @ 3m: 41
• Power 1 (W): 15
• Width: 163mm
• Height: 163mm
• Depth: 75mm
• Spigot Diameter: 100mm

Elex ECF150 (Manrose XF150B) 6"/150mm Domestic  Fan Features & Benefits:

• Designed for wall, ceiling or window mounting, the efficient and easy to install range of 150mm (6") extractor fans are available in twelve options, and are an alternative style and design to the traditional 6" kitchen style.
• The fans are suited to larger bathrooms, utility rooms, shops, offices, restaurants, etc. Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
• The extract rate for the 150B Series is 230m3/hr, 64 litres per second.
• The units are all manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning.
• Designed to comply with the Building Regulations on Ventilation (F1).

Elex ECF150 (Manrose XF150B) 6"/150mm Domestic  Fan Specifications:

• Product Type: Axial Fans
• Kitchen, Utility
• 3 Year
• Open
• Speed 1 (I/s): 63.9
• Control Type: ECF150S: Remote Switching, ECF150T: Run-on Timer (1-20mins), ECF150P: Pullcord, ECF150H: Humidity control which is adjustable between 40% RH and 95% RH and Run-on Timer (1-20 mins)
• Installation Type: Wall or Ceiling Mounting (ECF150P: wall-mounting only).
• Running Mode: Intermittent
• IP Rating: IP44
• Sound dB(A) @ 3m: 40
• Power 1: 25w
• Width: 203mm
• Height: 203mm
• Depth: 95mm
• Spigot Diameter: 150mm
