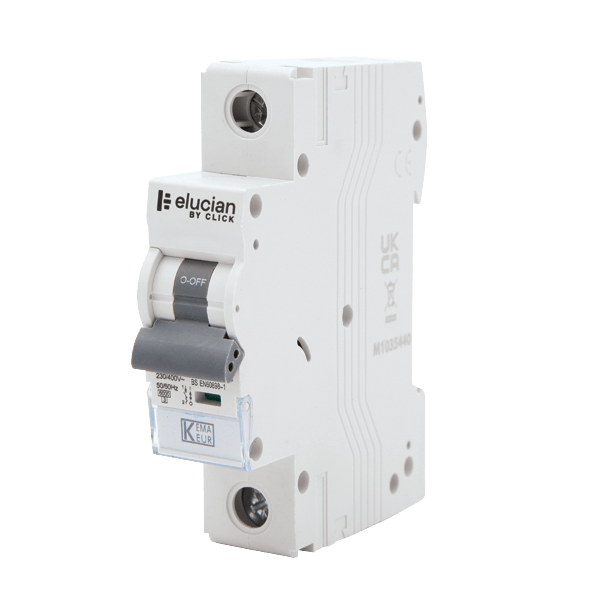

Elucian 1 Pole True 6kA B Curve 6-63A MCB

Dimensions (mm) 17.8 (W) x 85.3 (H) x 76.6 (D)
Colour Light Grey
Rated Operational Voltage (AC) (Ue) 230/400
Frequency (Hz) 50/60
Maximum Rated Current (A) (In) 6-63
Rated Breaking Capacity (True kA) (Ics) 6-63
Rated Insulation Voltage (V) (UI) 500
Impulse Withstand Voltage (Uimp) 4000
Endurance Mechanical Operations 20000
Endurance Electrical Operations 8000
Trip Curve B
Trip Type Thermal/Magnetic Release
Thermal Operating limit (1.13-1.45) x In
Magnetic Operating Characteristics (3-5) x In
Device Terminals Screwed Lug & Pin
MCB Terminal Capacity - Flexible (mm²) 16
MCB Terminal Capacity - Rigid (mm²) 25
MCB Terminal Torque (Nm) 2
Number Of Poles 1
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 3
Standards BS EN 60898-1
