Hyco Lot 20 Eco Panel Heaters with Timers 0.5, 1.0, 1.5, 2.0 & 2.4kW

Next Day Delivery (If ordered before 2pm, excludes weekends)

Ideal for a wide range of fixed installation heating applications in the home and office environment.

Hyco Lot 20 Eco Panel Heaters with Timers Features and Benefits

• Stylish curved slimline design
• Lot 20 Ecodesign compliant
• Available in 0.5, 1.0, 1.5, 2.0 and 2.4 kW models
• 24/ 7 LED electronic timer
• Manual or timer operation setting
• Timer configurable in 1 hour slots
• Temperature range 5 - 30°C
• Open window detection to reduce energy wastage
• Power on display
• Element on indicator
• Full or half power setting
• Frost protection setting at 5°C
• Easy to use control panel
• IP24 splash-proof
• Integrated child lock
• Wall mounted - secure bracket included
• Slimline - depth only 90mm
• White finish

Hyco Lot 20 Eco Panel Heaters with Timers Specification:

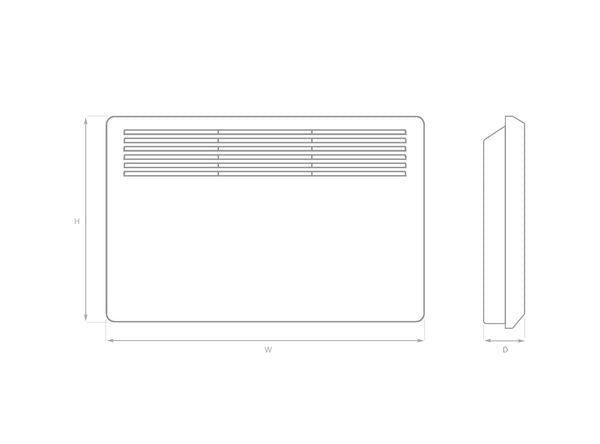

Model / Wattage / Current / Height x Width x Depth (mm) / Weight

AC500T / 0.5kW / 2.2A / 400H x 460W x 90D / 3.4kg
AC1000T / 1.0kW / 4.3A / 400H x 460W x 90D / 3.4kg
AC1500T / 1.5kW / 6.5A / 400H x 595W x 90D / 4.7kg
AC2000T / 2.0kW / 9.0A / 400H x 830W x 90D / 5.7kg
AC2400T / 2.4kW / 10.4A / 400H x 950W x 90D / 7.4kg

*Depth excludes bracket. For depth including bracket add 30 mm.

Outer Casing
Powder coated steel

Element
Aluminium x-shape heating element

Controls
Digital controls and screen

Louvres
0.5 and 1.0 kW have two columns of louvres,1.5 kW has three columns of louvres, 2.0 kW and 2.4 kW have four columns of louvres

Safety
Overheat temperature protection.

IP Rating
IP24

Installation
Wall mounting kit included and must be used.

Electrical Connection
Installation must comply with current IET wiring regulations.
The product should be connected to the fixed wiring of the property via a suitably rated isolating switch with a contact separation of at least 3mm in all poles.
Cable pre-wired (1.8m), white cable, entry to the top right of the unit.
Class I

Approvals
CE, UKCA

Standard Warranty
1 year parts or replacement warranty.
