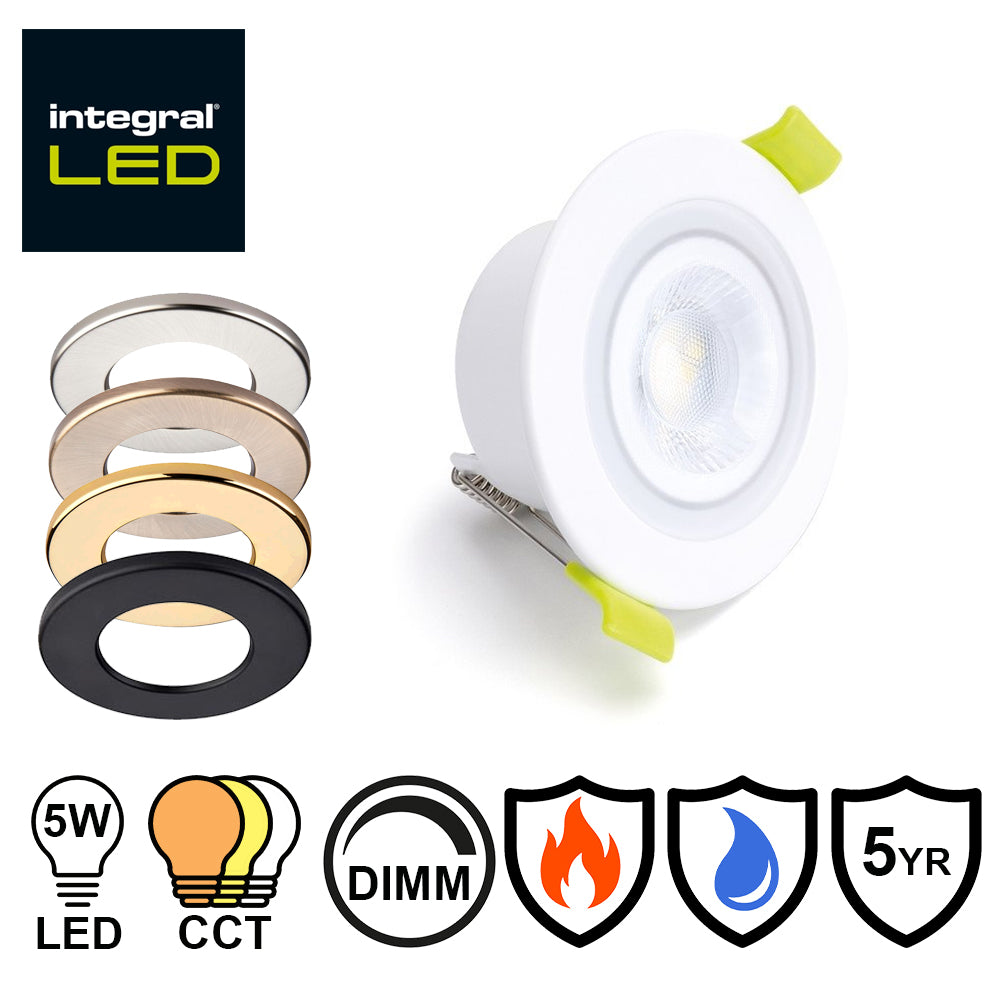

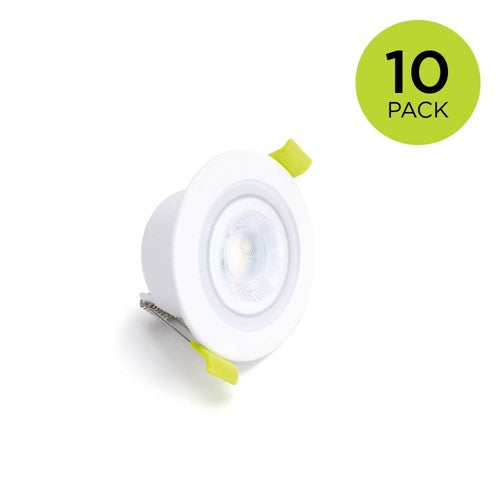

Integral EcoGuard 5W CCT Dimmable IP65 Fire Rated Downlight

Integral EcoGuard 5W CCT Dimmable IP65 Fire Rated Downlight

Regular price £4.70 GBP
Regular price Sale price £4.70 GBP
Sale Sold out
Tax included.
Option

Next day delivery available at check-out

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

The EcoGuard range offers premium protection and reliability with exceptional value and efficacy (120lm/W).

Complete with an in-built dimmable driver and offering IP65 water and dust resistance, the EcoGuard is ideal for commercial and residential applications, especially in kitchens and bathrooms.

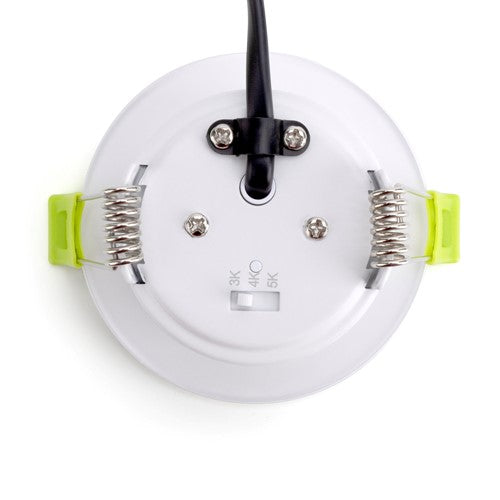

Featuring three colour temperature settings, selectable on fitting, the EcoGuard CCT switchable model offers 3000K warm white, 4000K cool white and 5000K daylight options.

Installation is quick and easy, even in shallow ceiling voids, thanks to the low-profile design and tool-free Fast Connect loop-in, loop-out junction box, whilst the fully enclosed design makes it suitable for overlaying with insulation without posing a risk to safety or product longevity.

Fire rated to 30, 60 and 90 minutes (Solid Timber Joist) and to 30 and 60 (i-Joist) to EN 1365-2, and in compliance with BS 476 Part 21, the EcoGuard provides peace of mind wherever fire protection is required. Insulation coverable.

Integral EcoGuard 5W CCT Dimmable IP65 Fire Rated Downlight Features & Benefits:

  • High efficacy 120lm/W
  • Dimmable
  • CCT Switching 3000K/4000K/5000K
  • IP65
  • Matt white finish
  • Easy install push connector junction box

Integral EcoGuard 5W CCT Dimmable IP65 Fire Rated Downlight Specifications:

Quick Order Code    161270
Category    Downlights
Range Name    EcoGuard
Product Type    Fire Rated
Product Body Finish    Matt white
Market Segment    Commercial indoor, Residential indoor
Features    CCT Switchable
Fixed/Tiltable    Fixed
Warranty (Years)    5
Emergency Option    No
Product Length (mm)    85
Product Depth (mm)    52
Product Width (mm)    85
Product Weight (g)    180
Material    Steel, Aluminium, PC, Glass
Overall diameter (mm)    85
Construction    Pressed Steel, Glass
Cut Out Diameter (mm)    65
Bulb or Luminaire Shape    Round
Luminaire Fixing    Recess mounted
Placement / Application    Indoor, General Lighting
Spot Type    SMD
Control Gear    Non-replaceable
Luminous Flux in Lumens (lm)    600
Luminous efficacy (lm/W)    120
Correlated Colour Temperature (CCT) (K)    3000 / 4000 / 5000 (CCT Switchable)
Colour Temperature    3000/4000/5000 - Warm White / Cool White / Daylight
Colour Temperature Name    Warm White, Cool White, Cool Daylight
Beam Angle    38
Colour Rendering Index (CRI)    80
Compatible Dimmers    Varilight JQP401W
Fire Rating (mins)    30, 60, 90
Frequency Range (Hz)    50/60
Instant on (Less than 1 second)    Yes
LED Type    Surface mounted device (SMD)
Lifetime (hours)    25000
Switching Cycles    10000
Useful Lumens (lm)    535
Light Source    Non-replaceable
Power (W)    5
Power Consumption (W)    5
Power Factor    0.8
Voltage Range (v)    220-240
Amperage (mA)    75
Dimming    Mains dim
Driver Included    Yes
Electric Current    AC
EN    EN-60598
LVD Certified    Yes
CE RoHS    Yes
New Energy Rating    D
Hg 0% (Mercury Free)    Yes
IP Rating (Back/Recessed side)    IP20
IP Rating (Ingress Protection)    IP65
Lowest Operating Temperature (°C)    -20
Maximum Operating Temperature (°C)    45
Barcode    5055788299240
Package Weight (g)    210
Package Length (mm)    105
Package Width (mm)    95
Package Depth (mm)    65
