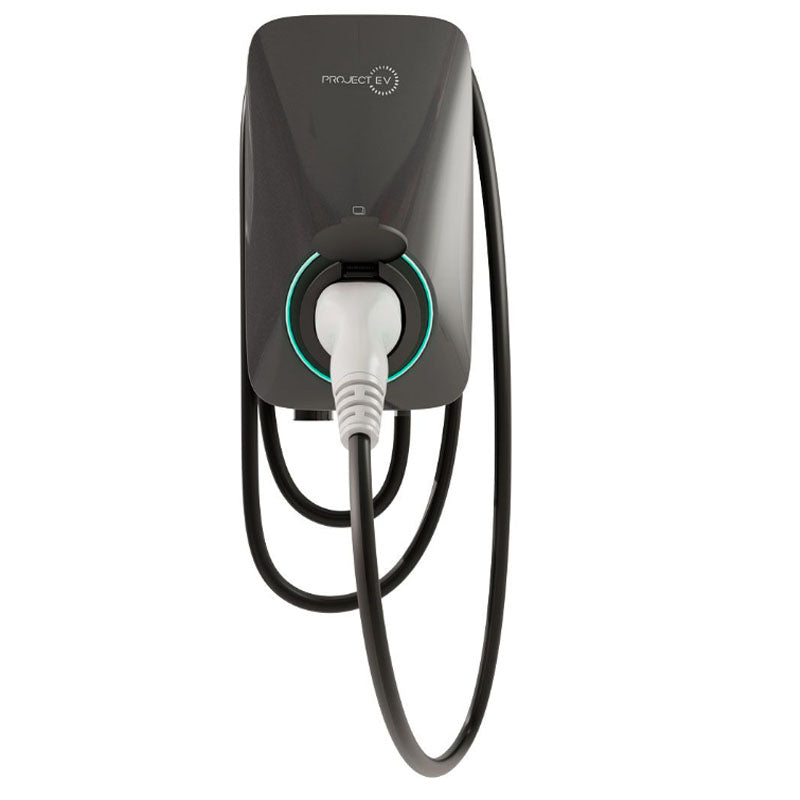

Project EV APEX-7S-T 7.3KW Fast AC Single Charger Tethered

Next Day Delivery (If ordered before 2pm, excludes weekends)

Ready to enter the future of electric vehicle charging?

The Project EV APEX-7S-T 7.3kW Fast AC Single Charger is designed to make your life easier.

Operating at a voltage of 230V and a frequency of 50/60Hz, it can deliver a maximum current of 32A, translating to a 7.3kW rated power output for faster charging times.

Built for durability, the charger comes with an IP65 rating for water and dust resistance, making it ideal for both indoor and outdoor installations.

Additionally, the IK08 impact rating ensures that the charger is robust enough to withstand external influences.

Pro Earth Pen Fault Protection

Featuring built-in pen fault protection as standard, our pro earth APEX EV charger eliminates the need for an earth spike upon installation, or carry out any costly ground-works.

WIFI, BLUETOOTH, 4G & LAN COMPATIBLE

The APEX features multiple connection options including WIFI, Bluetooth and 4G connectivity. Providing seamless & wireless communication access for your EV charger.

Intelligent Solar

Being fully solar compatible, utilise the power of the sun with APEX. Take advantage of green, solar energy by using the sun to power & charge your vehicle.

DYNAMIC LOAD BALANCING UP TO 96 UNITS

With dynamic load balancing the APEX EV charger is able to intelligently adjust how much power it draws, allowing it to never draw too much power, but always operate at a happy optimum.

5 Year Warranty

With a market-leading 5-year warranty, APEX gives you the peace of mind, protection, and guarantee of high-quality after-care services for your EV charger (subjected to terms and conditions).

Control Everything with the APEX Smart App

Start, stop, & monitor your charging, prioritise off-peak charging and manage multiple charge points with one app. Available on both the Google Play and App Store.

Project EV APEX-7S-T 7.3KW Fast AC Single Charger Tethered Specifications:

INPUT

Wiring Scheme 1P+N+PE
Voltage 230Vac, ±20%
Maximum Current 32A
Frequency 50/60Hz

OUTPUT

Voltage 230Vac, ±20%
Maximum Current 32A
Rated Power 7.3kW

USER INTERFACE & CONTROL

Connector Type Type 2 Cable
Cable Length 5m
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug & Play / RFID Card / App

COMMUNICATION

WiFi Yes*
Bluetooth Yes
LAN Available Q1 2024
4G 4G on APEX-7S-4G ONLY
OCPP OCPP 1.6 JSON, OCPP 2.0 Optional (Coming Soon)

*Range capability up to 30m. Dependent on environment and charger location/surroundings

ENVIRONMENT

Installation Wall-mount / Post-mount
Operating Temperature -30°C ~ 50°C
Operating Humidity 5% ~ 95% No condensation
Operating Altitude ≤2000m
Mid Metering / CT EN50470-1 & EN50470-3 Class B MID approved Meter (pre configured, CT Clamp and Meter Included)

SAFETY

IP Protection Rating IP55
IK Protection Rating IK08
Residual Current Detection Integral Type A RCBO / AC 30mA / DC 6mA
Over Current Protection Yes
Residual Current Protection Yes
Pro Earth Pen Fault Protection Yes
Surge Protection Yes
Over Voltage protection Yes
Under Voltage Protection Yes
Over Temperature Protection Yes
Under Temperature Protection Yes
Certification CE, UKCA
Certification Standard EN/IEC 61851-1: 2019, EN/IEC 61851-21-2: 2021

DIMENSIONS & WEIGHT:

Product Dimension 320*190*144 mm
Product Weight 5.6kg
