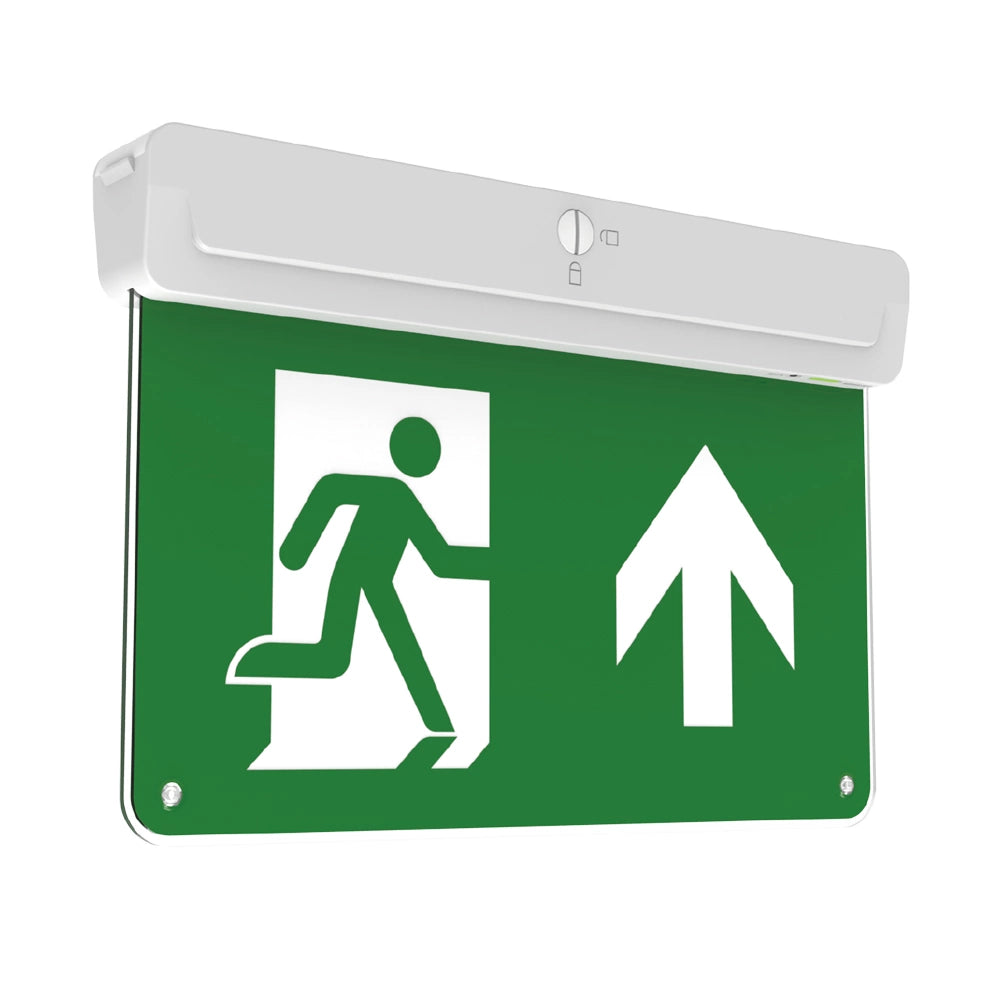

Red Arrow ANA/30 Multi positional LED Emergency Exit Sign w/ Up Legend

3-5 Days Delivery.

Next day delivery available at check-out (If ordered before 2pm, excludes weekends).

The Red Arrow Athena ANA/30 is a multi positional LED Emergency exit sign, suitable for mounting in 5 different ways (mounting accessories purchased separately).

Can be configured for maintained or non-maintained operation with self test version
available

Red Arrow ANA/30 Athena Multi positional LED Emergency exit sign Features & Benefits:

• Surface Ceiling and wall mounting as standard.
• Wire suspension, recessed, and Flag mounting purchased separately
• Choice of legend (supplied separately)
• Latest LiFeP04 battery technology
• Maintained or Non-Maintained operation
• Available with self test functionality

Red Arrow ANA/30 Athena Multi positional LED Emergency exit sign Specification:

Guarantee 5 Years
Emergency Battery Guarantee 5 Years
On-Site Warranty 2 Years
Colour Appearance (CCT) 6500K
IP Rating IP20
Emergency Battery Type LiFePO4
Voltage 220-240V
Material (Body/Housing) Polycarbonate
Material (Diffuser/Cover) Acrylic

Colour Finish White RAL9003
LED Life Expectancy 36000hours
Power Factor >0.3
Frequency 50/60Hz
Driver Type Fixed
Approval UKCA CE
Electrical Class Class II
Working Temperature 0˚C to +45˚C
EM Working Temperature 0˚C to +45˚C

Dimensions (mm) L: 313 x W: 42 x H: 212 mm
Product Net Weight (kg) 0.53 kg
Barcode 5055807625517
Box Dimensions (mm) L:317 x W: 50 x D: 215 mm
Box Gross Weight (kg) 0.63 kg

Units/Outer Carton 10
Outer Carton Barcode 15055807625514
Outer Carton Dimensions (mm) L:330 x W: 275 x D: 445 mm
Outer Carton Gross Weight (kg) 6.95 kg
