Red Arrow VAN/3 3W M/NM IP66 Emergency Bulkhead 6500k w/ Legends

3-5 Days Delivery.

Next day delivery available at check-out (If ordered before 2pm, excludes weekends).

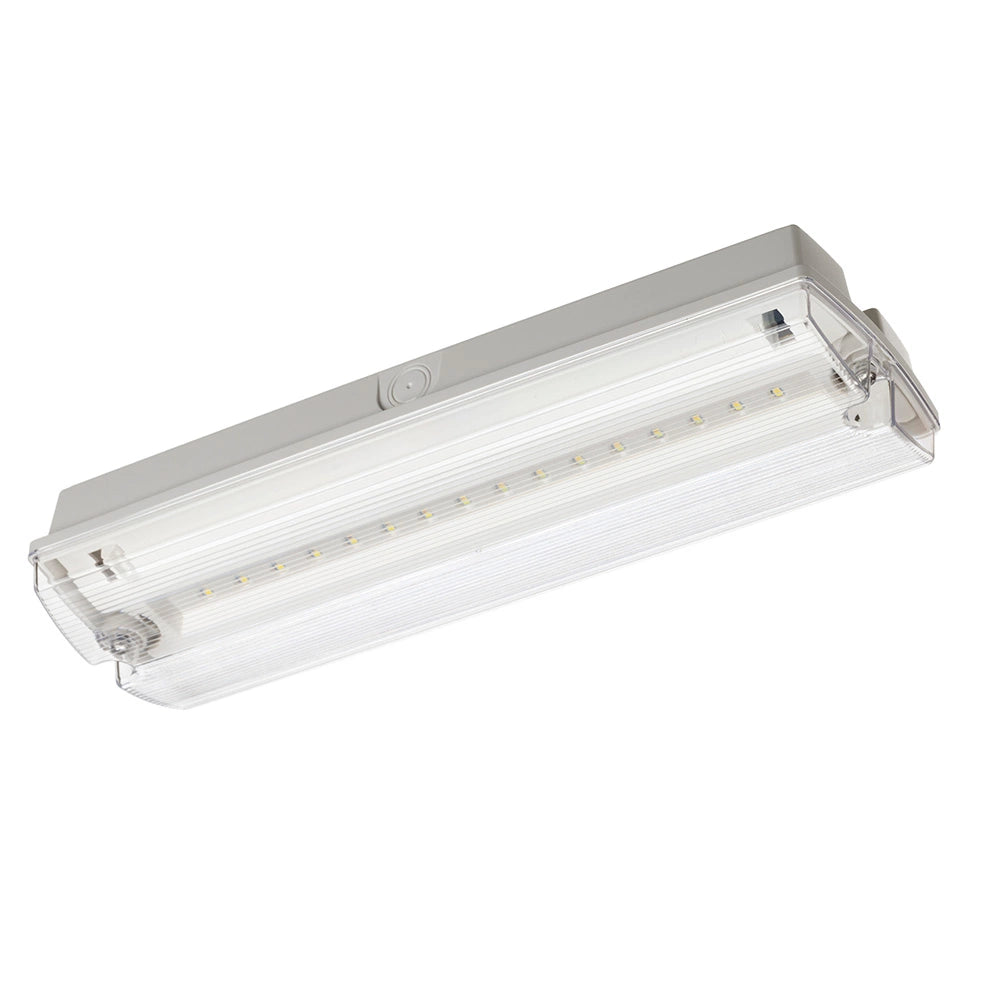

The Red Arrow Vanguard VAN/3 is a 3W IP66 emergency bulkhead in colour 6500k that can be configured for either maintained or non-maintained operation.

The VAN/3 features a convenient hinged gear tray for easy installation and a prismatic lens that offers improved spacings for both escape route and open area lighting.

Red Arrow VAN/3 3W 6500k IP66 Emergency LED Bulkhead w/ Legends Features & Benefits:

• Tough IP66 construction for indoor and outdoor applications
• Hinged gear tray for rapid installation
• Maintained or non-maintained operation
• Supplied with self-adhesive legend kit (Also sold separately)
• LiFePO4 batteries ensure a longer and more reliable service life.

Red Arrow VAN/3 3W 6500k IP66 Emergency LED Bulkhead w/ Legends Specifications:

Guarantee 5 Years
Emergency Battery Guarantee 5 Years
On-Site Warranty 2 Years
Colour Appearance (CCT) 6500K
IP Rating IP66
IK Rating IK08
Emergency Battery Type LiFePO4
Voltage 220-240V
Material (Body/Housing) ABS

Colour Finish White RAL9003
LED Life Expectancy 36,000 Hours
Power Factor >0.3
Frequency 50/60Hz
Driver Type Fixed
Approval UKCA CE
Electrical Class Class II
Working Temperature 5˚C to +45˚C
EM Working Temperature 5˚C to +45˚C

Dimensions (mm) L: 351 x W: 111 x D: 63 mm
Product Net Weight (kg) 0.49 kg
Barcode 5055807624398
Box Dimensions (mm) L:357 x W: 115 x D: 70 mm
Box Gross Weight (kg) 0.59 kg

Units/Outer Carton 10
Outer Carton Barcode 15055807624395
Outer Carton Dimensions (mm) L:605 x W: 375 x D: 155 mm
Outer Carton Gross Weight (kg) 6.7 kg
