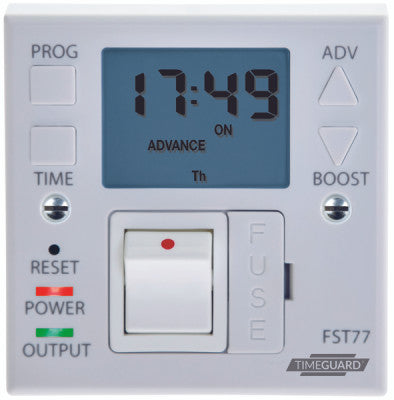

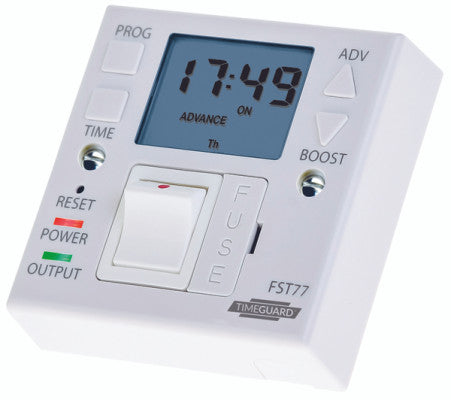

Timeguard FST77 7 Day Fused Spur Timeswitch

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Timeguard’s new look Fused Spur Timeswitches with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster range

Timeguard FST77 7 Day Fused Spur Timeswitch Features & Benefits:

• Up to 4 ON and OFF programmes available (5 day plus 2 or 7 day programmes) giving up to 28 ON and OFF programmes per week
• Suitable for use with up to 3kW immersion heaters
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
• Permanent OFF and timed outputs available
• Easy view 24 hour digital clock/timer display
• Optional boost facility
• Automatic summer/winter time changeover
• Self-cancelling override
• Programme advance and review options
• Integral memory back up battery retains programmes in event of power failure
• Ideal for replacing single gang connection unit or fixed appliance outlets
• Double pole switch for ease of control BS1362 fuse replaceable from front


Timeguard FST77 7 Day Fused Spur Timeswitch Specifications:

Operating Voltage 230V AC
Frequency 50Hz
Earth Class Rating Class II
Operating Temperature 0°C to 40°C
Program Modes 24 Hour/7 Day, 1 Hour/2Hour Boost
Switch type Double Pole (Isolation Switch)
Standby Consumption <0.91W

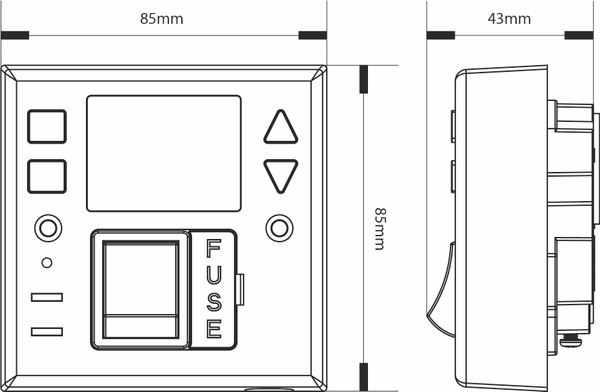

Dimensions Height 85mm, Width 85mm, Depth 43mm, Protruding Depth: 30mm
