Wago 221-2411 32A 4 mm² inline splicing connector with levers (Pack of 60)

3-5 Days Delivery

Next day option available at check-out (If ordered before 2pm, excludes weekends)

Wago 221-2411 32A 4 mm² inline splicing connector with levers Features & Benefits:

This connector is suitable for worldwide installations.
• Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm² (24–16 AWG)
• Slim design saves space in tight areas
• Tool-free connection and disconnection thanks to convenient lever technology
• Use a mounting carrier for fixed and multi-pole wiring

Rated voltage UL (Use Group C) 600 V
Rated current UL (Use Group C) 20 A

Connection points 2

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Solid conductor 0.2 … 4 mm² / 20 … 14 AWG
Stranded conductor 0.2 … 2.5 mm² / 18 … 14 AWG
Fine-stranded conductor 0.2 … 4 mm² / 18 … 14 AWG
Strip length 11 mm / 0.43 inches

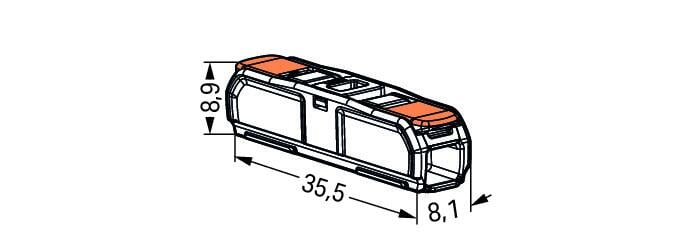

Width 8.1 mm / 0.319 inches
Height 8.9 mm / 0.35 inches
Depth 35.5 mm / 1.398 inches

Color transparent
Cover color transparent
Material group IIIa
Insulation material Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.057 MJ
Actuator color orange
Weight of insulation material 0.84 g
Weight 2.3 g

Continuous operating temperature -60 … +105 °C

ETIM 8.0 EC000446
ETIM 7.0 EC000446
PU (SPU) 600 (60) pcs
Packaging type Box
Country of origin CH
GTIN 4066966102666
Customs tariff number 85369010000

RoHS Compliance Status Compliant,No Exemption
