Wago 221-413 32A 4 mm² 3-conductor splicing connector with levers (Pack of 50)

3-5 Days Delivery

Next day delivery available at check-out (If ordered before 2pm, excludes weekends)

Wago 221-413 Features & Benefits:

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Connection points 3
Total number of potentials 1

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 4 mm² / 12 AWG
Solid conductor 0.2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0.14 … 4 mm² / 24 … 12 AWG
Strip length 11 mm / 0.43 inches
Wiring direction Side-entry wiring

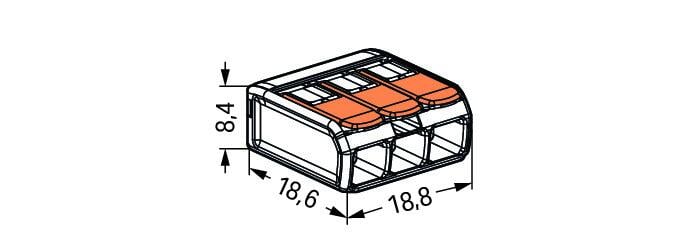

Width 18.8 mm / 0.74 inches
Height 8.4 mm / 0.331 inches
Depth 18.8 mm / 0.732 inches

Colour transparent
Insulation material Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.064 MJ
Actuator colour orange
Weight 2.5 g

Ambient temperature (operation) +85 °C
Continuous operating temperature 105 °C
Temperature marking per EN 60998 T85
