Wago 221-415 32A 4 mm² 5-conductor splicing connector with levers (Pack of 25)

3-5 Days Delivery

Next day option available at check-out (If ordered before 2pm, excludes weekends)

Wago 221-415 32A 4 mm² 5-conductor splicing connector with levers Features & Benefits:

Connection points 5
Total number of potentials 1

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 4 mm² / 12 AWG
Solid conductor 0.2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0.14 … 4 mm² / 24 … 12 AWG
Strip length 11 mm / 0.43 inches
Wiring direction Side-entry wiring

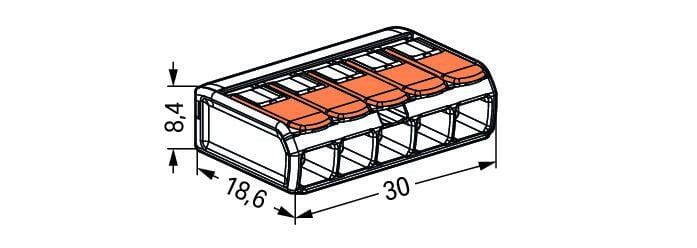

Width 30 mm / 1.181 inches
Height 8.4 mm / 0.331 inches
Depth 18.8 mm / 0.732 inches

Color transparent
Insulation material Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.089 MJ
Actuator color orange
Weight 4 g

Ambient temperature (operation) +85 °C
Continuous operating temperature 105 °C
Temperature marking per EN 60998 T85
