Wago 221-613 41A 6 mm² 3-conductor splicing connector with levers (Pack of 30)

3-5 Days Delivery

Next day option available at check-out (If ordered before 2pm, excludes weekends)

Wago 221-613 41A 6 mm² 3-conductor splicing connector with levers Features & Benefits:

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Wago 221-613 41A 6 mm² 3-conductor splicing connector with levers Specifications:

Clamping units 3
Total number of potentials 1

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 6 mm² / 10 AWG
Solid conductor 0.5 … 6 mm² / 20 … 10 AWG
Stranded conductor 0.5 … 6 mm² / 20 … 10 AWG
Fine-stranded conductor 0.5 … 6 mm² / 20 … 10 AWG
Strip length 12 … 14 mm / 0.47 … 0.55 inches
Wiring direction Side-entry wiring

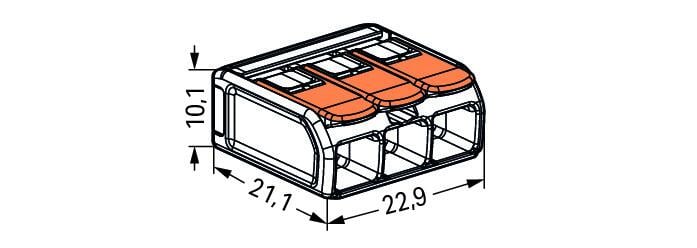

Width 22.9 mm / 0.902 inches
Height 10.1 mm / 0.398 inches
Depth 21.1 mm / 0.831 inches

Color transparent
Cover color transparent
Material group IIIa
Insulation material (main housing) Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.094 MJ
Actuator color orange
Weight 4 g

Ambient temperature (operation) +85 °C
Continuous operating temperature 105 °C
Temperature marking per EN 60998 T85

eCl@ss 10.0 27-14-11-04
eCl@ss 9.0 27-14-11-04
ETIM 8.0 EC000446
ETIM 7.0 EC000446
PU (SPU) 300 (30) pcs
Packaging type Box
Country of origin CH
GTIN 4055143715416
Customs tariff number 85369010000

RoHS Compliance Status Compliant,No Exemption
