(Pack of 120) Wago 2773-402 32A 4mm² 2-Conductor Push Wire Splicing Connectors

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Wago 2773-402 32A 4mm² 2-Conductor Push Wire Splicing Connector Features & Benefits:

• Convenient wiring via extremely compact design
• Push-in termination of up to eight solid and stranded conductors
• Conductor range: 0.75 … 4 mm² “s“ and 1.5 … 4 mm² “st“
• Any combination of conductor sizes is possible
• PUSH WIRE® connection terminates solid (“s+str”) copper conductors

Wago 2773-402 32A 4mm² 2-Conductor Push Wire Splicing Connector Specifications:

Clamping units 2
Total number of potentials 1

Connection technology PUSH WIRE®
Actuation type Push-in
Connectable conductor materials Copper
Solid conductor 0.75 … 4 mm² / 20 … 12 AWG
Stranded conductor 1.5 … 4 mm² / 18 … 12 AWG
Conductor diameter 1.6 … 2 mm / 20 … 12 AWG
Strip length 13 mm / 0.51 inches
Wiring direction Side-entry wiring

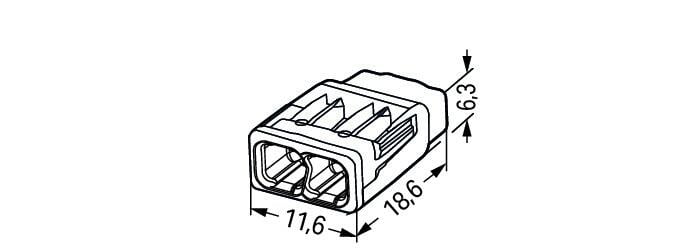

Width 11.6 mm / 0.457 inches
Height 6.3 mm / 0.248 inches
Depth 18.6 mm / 0.732 inches

Colour transparent
Cover color white
Material group IIIa
Insulation material (main housing) Polycarbonate (PC)
Flammability class per UL94 V2
Clamping spring material Chrome-nickel spring steel (CrNi)
Contact material Electrolytic copper
Contact Plating Tin
Fire load 0.021 MJ
Weight 1.1 g

Ambient temperature (operation) +85 °C
Processing temperature -35 … +60 °C
Continuous operating temperature -40 … +105 °C
Temperature marking per EN 60998 T85

RoHS Compliance Status Compliant, No Exemption
