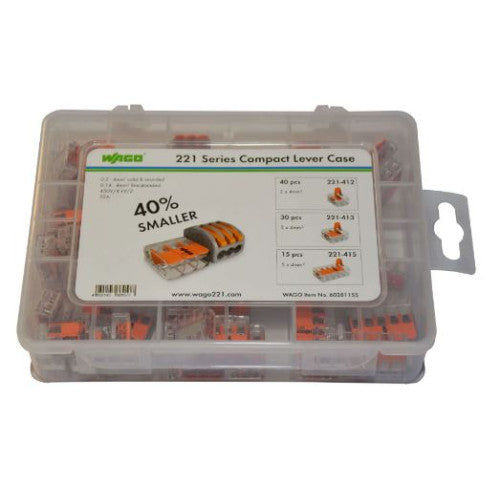

Wago 887-1046 221 Series Compact Lever Case (85 Pieces)

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Wago 887-1046 221 Series Compact Lever Case (85 Pieces) Features & Benefits:

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Includes 40 x 2-wire, 30 x 3-wire and 15 x 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Wago 887-1046 221 Series Compact Lever Case (85 Pieces) Specifications

Connection points 2, 3 and 5
Total number of potentials 1

Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross-section 4 mm² / 12 AWG
Solid conductor 0.2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0.2 … 4 mm² / 24 … 12 AWG
Fine-stranded conductor 0.14 … 4 mm² / 24 … 12 AWG
Strip length 11 mm / 0.43 inches
Wiring direction Side-entry wiring

Colour transparent
Insulation material Polycarbonate (PC)
Flammability class per UL94 V2
Fire load 0.064 MJ
Actuator colour orange
Ambient temperature (operation) +85 °C
Continuous operating temperature 105 °C
Temperature marking per EN 60998 T85
