Wiska Combi Boxes, All Sizes, Colours, Empty, Terminals, Earthing Clamps, Wagos, IP68 Gel

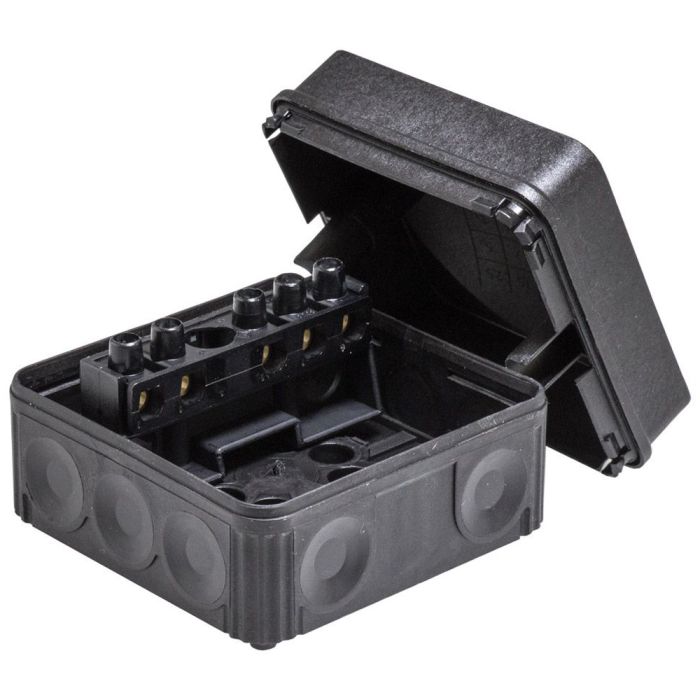

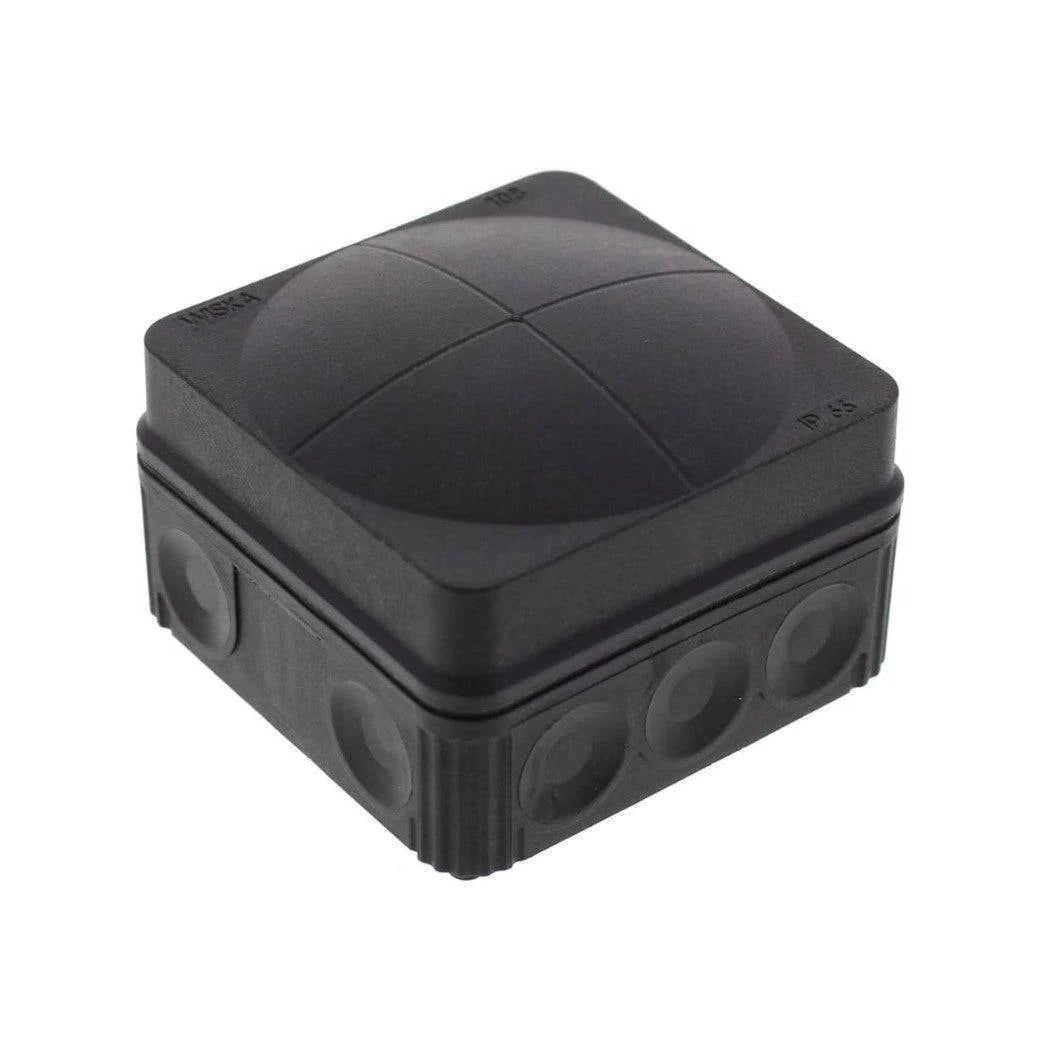

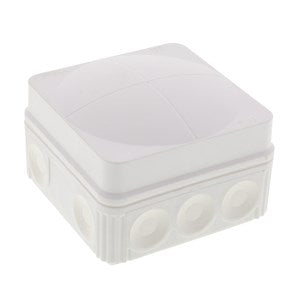

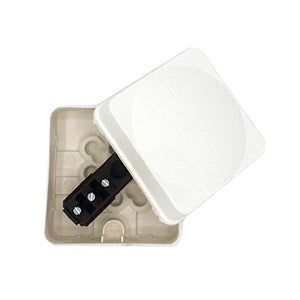

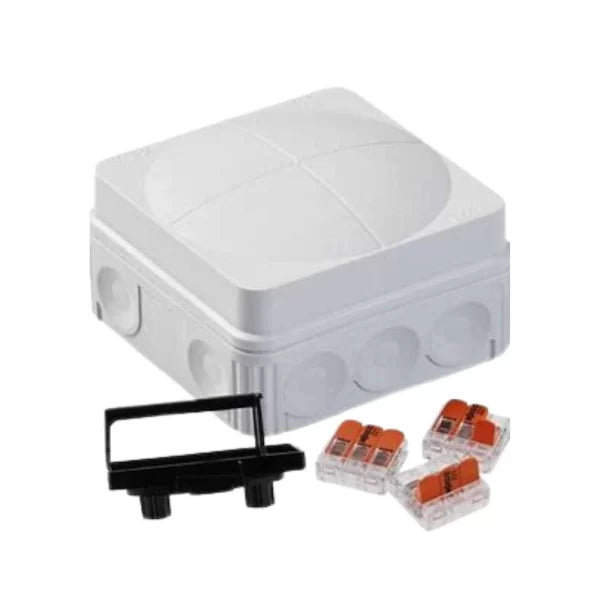

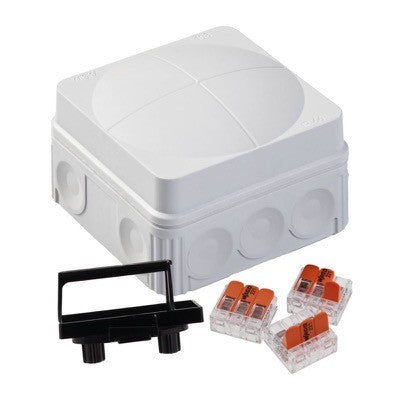

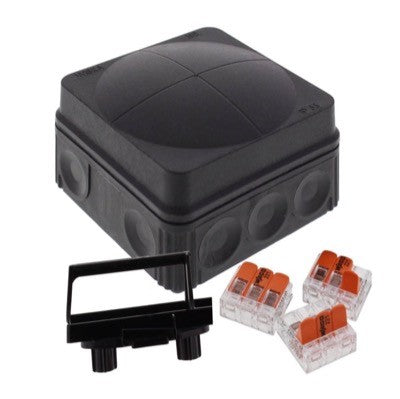

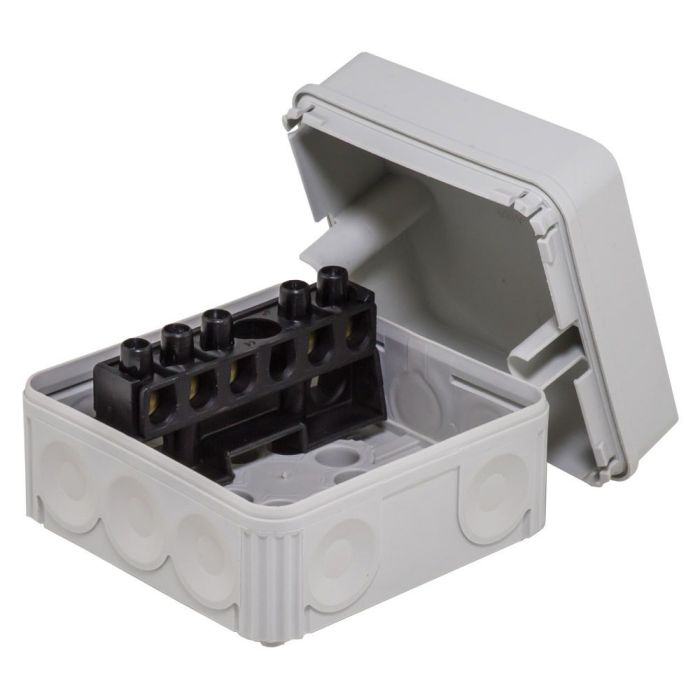

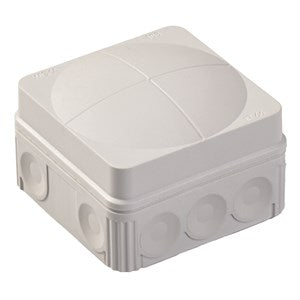

COMBI 108

Features:

• 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom
• optional terminal block 5-poles, 2,5mm²
• optional terminal carrier on quick mounting plate mounted with 3x WAGO 221-413 enclosed loose
• optional silicone gel sealing compound in practical mixing bag, Plastic sprue for easy removal, screw plug

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66
Glow wire test    750 °C
Voltage    400 V
Rated cross section    2,5 mm²
Fixing    By two internal openings outside of the sealing area
Ø cable diameter min    3 mm
Ø cable diameter max    14 mm
External dimensions LxWxH    76 x 76 x 51mm

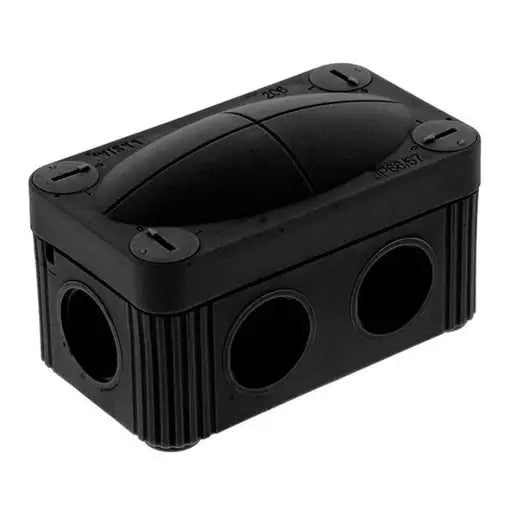

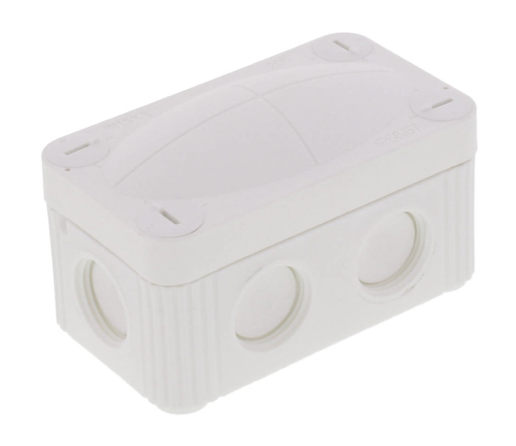

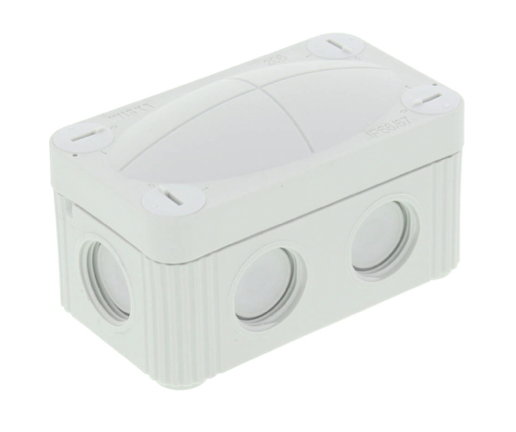

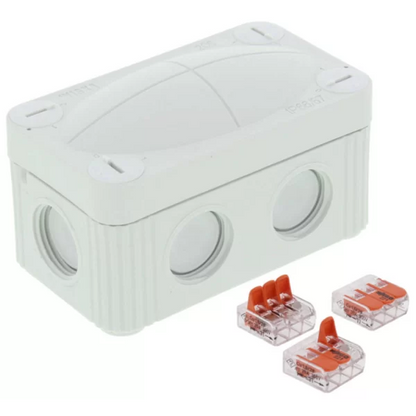

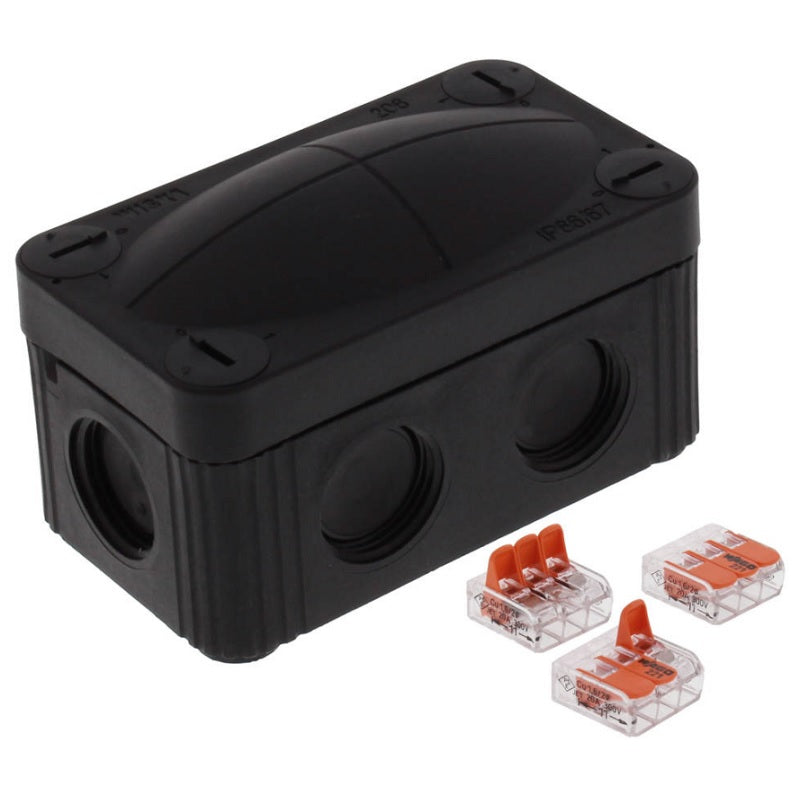

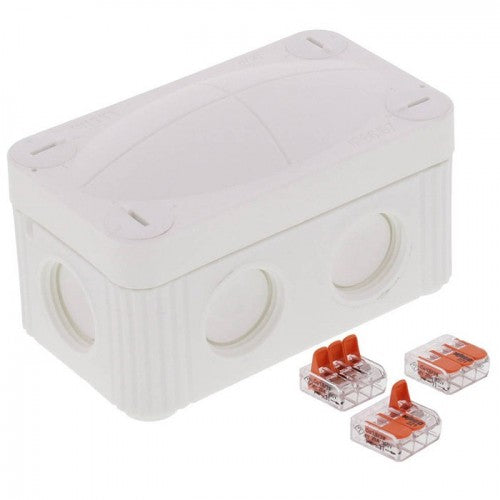

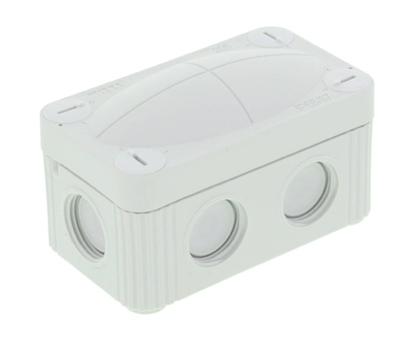

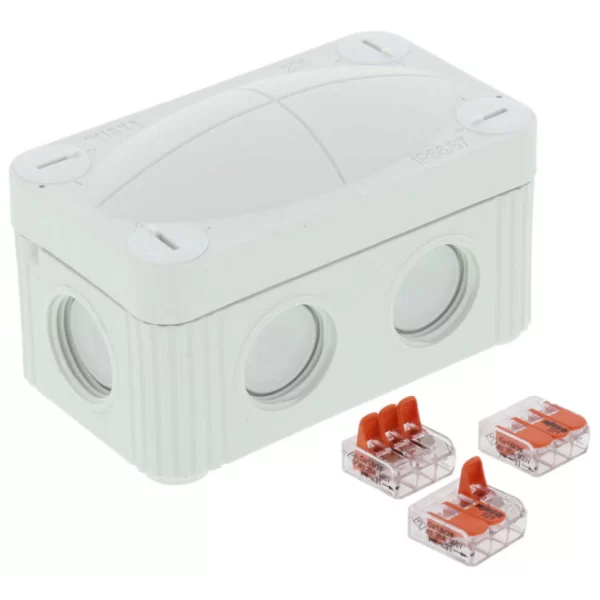

COMBI 206

Features:

• 6 M20 threaded membrane entries
• 2 membrane cable entries through rear
• 4 captive cover screws
• optional 3x WAGO 221-413 enclosed loose

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66: using the membrane entry, IP67: using the threaded entry together with ESKV cable gland
Glow wire test    750 °C
Voltage    400 V
Rated cross section    1,5 mm²
Fixing    With 4 internal openings outside of the sealing area
Ø cable diameter min    3 mm
Ø cable diameter max    12 mm
External dimensions LxWxH    85 x 49 x 51mm

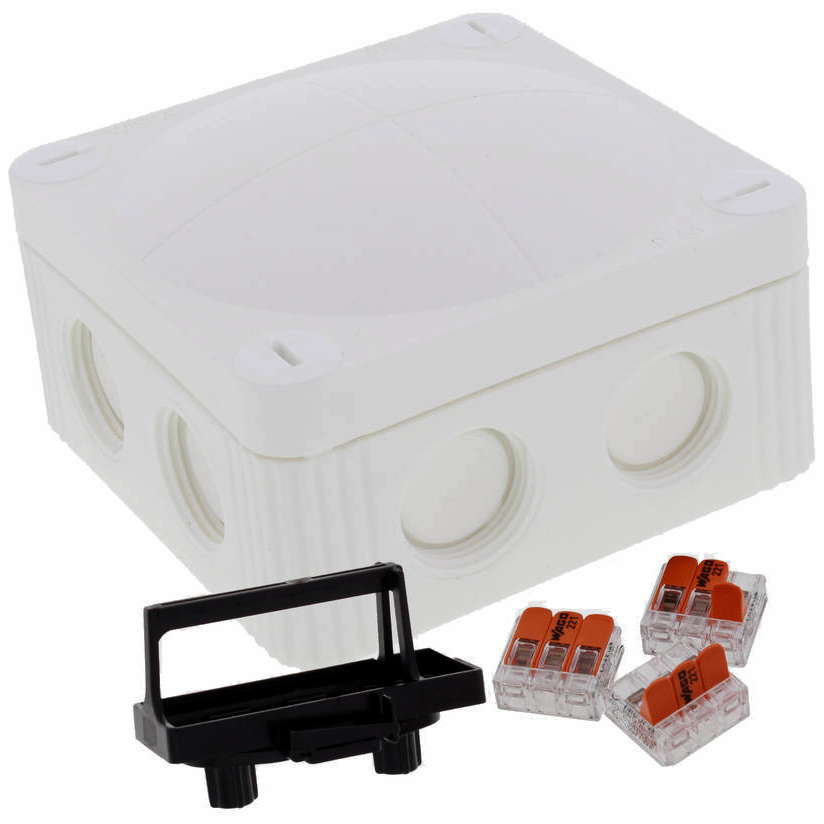

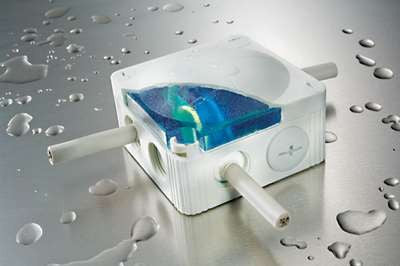

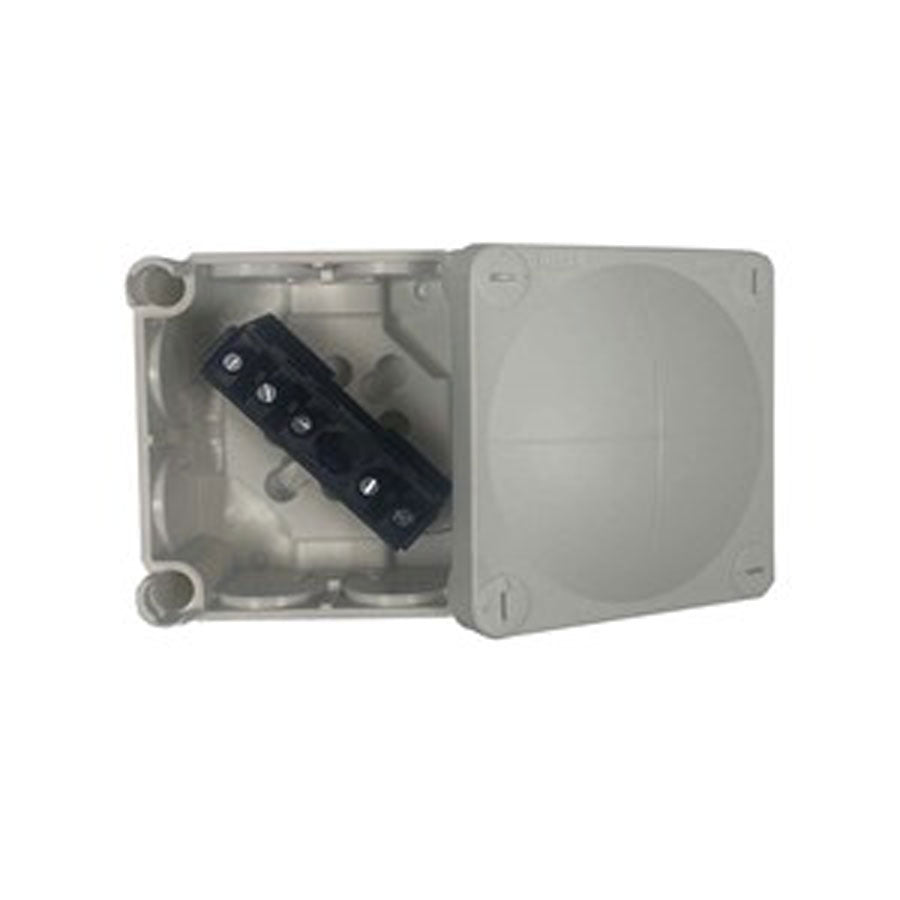

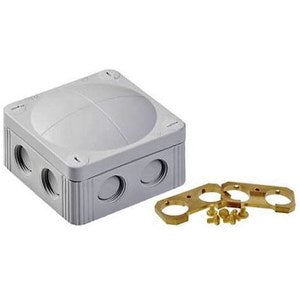

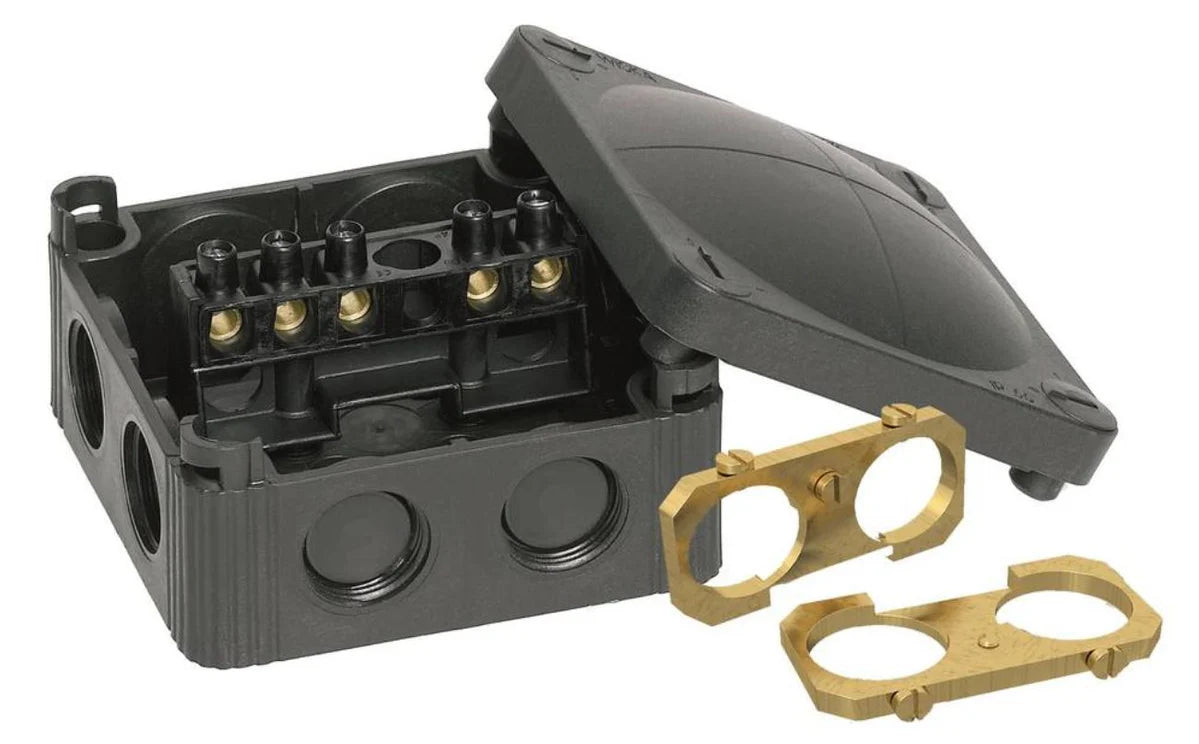

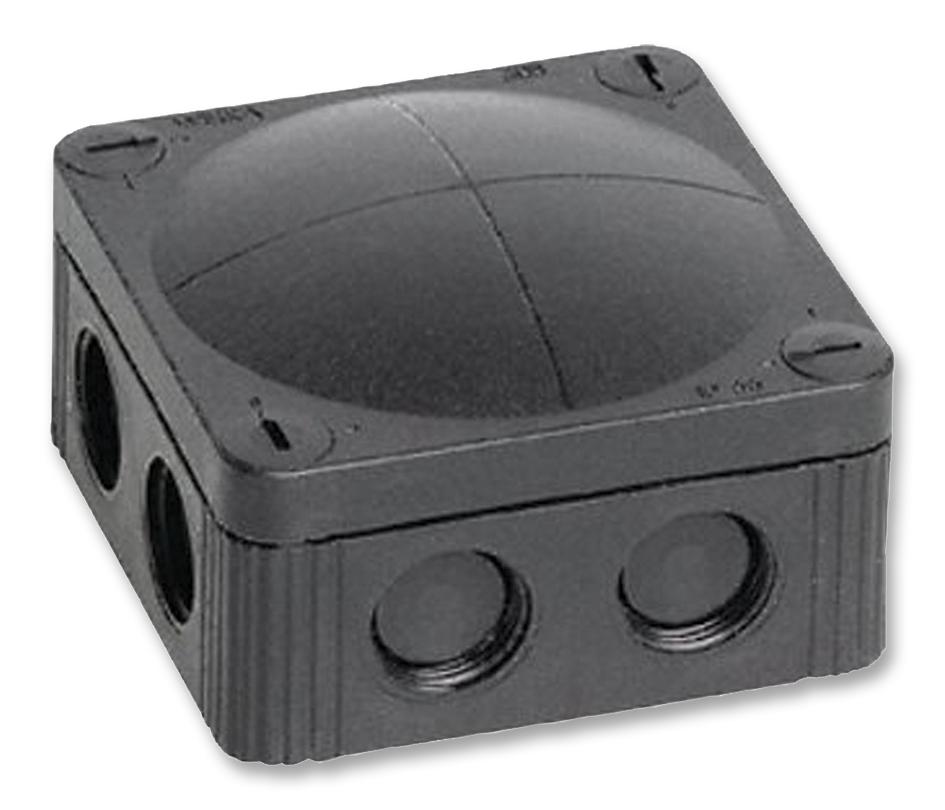

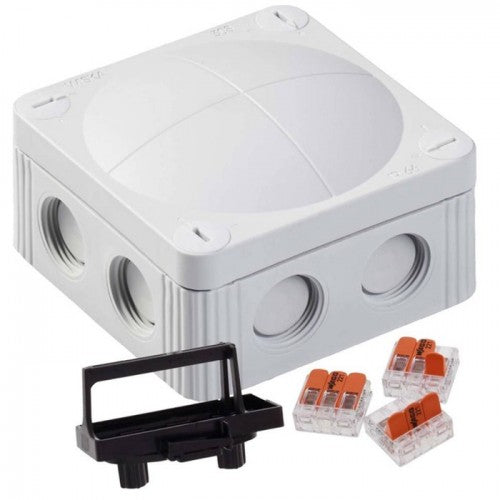

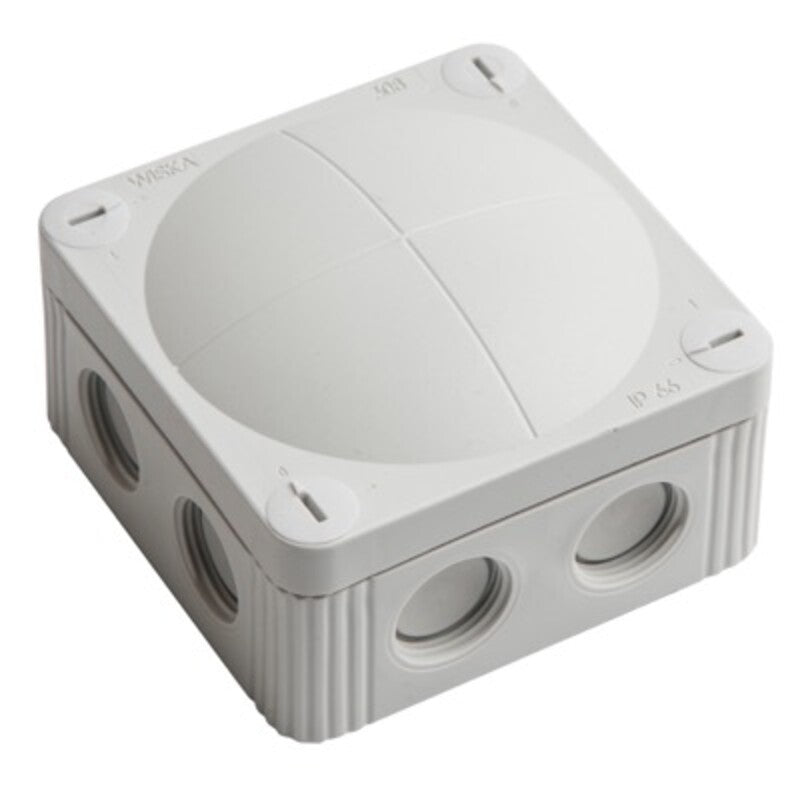

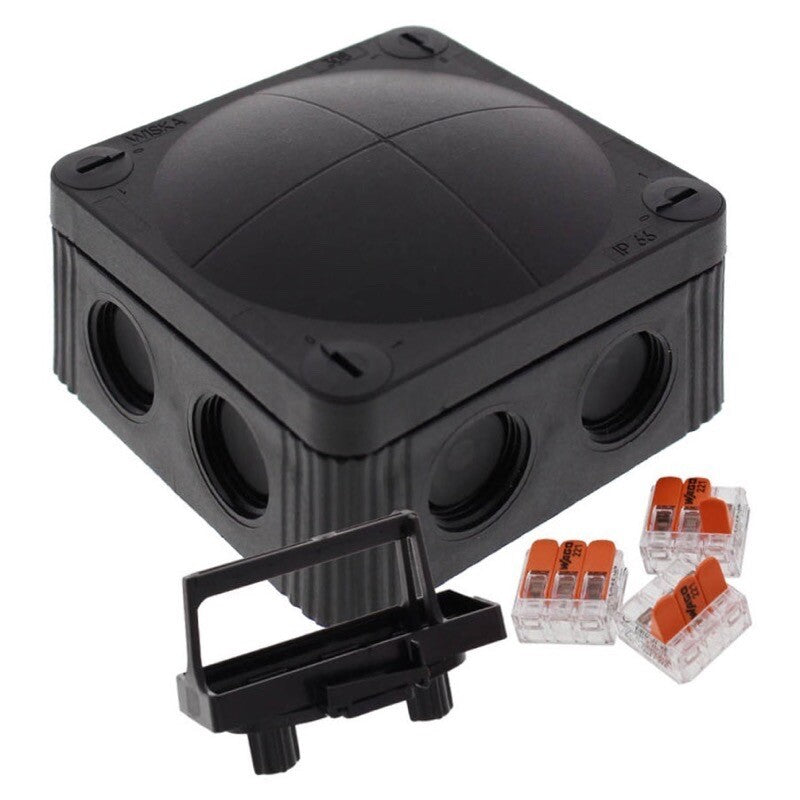

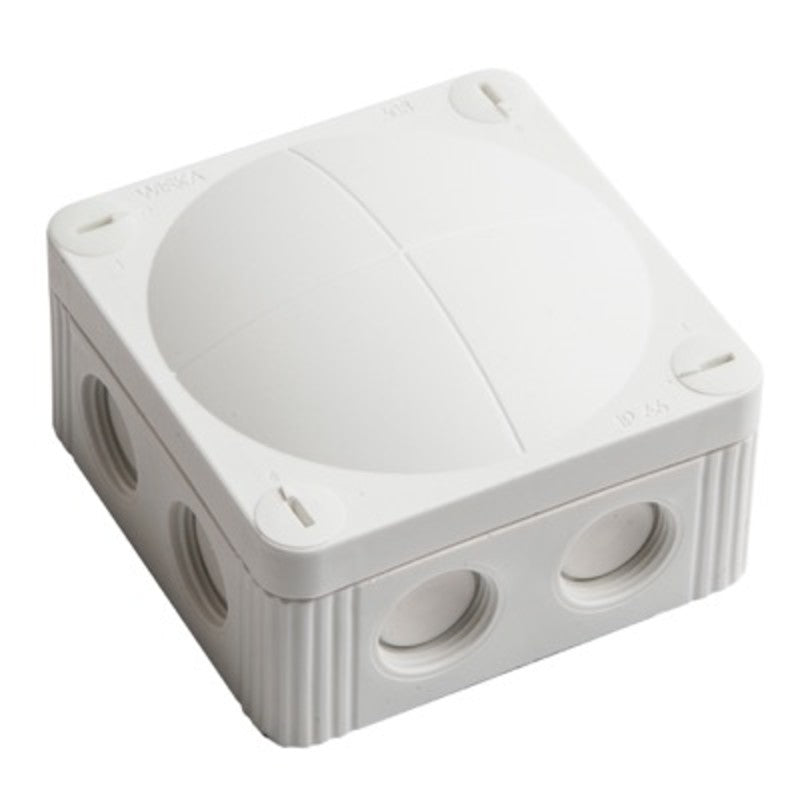

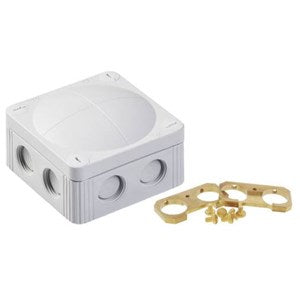

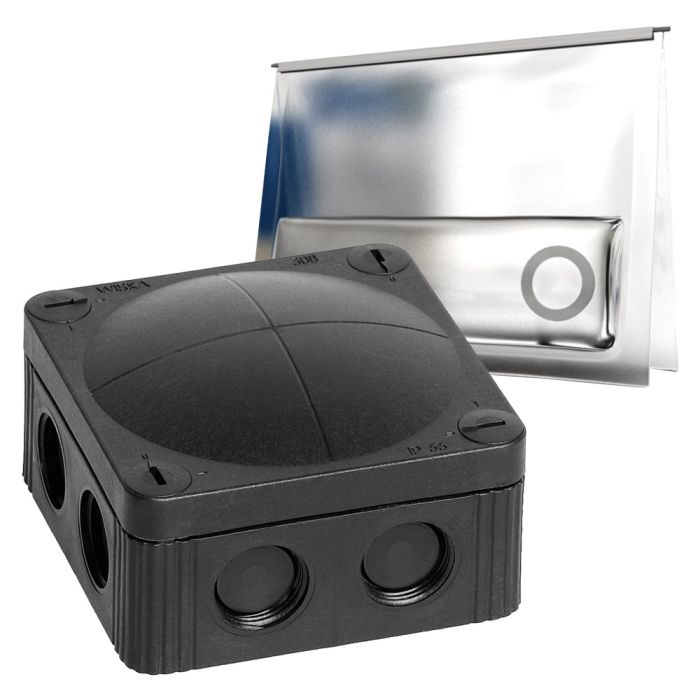

COMBI 308

Features:

• 8 M20 threaded membrane entries
• 4 captive cover screws
• including mounting clip

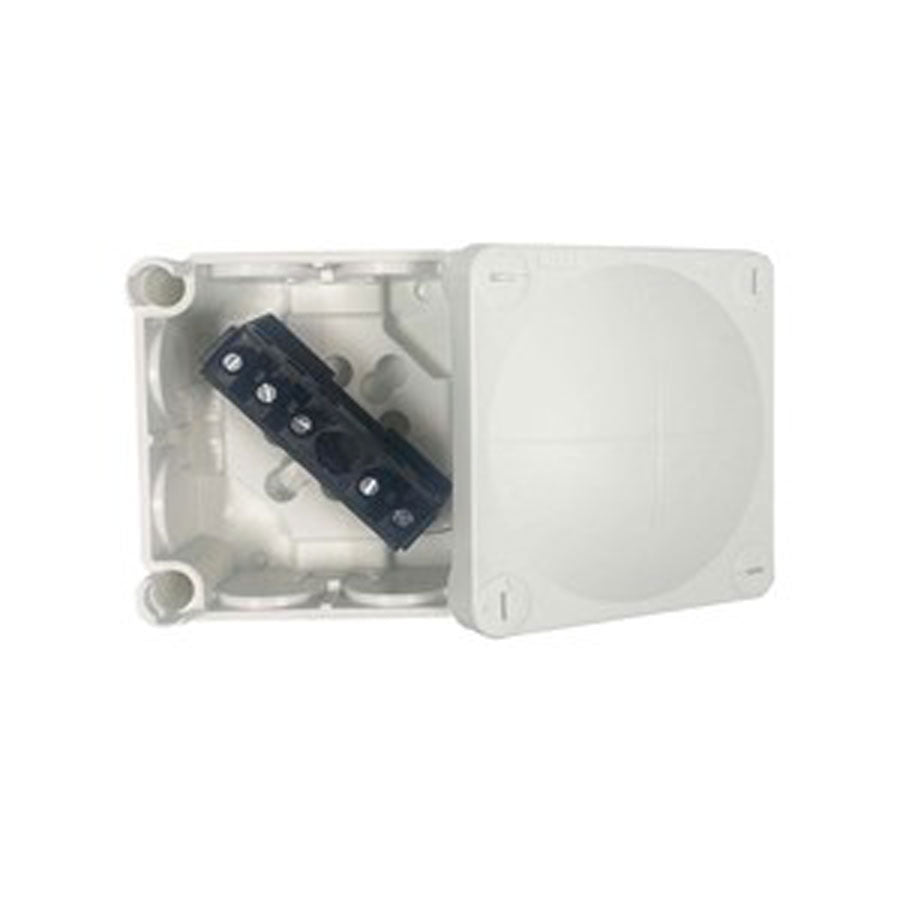

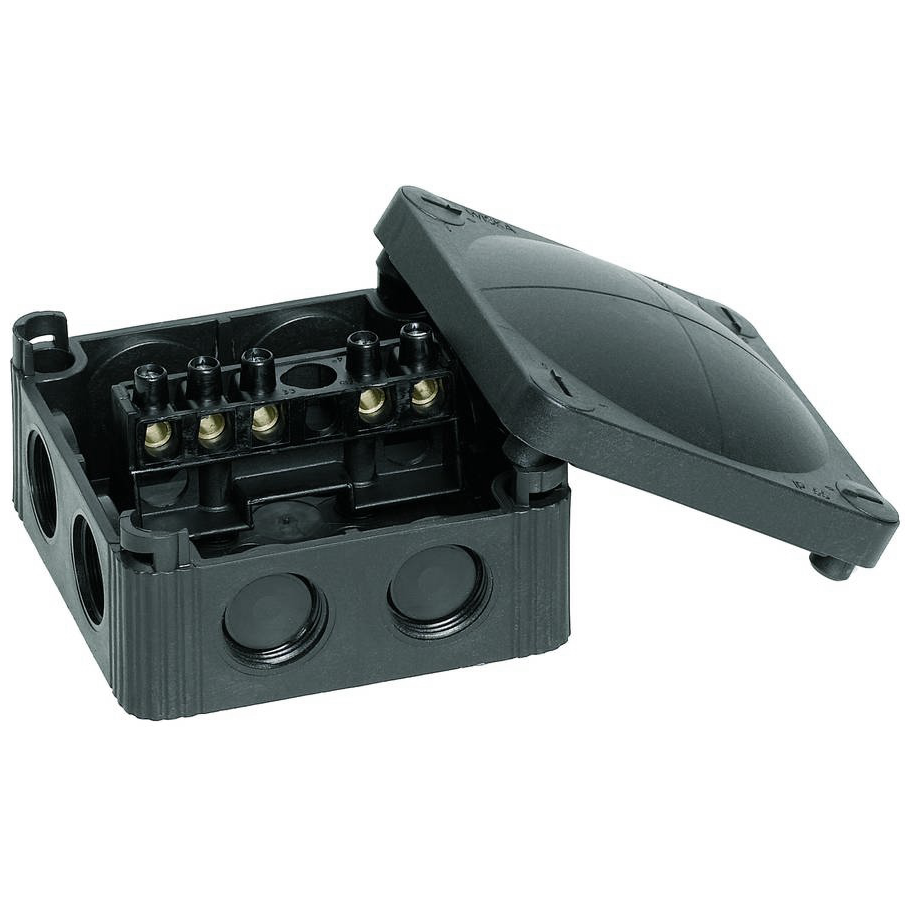

• optional terminal block 5-poles, 4mm²
• optional terminal carrier on quick mounting plate mounted with 3x WAGO 221-413
• optional silicone gel sealing compound in practical mixing bag, Plastic sprue for easy removal, screw plug

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66: using the membrane entry, IP67: using the threaded entry together with ESKV cable gland
Glow wire test    750 °C
Voltage    400 V
Rated cross section    4 mm²
Fixing   With mounting clip or 4 internal openings outside of the sealing area
Ø cable diameter min    3 mm
Ø cable diameter max    12 mm
External dimensions LxWxH    85 x 85 x 51mm
Type of cable gland    M 20 x 1,5

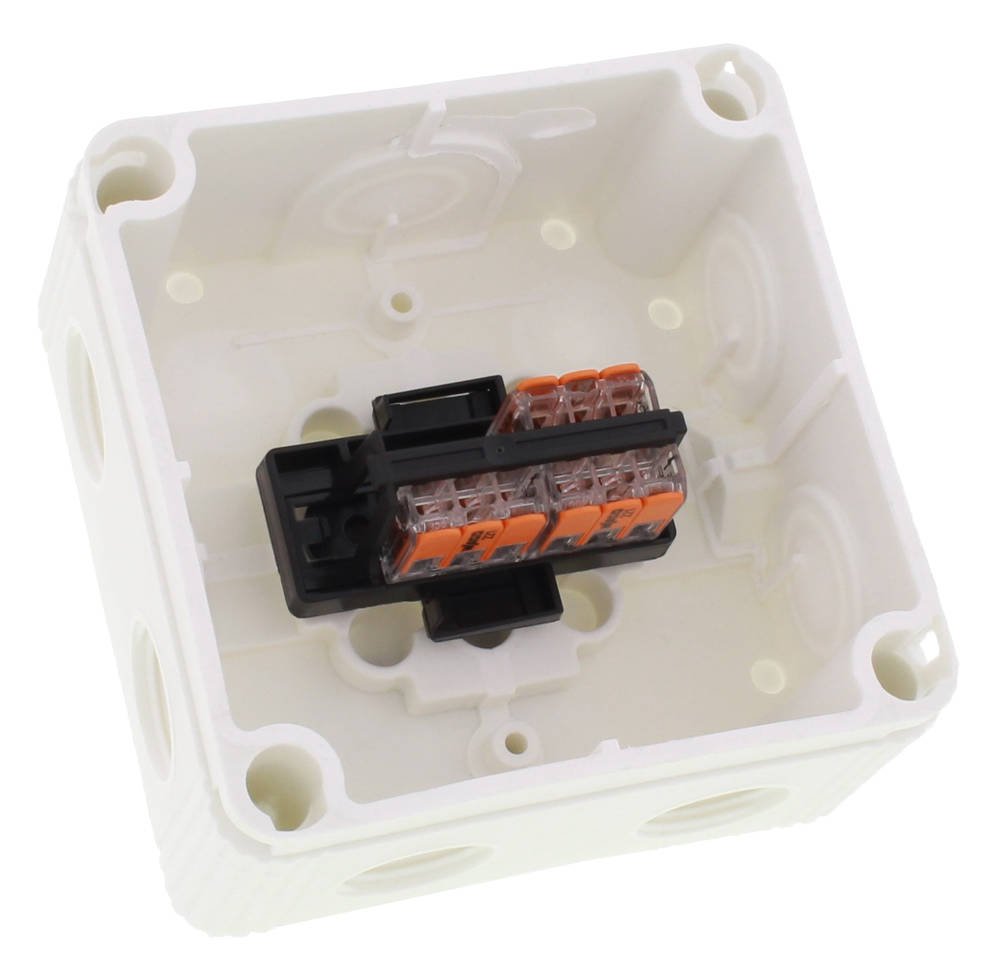

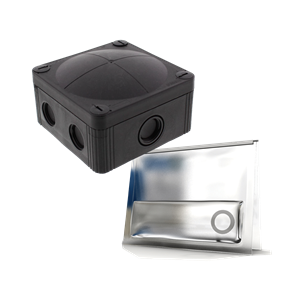

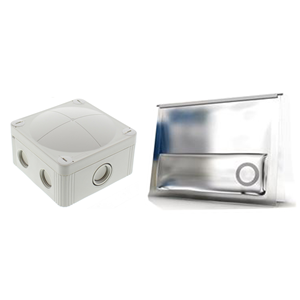

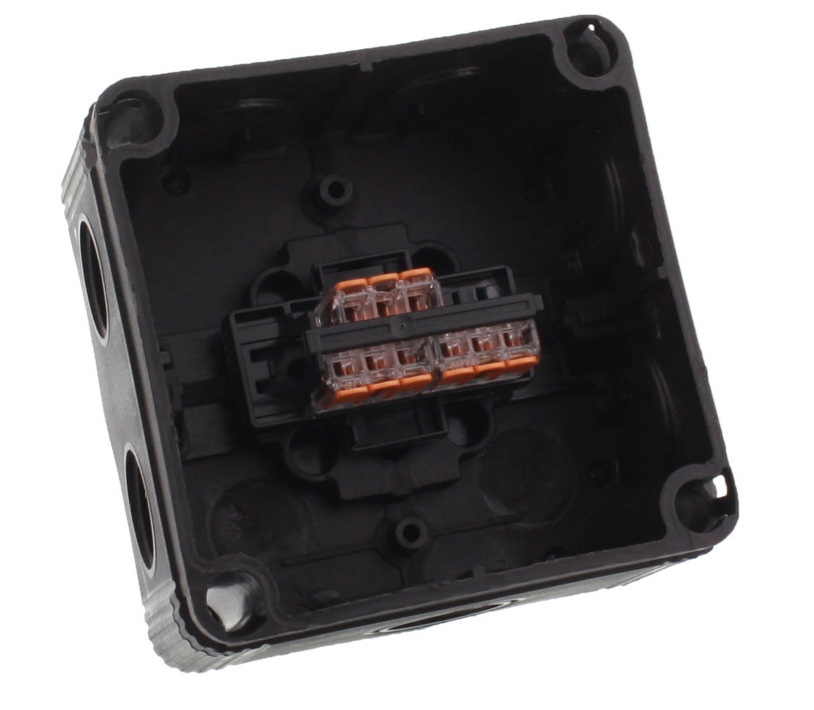

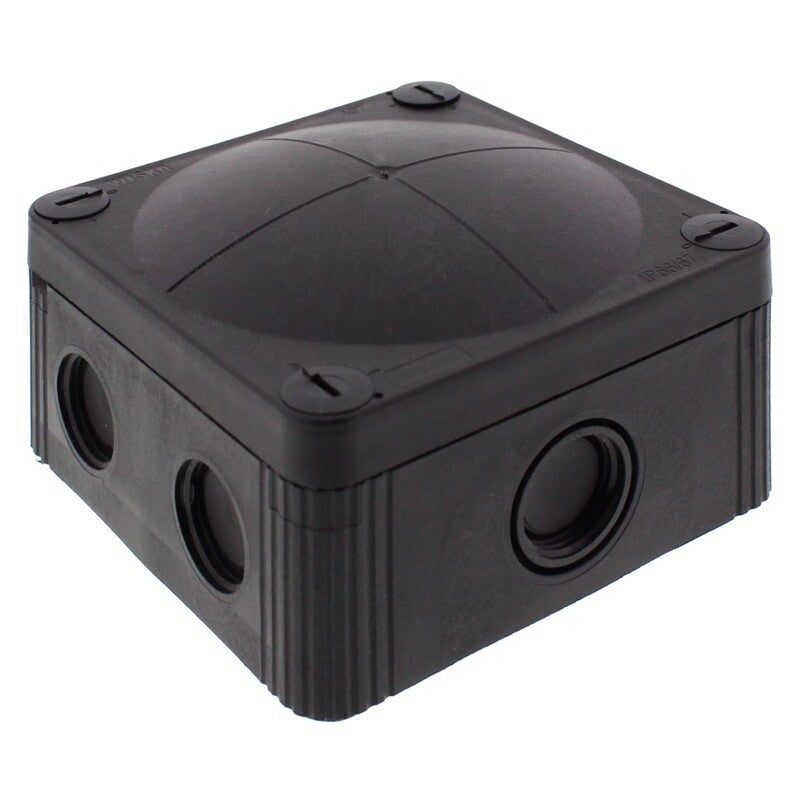

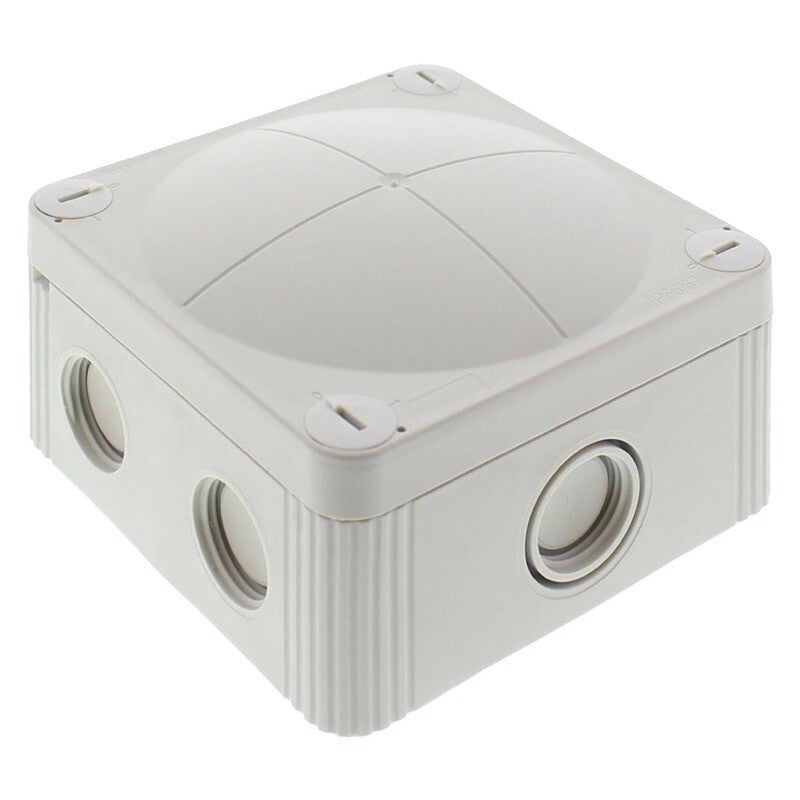

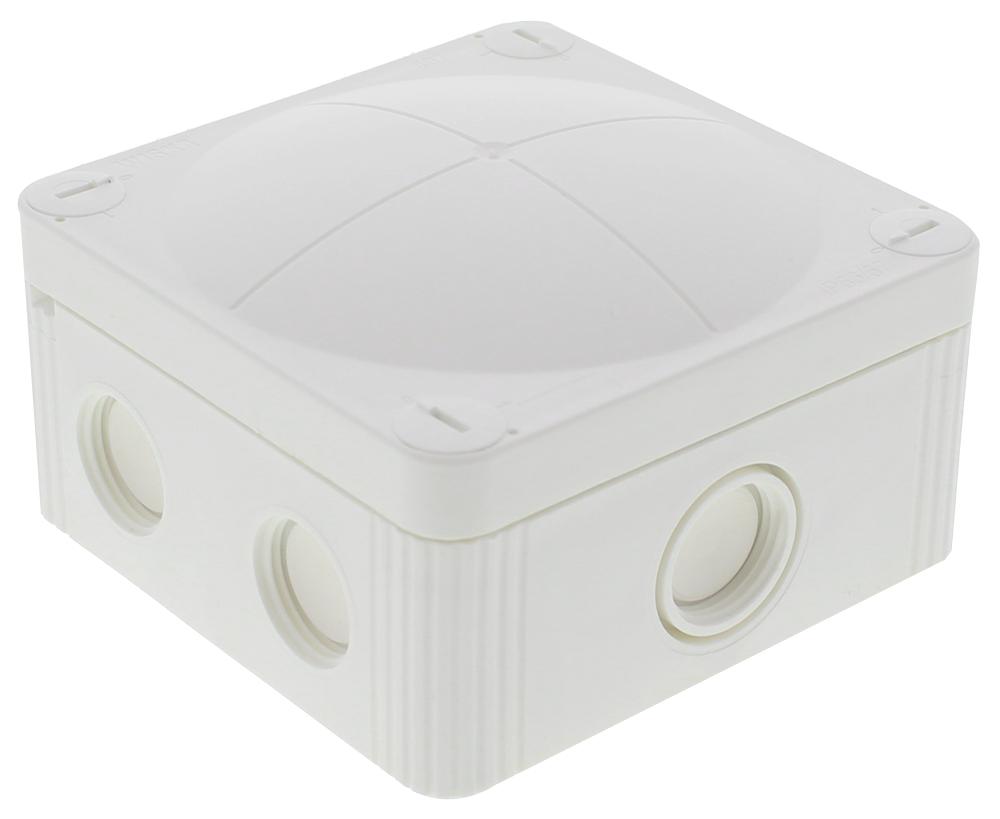

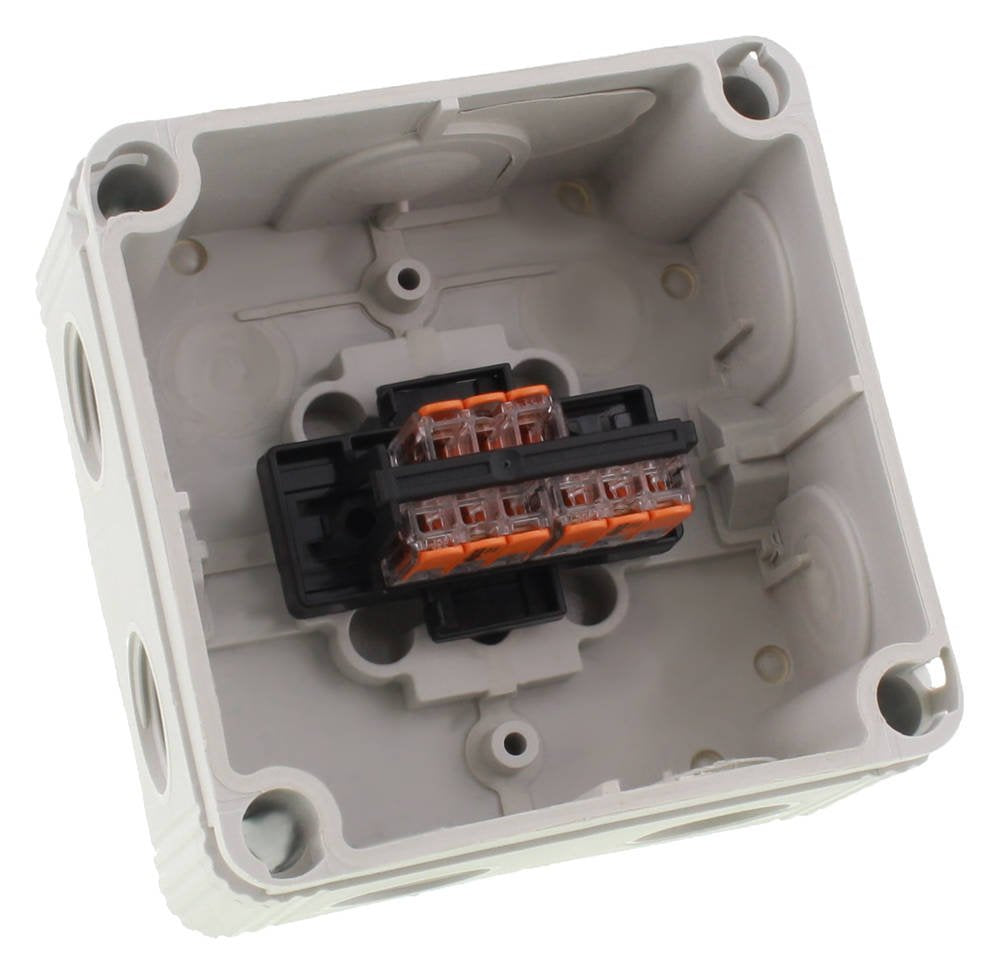

COMBI 407

Features:

• 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
• 2 membrane cable entries through rear
• 4 captive cover screws
• including mounting clip
• optional terminal block 5-poles, 4mm²
• optional terminal carrier on quick mounting plate mounted with 3x WAGO 221-413
• optional silicone gel sealing compound in practical mixing bag, Plastic sprue for easy removal, screw plug

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66: using the membrane entry, IP67: using the threaded entry together with ESKV cable gland
Glow wire test    750 °C
Voltage    690 V
Rated cross section    4 mm²
Fixing    With mounting clip or 4 internal openings outside of the sealing area
Ø cable diameter min    3 mm
Ø cable diameter max    12 mm
External dimensions LxWxH    95 x 95 x 60mm
Type of cable gland    M 20 x 1,5, M 25 x 1,5

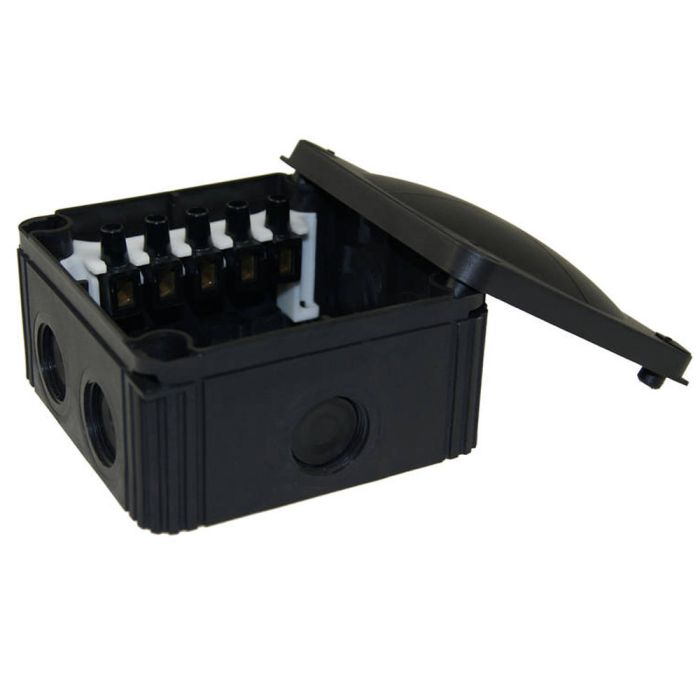

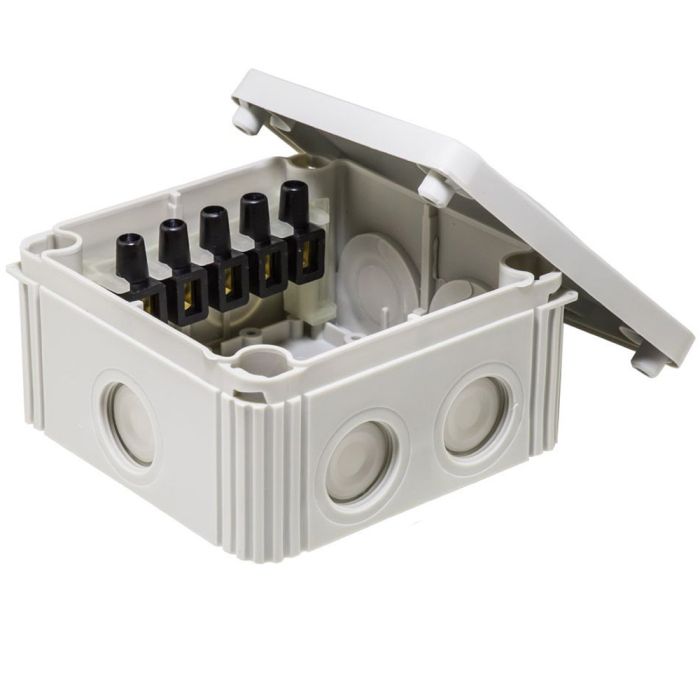

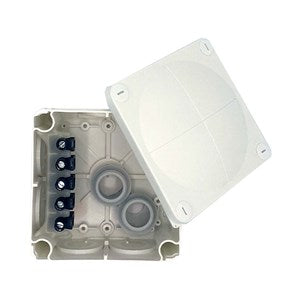

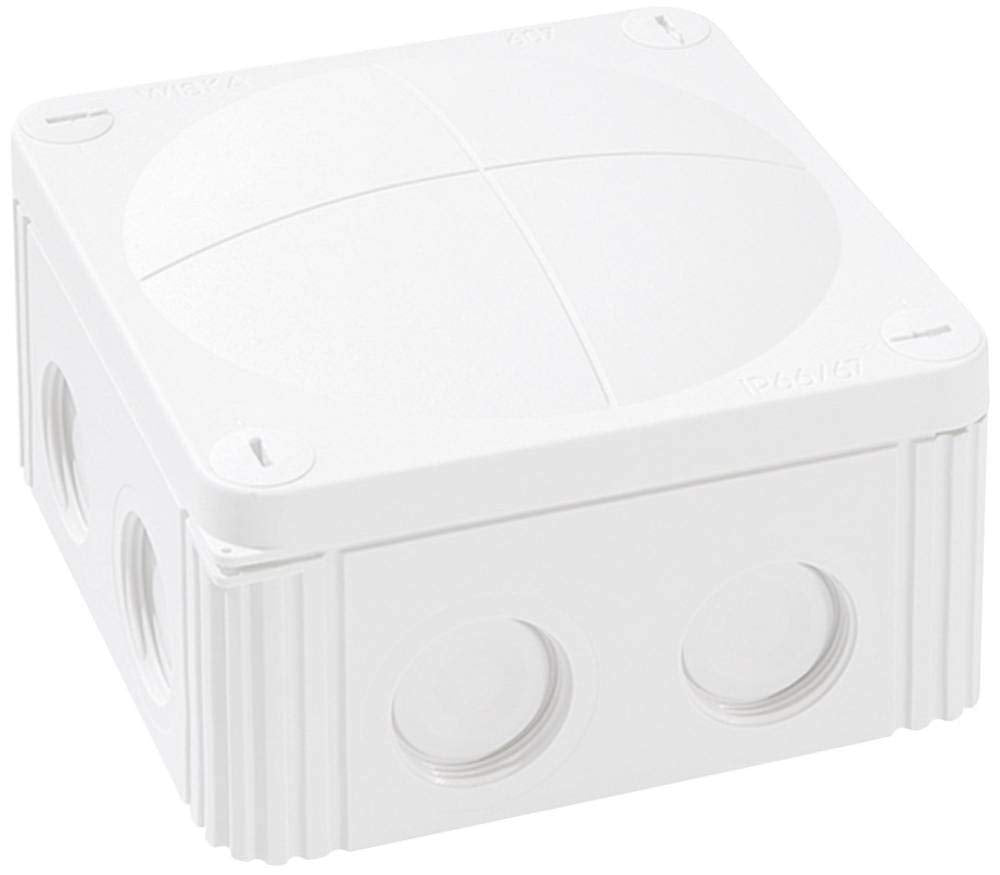

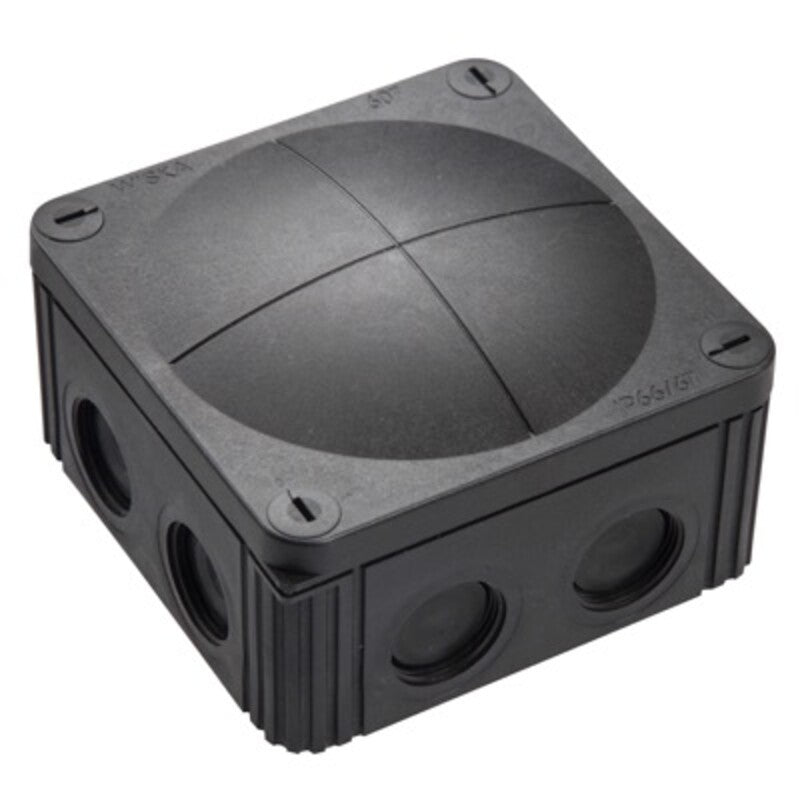

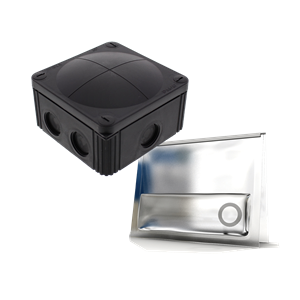

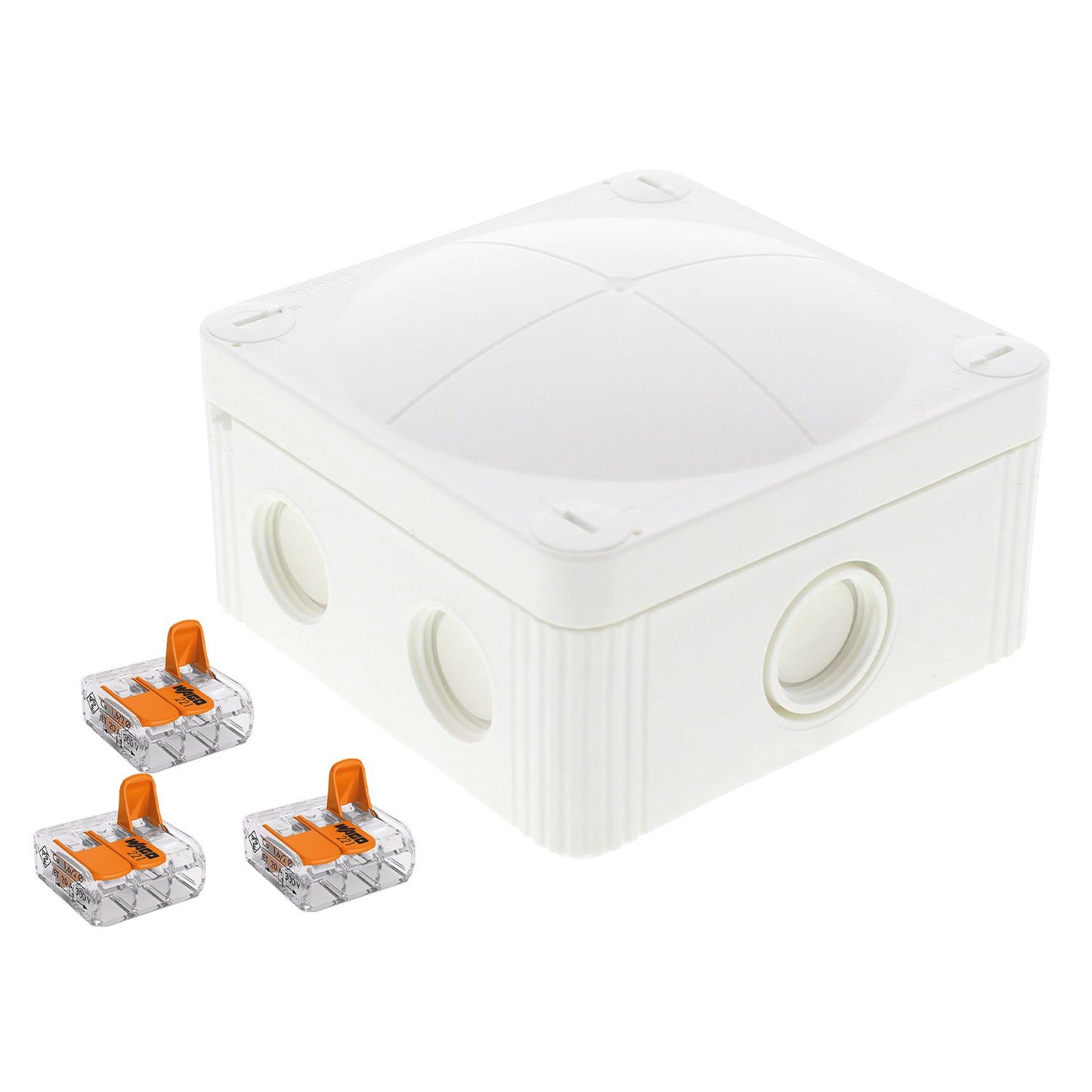

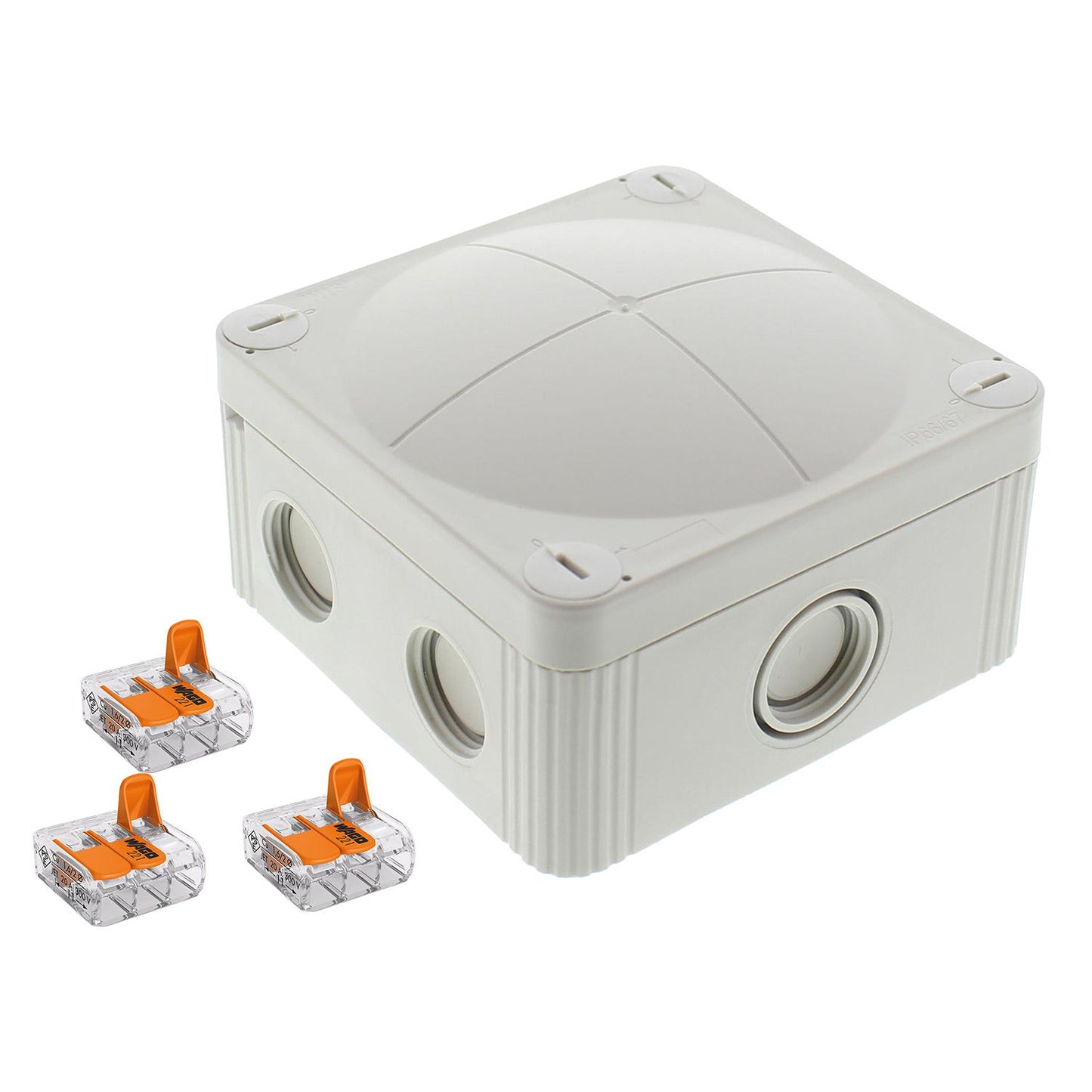

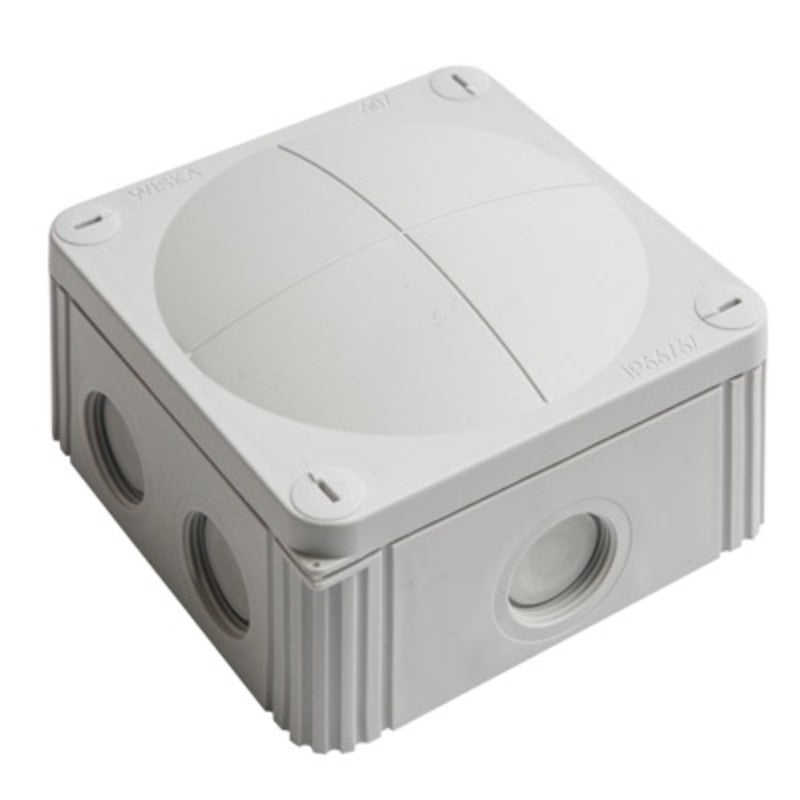

COMBI 607

Features:

• 7 M25 threaded membrane entries
• 3 membrane cable entries through rear
• 4 captive cover screws
• optional terminal block 5-pole, 6mm² and 2 reduction adaptors KRM 25/20

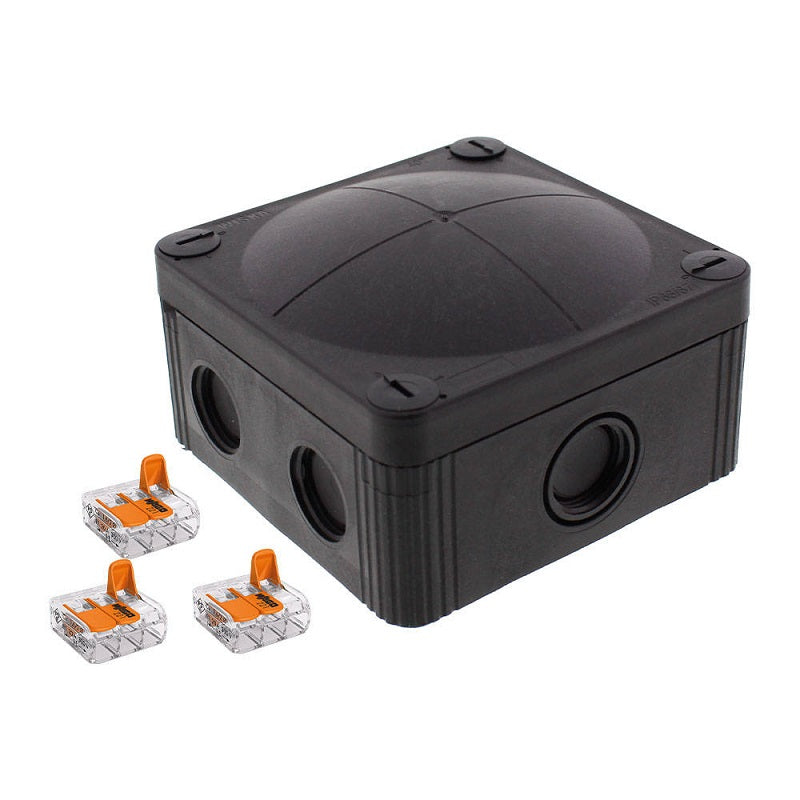

• optional terminal carrier with 3x WAGO 221-613

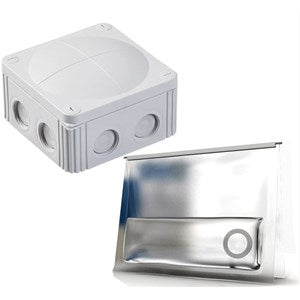

• optional silicone gel sealing compound in practical mixing bag, Plastic sprue for easy removal, screw plug

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66: using the membrane entry, IP67: using the threaded entry together with ESKV cable gland
Glow wire test    750 °C
Voltage    690 V
Rated cross section    6 mm²
Fixing    4 internal openings outside of the sealing area
Ø cable diameter min    5,2 mm
Ø cable diameter max    17 mm
External dimensions LxWxH    110 x 110 x 66mm

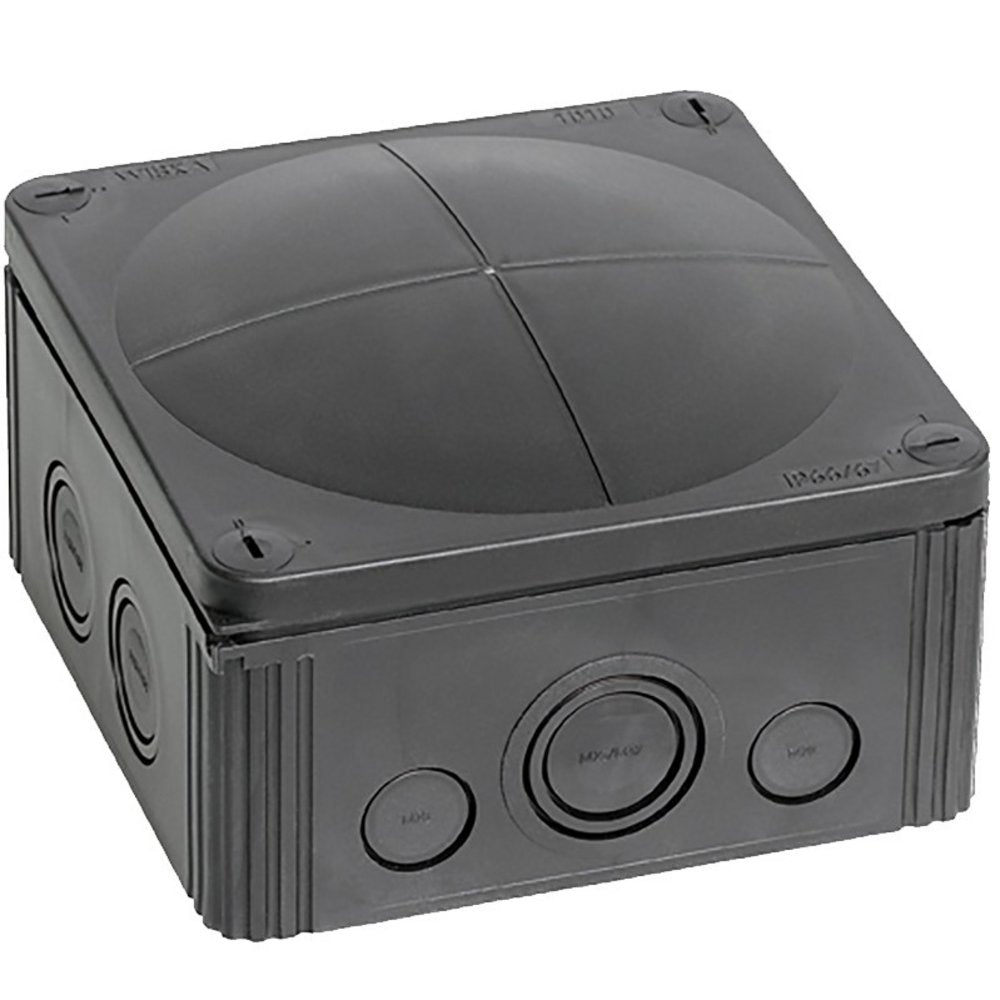

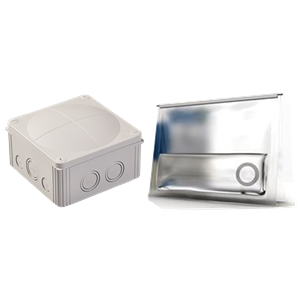

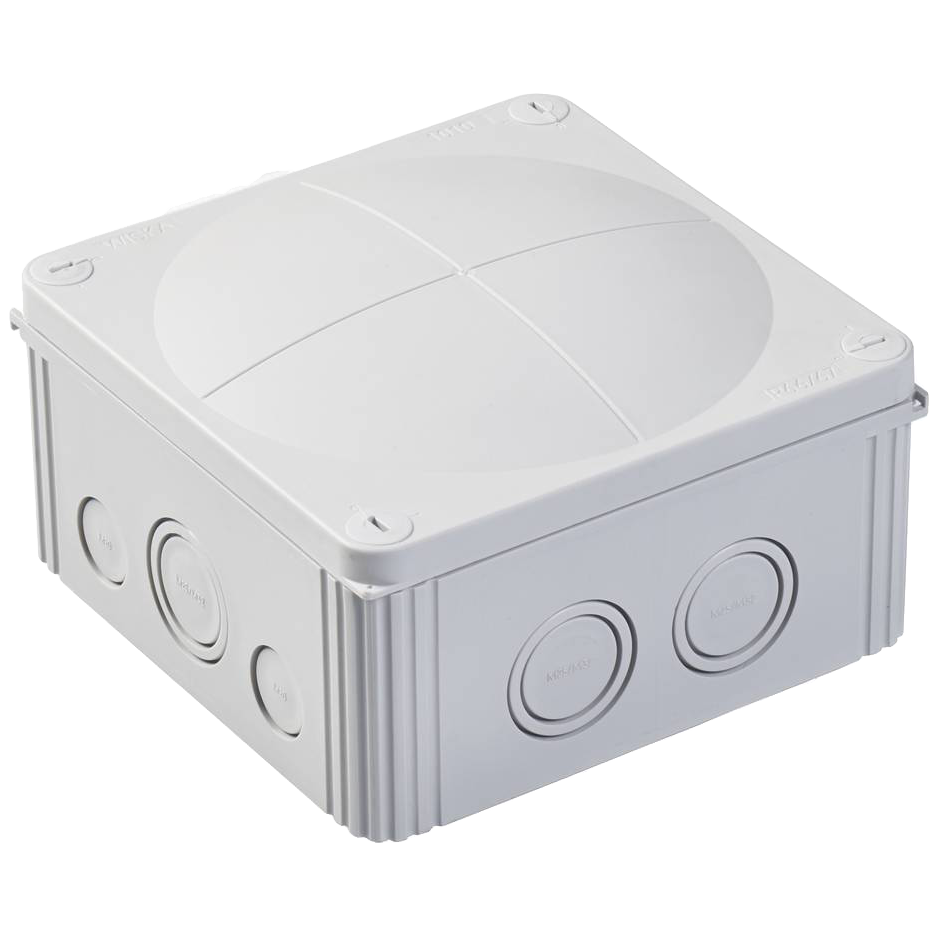

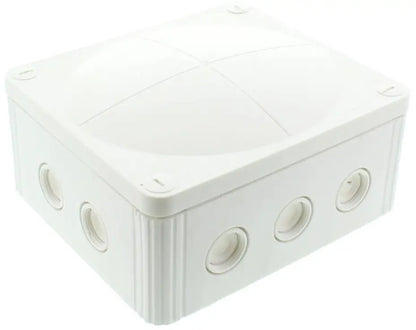

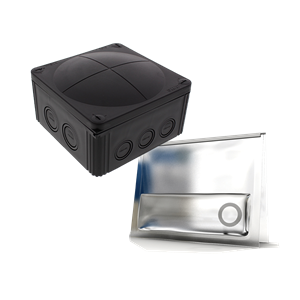

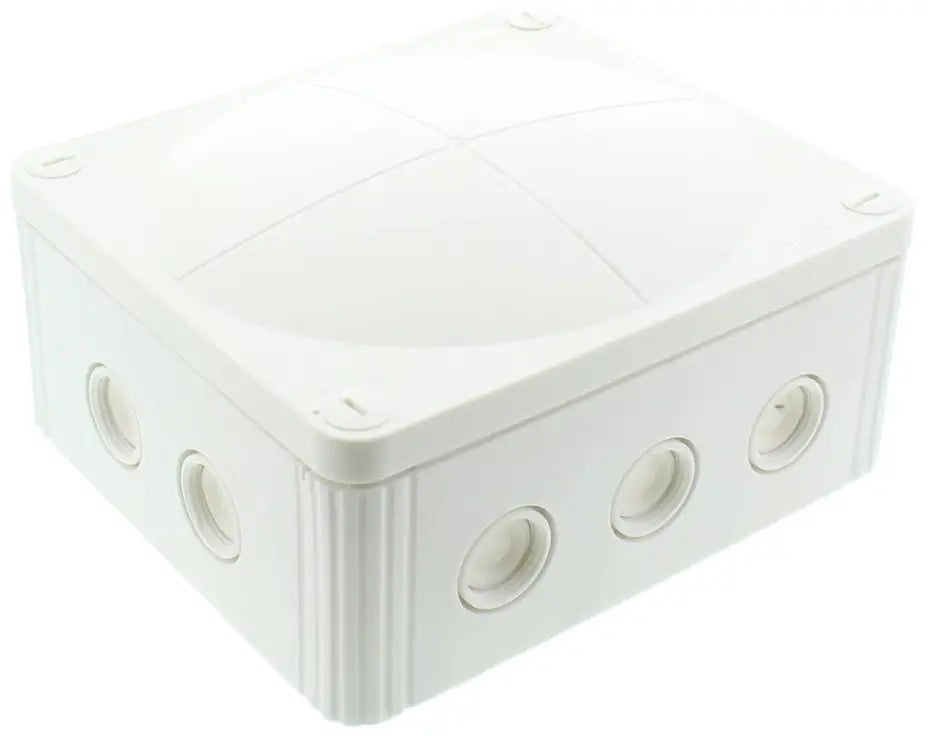

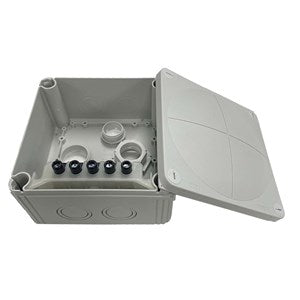

COMBI 1010

Features:

• 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M25
• 4 knockouts in the bottom 2x M25/M32; 2x M20/M25
• 4 captive cover screws
• including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
• optional terminal block 5-poles, 10mm²
• optional silicone gel sealing compound in practical mixing bag, Plastic sprue for easy removal, screw plug

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66: using the QUIXX self sealing membrane screw, IP67: using the knockout entry together with ESKV cable gland
Glow wire test    750 °C
Voltage    690 V
Rated cross section    10 mm²
Fixing    4 internal openings outside of the sealing area
Ø cable diameter min    6 mm
Ø cable diameter max    21 mm
External dimensions LxWxH    140 x 140 x 82mm

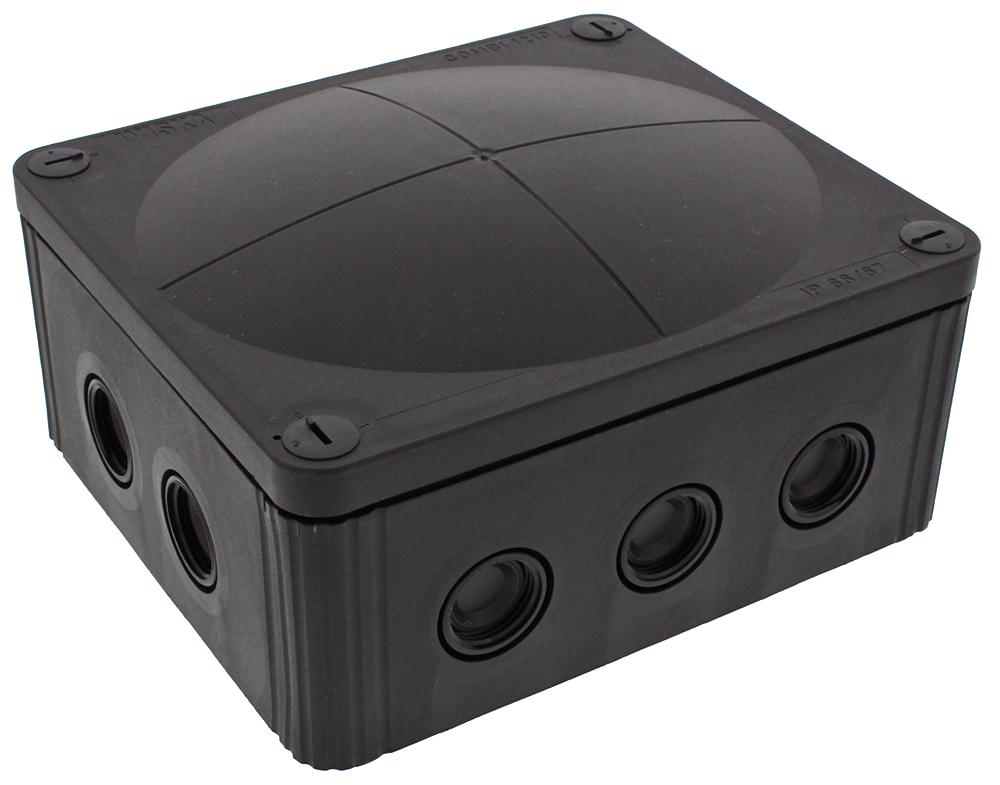

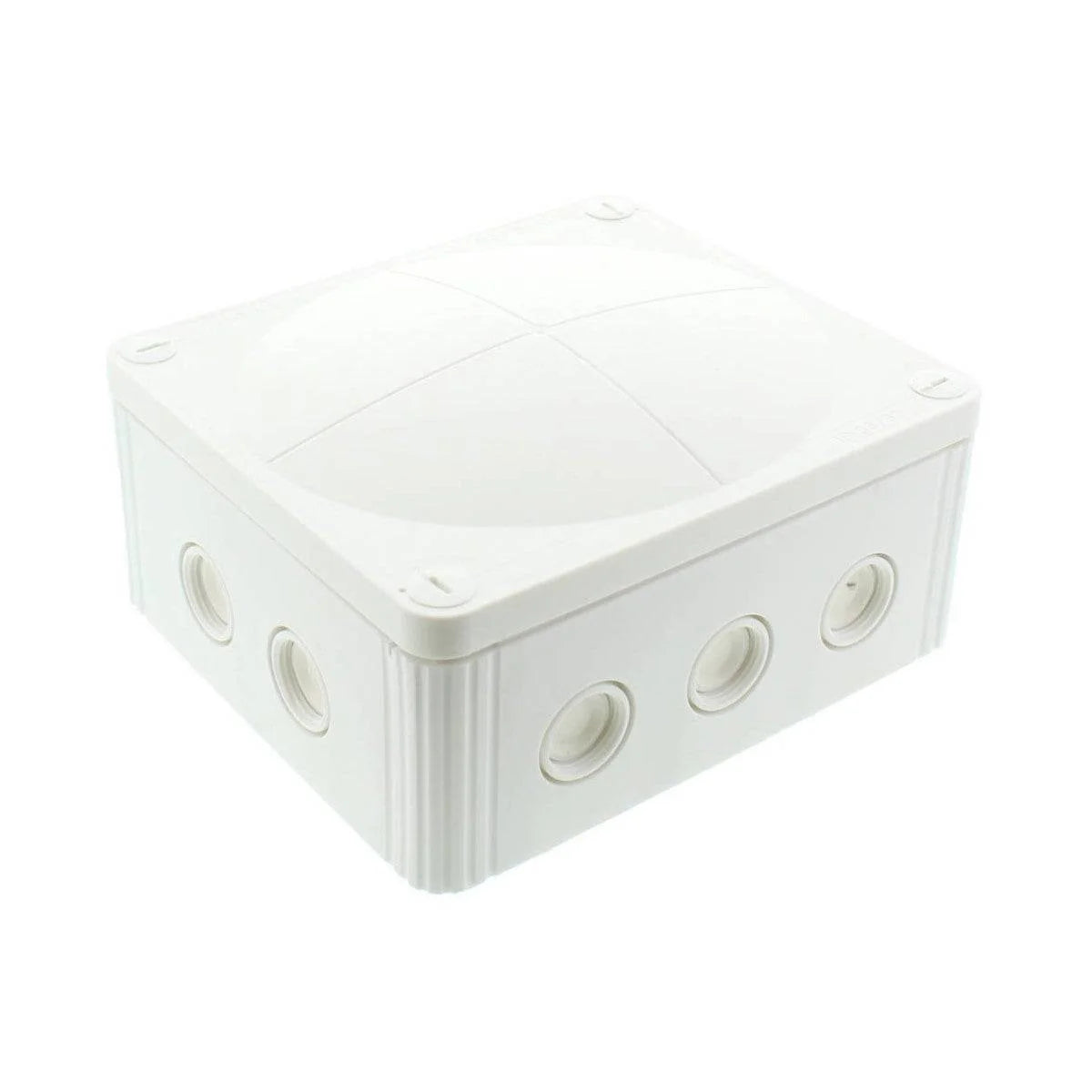

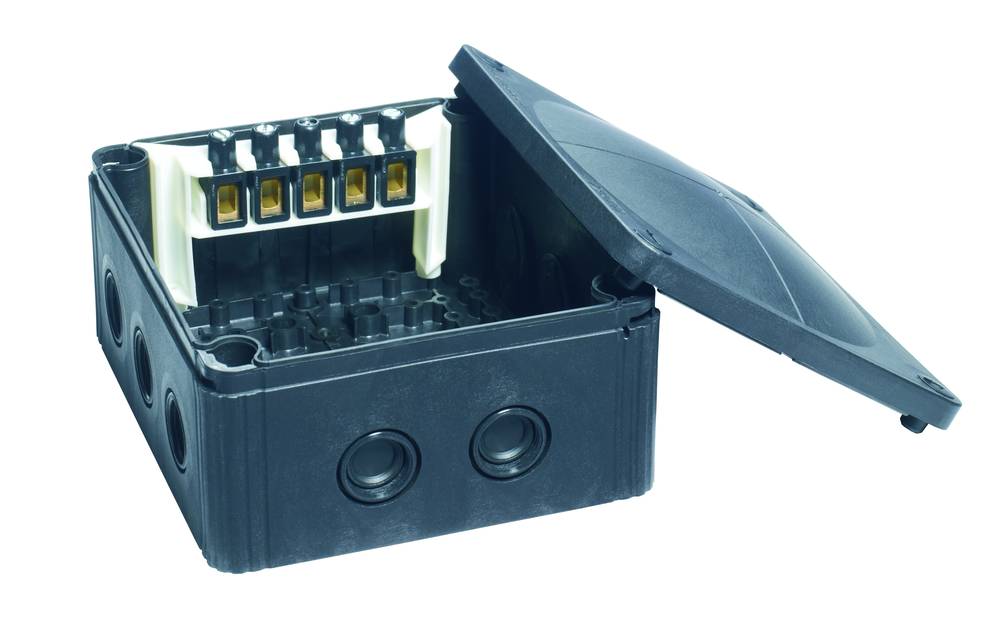

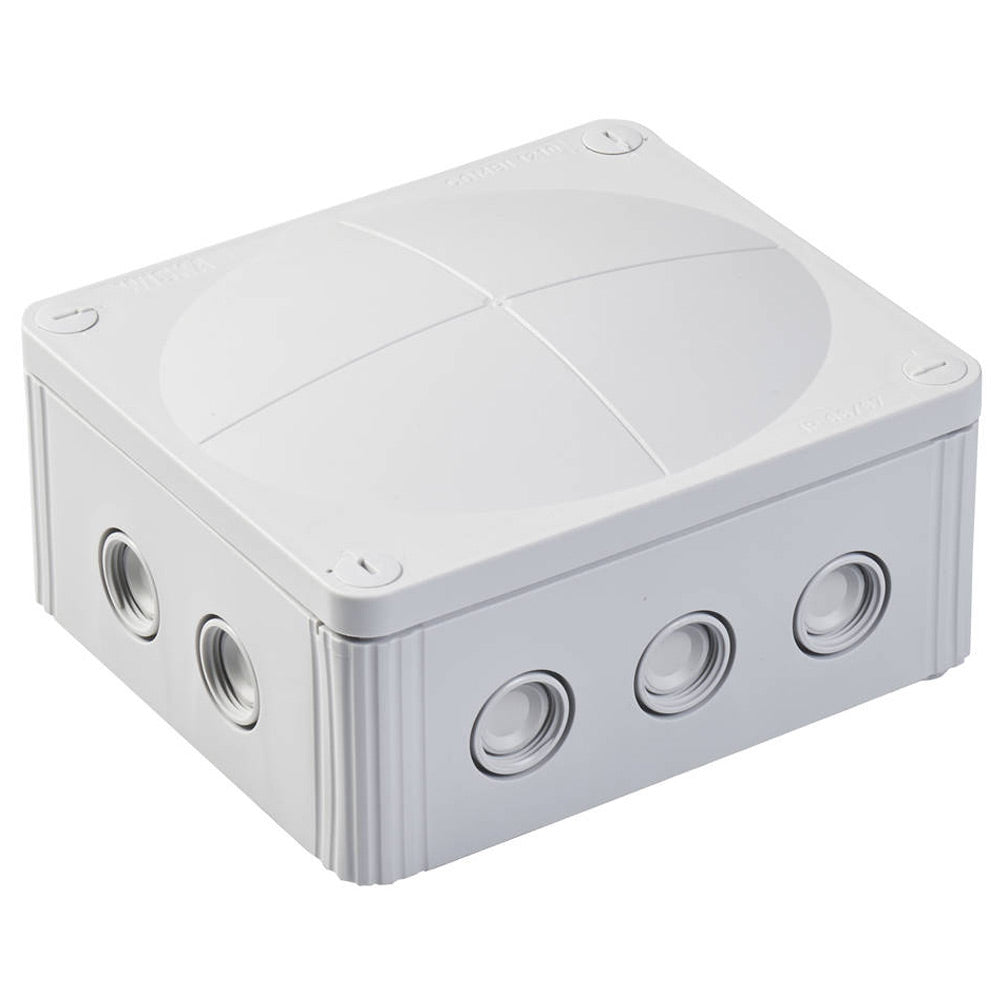

COMBI 1210

Features:

• 10 M20 threaded membrane entries and M25 knockouts
• 4 membrane cable entries through rear
• 4 captive cover screws
• optional terminal block 5-poles, 10mm²

Specifications:

Material    Polypropylene
Material sealing gasket    TPE
Temp. range min    -30 °C
Temp. range max    100 °C
Temperatures during install.    -5 °C - 60 °C
Protection class    IP66: using the membrane entry, IP67: using the threaded entry together with ESKV cable gland
Glow wire test    750 °C
Voltage    690 V
Rated cross section    10 mm²
Fixing    4 internal openings outside of the sealing area
Ø cable diameter min    3 mm
Ø cable diameter max    12 mm
External dimensions LxWxH    160 x 140 x 81mm
