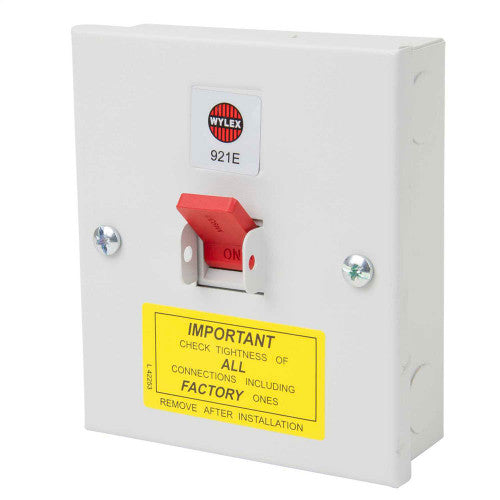

Wylex 921E Metal Clad Enclosed 32A TP Switch with Switched Neutral

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Wylex 921E Metal Clad Enclosed 32A TP Switch with Switched Neutral Features & Benefits:

• Enclosed four pole Isolator
• 32A
• Padlockable
• All metal enclosure

Wylex 921E Metal Clad Enclosed 32A TP Switch with Switched Neutral Specifications:

Version as main switch No
Version as maintenance-/service switch Yes
Max. rated operation voltage Ue AC 400 V
Rated operating voltage 230-400 V
Rated permanent current Iu 32 A
Conditioned rated short-circuit current Iq 16 kA
Number of poles 3
Motor drive optional No
Voltage release optional No
Suitable for distribution board installation No
Type of control element Toggle
Interlockable No
Type of electrical connection of main circuit Screw connection
Degree of protection (IP), front side IP20
Product Standard/s BS EN 60947-3
Terminal Capacity L&N 10 mm²
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Height 133 mm
Width 114 mm
Depth 45 mm
