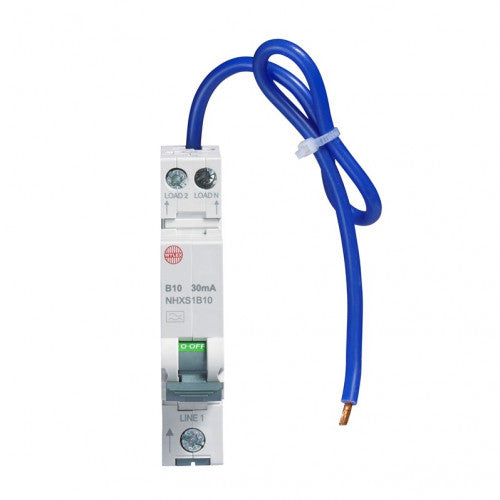

Wylex NHXS 30mA SPswN B Curve 6kA Type A Miniature RCBO's

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends)

The Wylex NHXS range are single module, Miniature RCBO's designed to fit the Wylex NM & NMX consumer units and NH L range Distribution Boards.

Wylex NHXS B Curve 6kA Type A Miniature RCBO's Features & Benefits:

• Single module, Miniature RCBO
• B curve
• 30mA
• Type A
• Single pole with switched neutral
• No miss busbar connection
• Fits NM & NMX consumer units and NH L range Distribution Boards



Wylex NHXS B Curve 6kA Type A Miniature RCBO's Specification:

Number of poles (total) 2
Number of protected poles 1
Rated voltage 230 V
Rated insulation voltage Ui 400 V
Rated impulse withstand voltage Uimp 4 kV
Rated current 6A-40A
Rated fault current 0.03 A
Leakage current type A
Current limiting class 3
Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA
Disconnection characteristic Undelayed
Voltage type AC
Frequency 50 Hz
Release characteristic B
Concurrently switching neutral conductor Yes
With interlocking device No
Over voltage category 3
Ambient temperature during operating -5 - 40 °C
Width in number of modular spacings 1
Built-in depth 73 mm
Flush-mounted installation No
Anti-nuisance tripping version No
Degree of protection (IP) IP20
Connectable conductor cross section solid-core .75-16 mm²
Connectable conductor cross section multi-wired .75-16 mm²
Product Standard/s IEC 61009-1
CE Conformity Yes
WEEE Symbol Yes

UKCA Conformity Yes
