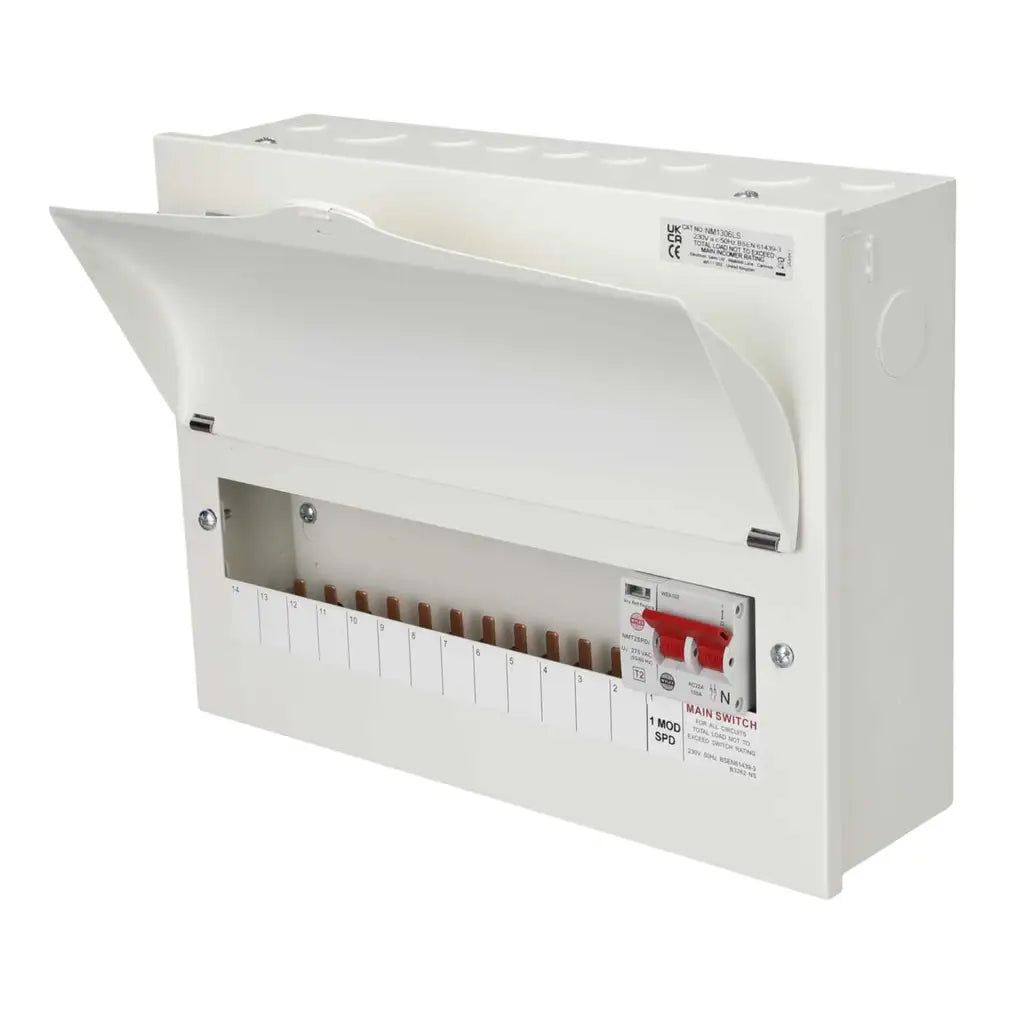

Wylex NM1306LS 13 Way Metal Clad Consumer Unit with 100A Main Switch & SPD

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Wylex NM1306LS 13 Way Metal Clad Consumer Unit with 100A Main Switch & SPD Features & Benefits:

• Full metal enclosure
• Fixed busbar assembly
• 13W Main switch only
• Type 2 miniature SPD

Wylex NM1306LS 13 Way Metal Clad Consumer Unit with 100A Main Switch & SPD Specifications:

Mounting method Surface mounted (plaster)
Number of phases 1
Protection Miniature- / earth leakage circuit breaker
Total number of groups 1
Number of poles main switch 2
Main switch rated current 100 A
Over voltage protection Yes
Material housing Steel
Degree of protection (IP) IP2XC
Height 261 mm
Width 343 mm
Width in number of modular spacings 16
Depth 121 mm
Extension possible No
With transparent cover No
Lockable Yes
Product Standard/s BS EN 61439-3
Frequency 50 Hz
CE Conformity Yes
WEEE Symbol Yes
Amperage 100 A
Operating Voltage 230 V
Type of Current AC
Consumer Unit Type Main switch only
Total final circuit modular ways 13
Busbar type Fixed
Main switch rating 100 A
Main switch final circuit modular ways 14

Surge protection device type 2

Colour RAL 9010
