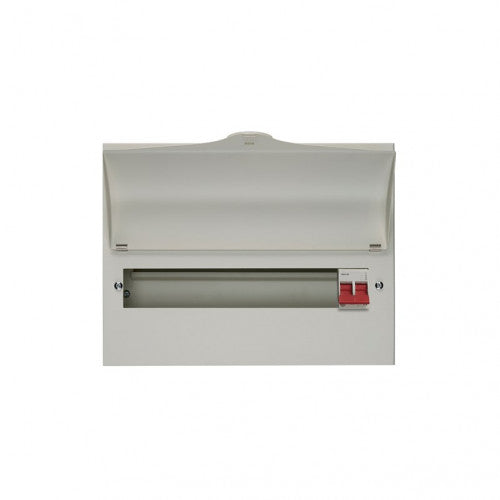

Wylex NM1406L 14 Way Metal Clad Consumer Unit with 100A Main Switch

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

Wylex NM1406L 14 Way Metal Clad Consumer Unit with 100A Main Switch Features & Benefits:

• 14W Main switch only consumer unit
• Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly
• Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs
• Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1
• Constructed from a full metal enclosure with curved visor and temporary locking facility

Wylex NM1406L 14 Way Metal Clad Consumer Unit with 100A Main Switch Specifications:

Mounting method Surface mounted (plaster)
Number of phases 1
Protection Miniature- / earth leakage circuit breaker
Total number of groups 1
Number of poles main switch 2
Main switch rated current 100 A
Over voltage protection No
Material housing Steel
Degree of protection (IP) IP2XC
Height 261 mm
Width 343 mm
Width in number of modular spacings 16
Depth 121 mm
Extension possible No
With transparent cover No
Lockable Yes
Product Standard/s BS EN 61439-3
Frequency 50 Hz
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Amperage 100 A
Operating Voltage 230 V
Type of Current AC
Consumer Unit Type Main switch only
Total final circuit modular ways 14
Busbar type Fixed
Main switch rating 100 A
Main switch final circuit modular ways 14

Colour RAL 9010
