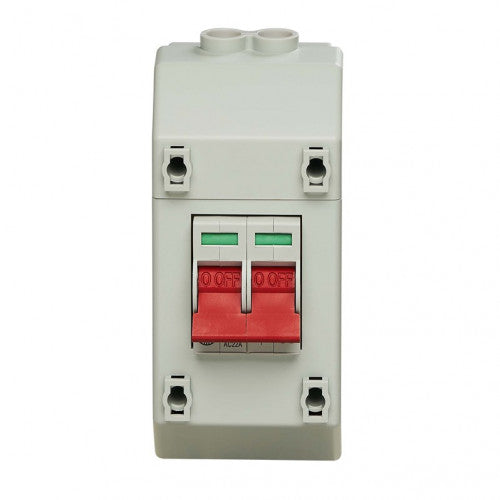

Wylex REC2 100A DP Slimline Lockable Enclosed Switch Disconnector

3-5 Days Delivery.

Next day delivery available at check-out (If ordered before 2pm, excludes weekends).

Wylex REC2 Enclosed, Slimline Insulated, 100A DP Supply Isolator Features & Benefits:

• 100A Double pole switch disconnector
• Slimline 3 part seal and secure enclosure
• Lockable switch handle

Wylex REC2 Enclosed, Slimline Insulated, 100A DP Supply Isolator Full Specifications:

Version as main switch No
Version as maintenance-/service switch Yes
Max. rated operation voltage Ue AC 400 V
Rated operating voltage 230-400 V
Rated permanent current Iu 100 A
Conditioned rated short-circuit current Iq 16 kA
Number of poles 2
Motor drive optional No
Voltage release optional No
Suitable for distribution board installation No
Type of control element Toggle
Interlockable No
Type of electrical connection of main circuit Screw connection
Degree of protection (IP), front side IP20
Product Standard/s     BS EN 60947-3
Terminal Capacity L&N 50 mm²
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Height 149 mm
Width 63 mm
Depth 63 mm
