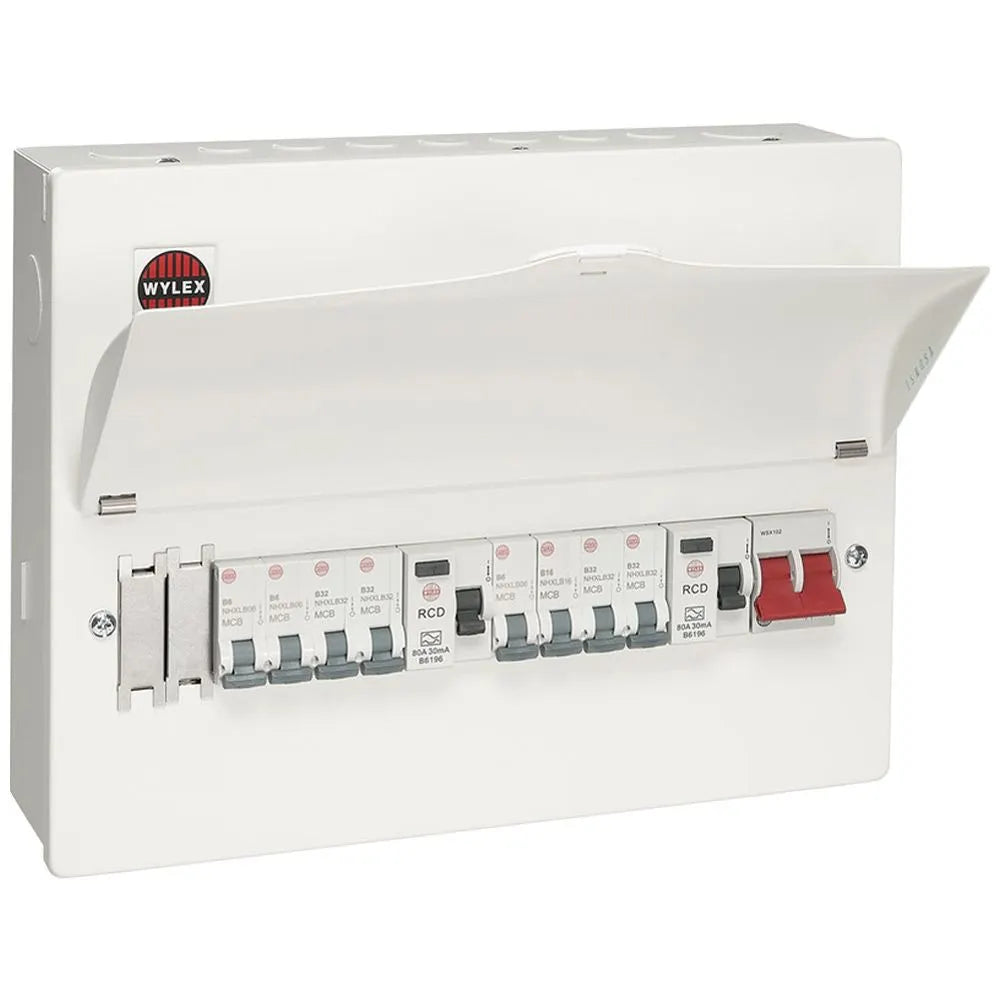

Wylex WNM1769 10 Way Fully Loaded Consumer Unit with MS, 2 RCDs & 8 MCBs

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

The Wylex WNM1769 is a 10 Way High Integrity Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration with 8 MCBs

Wylex WNM1769 10 Way Fully Loaded Consumer Unit with MS, 2 RCDs & 8 MCBs Features & Benefits:

• 10 Way Flexible configuration as Dual RCD or High Integrity, space for RCBOs. NM Range.
• 100A Twin terminal Main Isolator
• 80A 30mA Type A RCDs
• Curved Visor with temporary locking facility
• Populated with 8 Type B Miniature Circuit Breakers (3x6A, 1x16A, 4x32A) and 2 blanks

Wylex WNM1769 10 Way Fully Loaded Consumer Unit with MS, 2 RCDs & 8 MCBs Specifications:

Mounting method Surface mounted (plaster)
Number of phases 1
Protection Miniature- / earth leakage circuit breaker
Total number of groups 3
Number of poles main switch 2
Main switch rated current 100 A
Over voltage protection No
Material housing Steel
Degree of protection (IP) IP2XC
Height 261 mm
Width 343 mm
Width in number of modular spacings 16
Depth 121 mm
Extension possible No
With transparent cover No
Lockable Yes
Product Standard/s BS EN 61439-3
Frequency 50 Hz
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Amperage 100 A
Operating Voltage 230 V
Type of Current AC
Consumer Unit Type High integrity
Total final circuit modular ways 10
Busbar type Flexible
Main switch rating 100 A
Main switch final circuit modular ways Flexible

RCD 1 80A 30mA type A
RCD 1 final circuit modular ways Flexible
RCD 2 80A 30mA type A
RCD 2 final circuit modular ways Flexible
Colour RAL 9010
