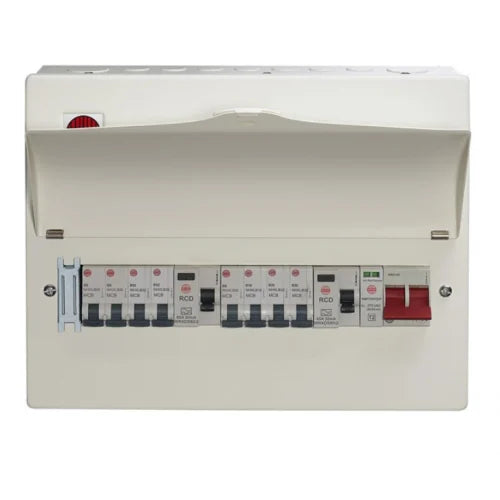

Wylex WNM1772/1 9 Way Fully Loaded Consumer Unit with SPD, MS, 2 RCDs & 8 MCBs

*Free next day delivery for orders over £200*

(Orders must be placed before 2pm, excludes weekends)

The Wylex WNM1772/1 is a 9 Way High Integrity Consumer Unit 100A Main Switch, 80A
30mA RCDs, Flexible Configuration, with SPD & 8 MCBs

Wylex WNM1772/1 9 Way Fully Loaded Consumer Unit with SPD, MS, 2 RCDs & 8 MCBs Features & Benefits:

• 9 Way Flexible configuration as Dual RCD or High Integrity, space for RCBOs
• 100A Twin Terminal Main Isolator and a factory fitted Surge Protection Device (pre wired and connected)
• 80A 30mA Type A RCDs
• Curved Visor with temporary locking facility
• Populated with 8 Type B Miniature Circuit Breakers (3x6A, 1x16A, 4x32A) and 1 blank

Wylex WNM1772/1 9 Way Fully Loaded Consumer Unit with SPD, MS, 2 RCDs & 8 MCBs Specifications:

Mounting method Surface mounted (plaster)
Number of phases 1
Protection Miniature- / earth leakage circuit breaker
Total number of groups 3
Number of poles main switch 2
Main switch rated current 100 A
Over voltage protection Yes
Material housing Steel
Degree of protection (IP) IP2XC
Height 261 mm
Width 343 mm
Width in number of modular spacings 16
Depth 121 mm
Extension possible No
With transparent cover No
Lockable Yes
Product Standard/s BS EN 61439-3
Frequency 50 Hz
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Amperage 100 A
Operating Voltage 230 V
Type of Current AC
Consumer Unit Type High integrity
Total final circuit modular ways 9
Busbar type Flexible
Main switch rating 100 A
Main switch final circuit modular ways 14

RCD 1 80A 30mA type A
RCD 1 final circuit modular ways Flexible
RCD 2 80A 30mA type A
RCD 2 final circuit modular ways Flexible
Surge protection device type 2
Colour RAL 9010
